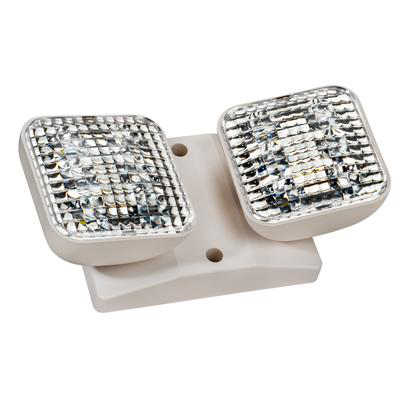

LED Emergency Light, Double Head, Remote Head - Emergency Lighting Solutions

The LED Emergency Light, Double Head, Remote Head by Southwire is designed as an accessory remote head to be used with the EL2/LED/WH/RC control unit. This product provides reliable emergency illumination for commercial, industrial, retail, and public spaces, supporting the needs of electrical distributors and lighting solutions providers. It is engineered for easy ceiling or wall installation where additional lamp heads are required to ensure safety during power outages. The unit features adjustable lamp heads for precise directional lighting and includes a battery backup to maintain illumination for 90 minutes in emergencies, complying with NFPA, UL, NEC, and OSHA standards.

Specifications

• Product Weight: 0.86 lbs
• Emergency Duration/Run Time: 90 minutes
• Recharge Time: 24 hours
• Frequency: 50/60 Hz
• Efficacy: Up to 110 LPW
• CRI: 80
• Mounting Options: Ceiling or wall mounting capable
• Emergency Light Housing: White, high impact, UL 94-5VA flame retardant injection mold thermoplastic with polycarbonate lens
• Remote Head Housing: White, high impact, UL 94-5VA flame retardant ABS
• AC Supply Test Button: Yes
• Location Rating: Damp
• Ambient Operating Temperature: 50°F to 104°F
• Battery Type: 3.6V, 1000mAh Ni-Cad
• Maximum Remote Head Load: 1.5 W
• Input Voltage: 3.6 VDC
• Input Wattage: 1.5 W
• Lumens Output: 150 lm

Features

• Powers double remote heads for customizable emergency lighting configurations
• Meets NFPA 70, NFPA 101, UL924, NEC, and OSHA standards
• 90-minute battery backup with accessible push-to-test button

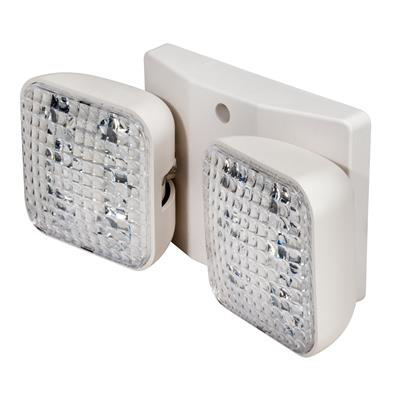

• Dual lamp heads track and swivel for full range of adjustability
• High impact, UL 94-5VA flame retardant housing for durability and safety

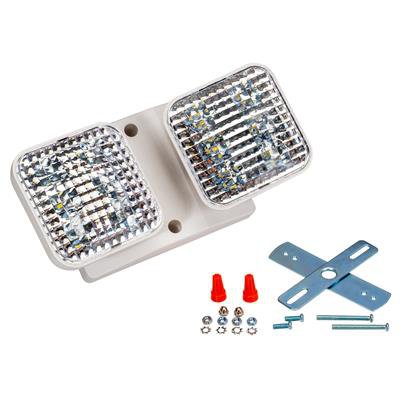

• Ceiling or wall mount capable with included hardware
• Designed for integration with EL2/LED/WH/RC control unit for expanded egress illumination

Downloads & Links

• Spec Sheet
• Installation sheet EL1-LED-WH-RH
