LED Compact Red Exit With Battery Backup
SKU: #185010
Part: #ES/LED/RW/B
UPC: 751338033481
LED Compact Red Exit With Battery Backup
SKU: #185010
Part: #ES/LED/RW/B
UPC: 751338033481
Next day delivery
Description
LED Compact Red Exit With Battery Backup - Emergency Lighting Solutions

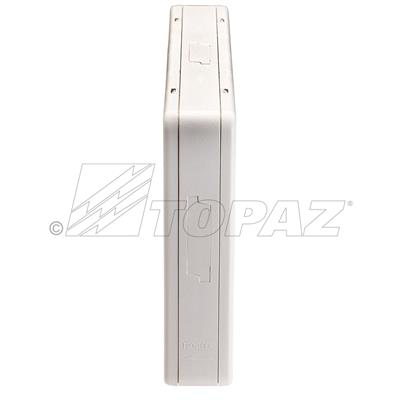

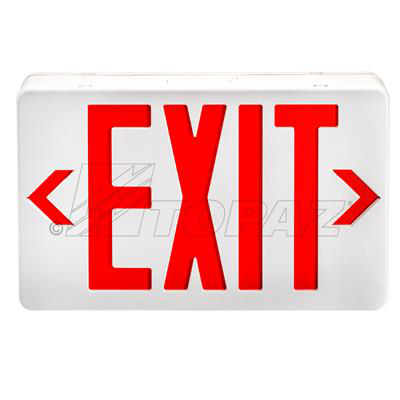

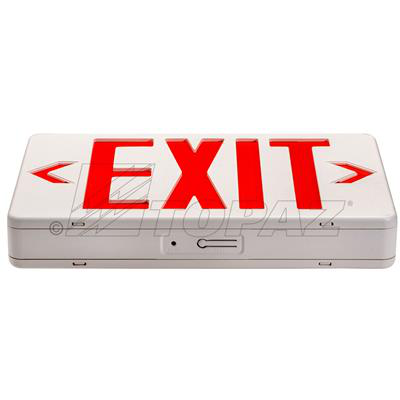

The LED Compact Red Exit with Battery Backup by Southwire is a low-profile, energy-efficient exit sign designed for emergency lighting in office, industrial, retail, and other public spaces. This OSHA-compliant unit features single or double face red EXIT letters that are 6 inches high with a 3/4 inch stroke, providing clear visibility. It includes a long-lasting Ni-Cad battery backup ensuring 90 minutes of essential illumination during power outages. Suitable for wall, ceiling, or side mounting, this product is ideal for electrical distributors and lighting solutions providers seeking reliable wire and cable accessories and switchgear supplier components.
Specifications
- Input Voltage: 120/277V dual voltage
- Frequency: 50/60 Hz
- Runtime: ≥ 90 minutes
- Recharge Time: 24 hours
- Battery Backup: Ni-Cad 2.4V 300mA
- Unit Weight: 2.2 lbs
- Dimensions: 11.8" x 1.8" x 7.3"
- Construction: Thermoplastic, 5VA flame retardant ABS housing
- Wet/Damp Location Rated
- Energy Used in Maintenance Mode: 2.5W
- Ambient Operating Temperature: 50°F to 104°F
- Red EXIT Letters: 6" height, 3/4" stroke
Features
- Single or double face LED exit sign with battery backup
- Energy efficient, low profile design
- Ceiling, wall, or side mounting capability with included canopy
- Test switch and AC supply indicator LED light
- Removable knockout chevron directional arrows
- 90-minute battery backup with accessible test button
- OSHA compliant and meets NFPA 70, NFPA 101, UL924, NEC standards
- Suitable for damp locations
- Includes mounting accessories and blank cover for single face conversion
