LED 8' Linear Strip CCT Selectable Lighting Solutions

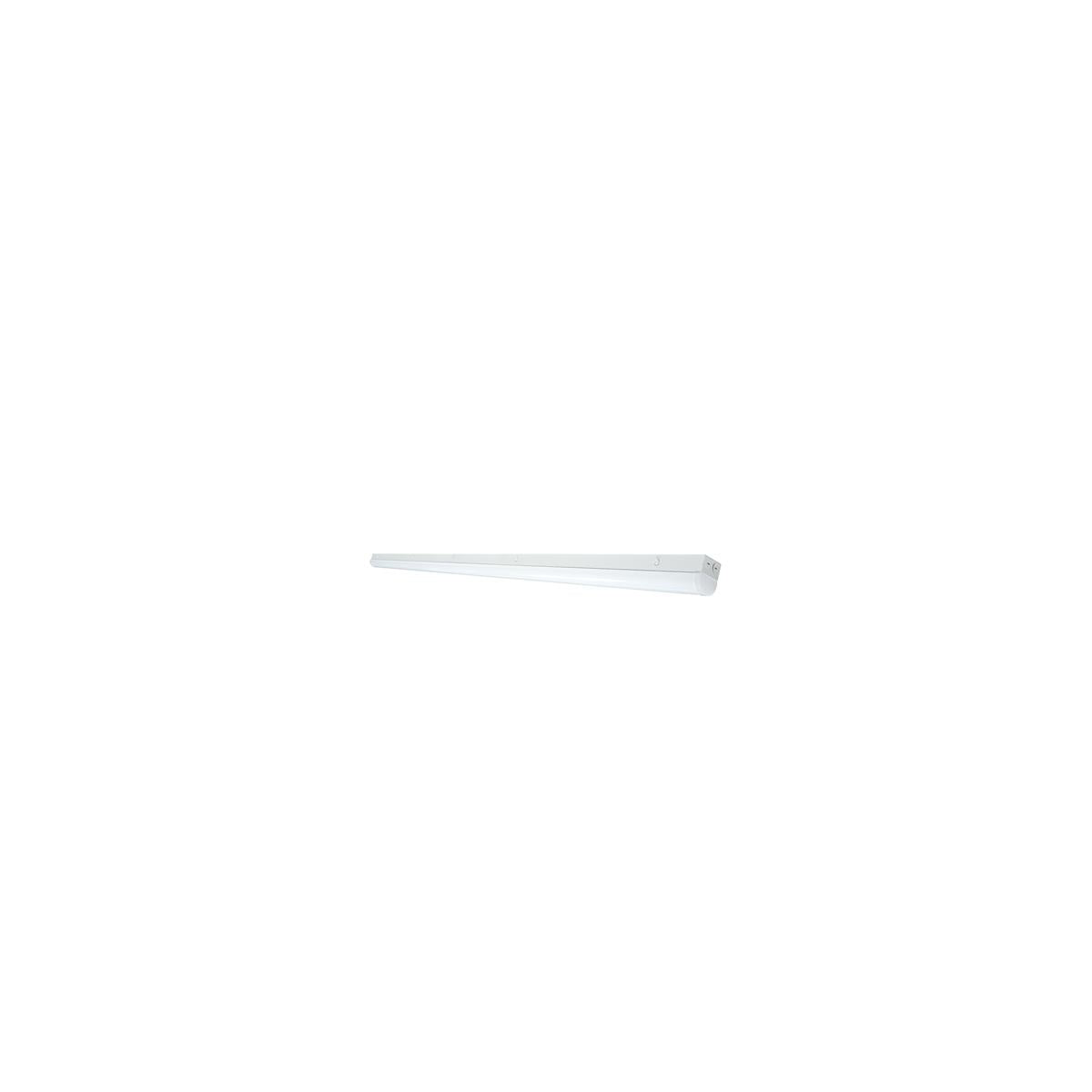

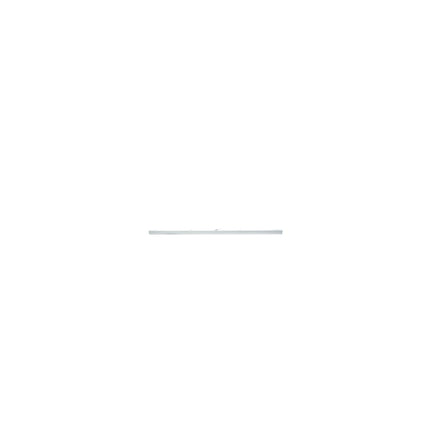

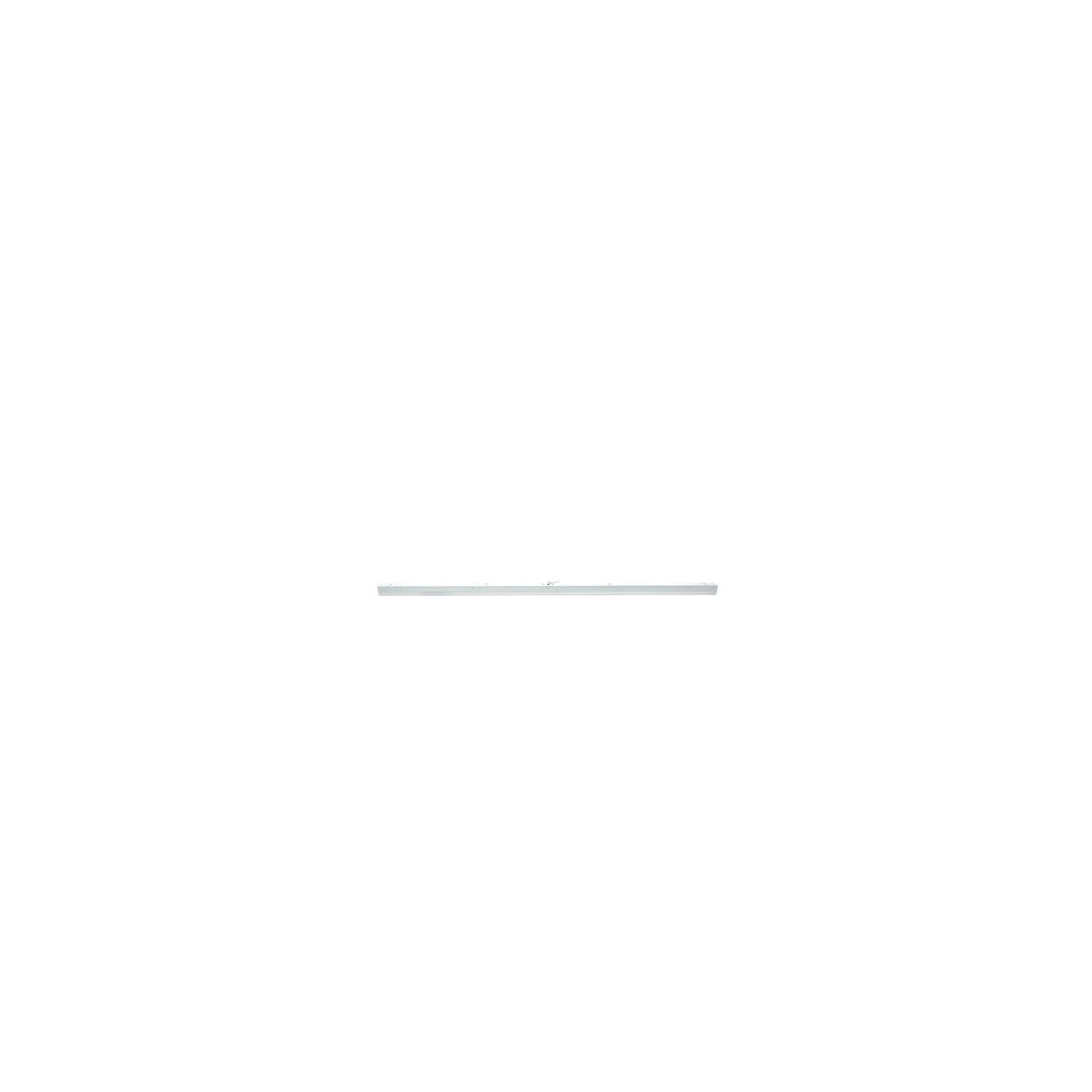

Topaz’s LED 8' Linear Strip CCT Selectable luminaires provide versatile lighting solutions for commercial and institutional applications. Designed for surface mount installation, these fixtures offer a selectable color temperature switch (3500K, 4000K, 5000K) to accommodate various environments such as healthcare facilities, offices, and retail locations. Suitable for mounting heights up to 15 feet, this product supports new construction and remodeling projects. It is ideal for electrical distributors and lighting solutions providers seeking reliable, energy-efficient linear lighting products.

Specifications

• Manufacturer Part #: F-L8/64W/CTS/D-87
• Input Voltage, Frequency: 120-277V, 50/60Hz
• Power Factor, THD %: <0.9, >20%
• Dimmable: 0-10V
• Efficacy: 140 LPW
• Minimum CRI: 84
• Functional Life (L70): 50,000 hours
• Color Temperature (CCT): 3500K, 4000K, 5000K selectable
• Beam Angle: 120°
• Wattage: 64W
• Lumens: 8,960 (at 4000K)
• Size: 95.98" (length) x 2.95" (width) x 3.26" (height)
• Weight: 7.2 lbs
• Location Rating: Damp
• Ambient Operating Temperature: -4°F to 104°F
• UPC: 751338036772

Features

• 3 CCT selectable switch: 3500K, 4000K, 5000K for application flexibility
• Press-to-release buttons for quick, tool-less access to wiring compartment
• Includes (2) ½" knockouts on each side panel for easy wiring
• Surface mount ready with included J-box cover plate
• End-to-end mounting and suspension mount kits sold separately
• Suitable for mounting heights up to 15 feet
• Compatible with 0-10V dimming control systems
• Emergency battery backup and motion sensor models available
• Energy-efficient with 140 lumens per watt efficacy
• Damp location rated for indoor use

Downloads & Links

• Indoor Fixtures Dimmer Compatibility
• Spec Sheet
• IES FILE- F-L8-64W-CTS-D-87.ies
• LM79 FILE- F-L8-64W-CTS-D-87
• End to end connector installation sheet
• Suspending cable installation sheet
