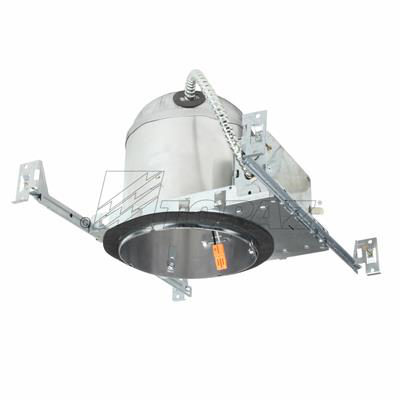

LED 6" New Construction Housing – LED Recessed Lighting

Topaz’s LED 6" New Construction Housing is designed for residential and commercial lighting applications, providing a reliable solution for new construction projects requiring IC rated and Air Tight recessed housings. This product is ideal for electrical distributors and lighting solutions providers looking for durable wire and cable housing compatible with a wide range of LED trim kits. It supports line voltage and features a quick connect system for efficient installation.

Specifications

• Material: Galvanized Steel
• Mounting: Bar Hanger
• Lamp Type: LED
• Dimensions: 6-3/8 x 7-3/8 IN
• Aperture Size: 6 IN
• Compatibility: All Retrofit Kits
• Product Weight: 2.1083 lbs
• Application: Residential and Commercial Lighting
• Manufacturer Part #: RH6/NLED/IC/AT-28
• UPC: 751338097605

Features

• IC rated and Air Tight to meet local building code requirements
• Quick connect for fast installation of a wide array of Topaz LED trim kits
• Galvanized steel plaster frame construction, removable for junction box access
• Bar hangers adjustable from 13-5/8" to 25" and repositionable 90 degrees
• Junction box listed for through branch circuit wiring with seven 7/8" knockouts and four Romex pryouts with strain relief
• cULus Listed for feed-through wiring
• Certified under ASTM - E283 for Air Tight Construction
