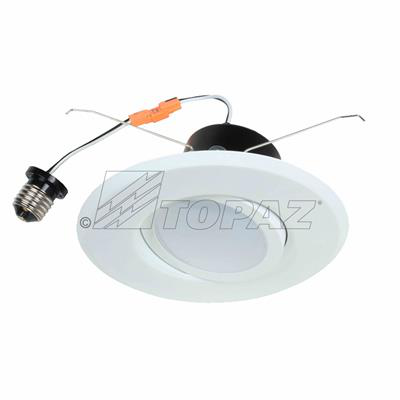

LED 5"/6" Gimbal Retrofit Unit - 4000K LED Recessed Lighting

The LED 5"/6" Gimbal Retrofit Unit by Southwire is a high-performance, energy-efficient solution designed for recessed lighting retrofit applications. Suitable for wet and damp locations, this unit provides superior lighting quality with a 90 CRI for exceptional color rendering at a color temperature of 4000K. It is ideal for electrical distributors and lighting solution providers seeking reliable LED retrofit options that reduce energy consumption and maintenance costs. The retrofit unit is compatible with standard recessed housings and offers dimmable control down to 5%, ensuring optimal lighting flexibility for residential, hospitality, office, and multi-family applications.

Specifications

• Manufacturer Part #: RTL/647WH/90/D-28
• Lamp Type: LED
• Fixture Type: Recessed Lighting
• Lumens: 1100 LM
• Color Temperature: 4000K
• CRI: 90
• Average Life: 50,000 HR
• Mounting: Screw Mount
• Application: Wet Location, Damp Location
• Product Weight: 11.25 lbs
• Input Voltage: 120V, 50/60Hz
• Power Factor: >0.9
• Dimmable: to 5%
• Base: E26
• Ambient Operating Temperature: -4°F to 113°F
• Finish: White
• Energy Star Certified

Features

• High efficacy LED light source compliant with California Title 20 and 24, part 6
• Exceptional color rendering with 90 CRI
• Designed for use in insulated or non-insulated ceilings
• Airtight certified per ASTM E283
• Quick connect power system for easy installation
• Compatible with most leading-edge dimmers, dimmable down to 5%
• Light can be rotated 22° vertically and 355° horizontally for directional lighting
• ENERGY STAR and UL Listed for wet and damp locations
• Retrofit units reduce energy and maintenance costs with a rated life of up to 50,000 hours
