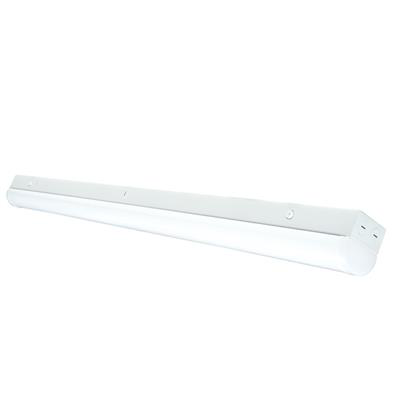

LED 4’ Linear Strip CCT Selectable with Motion Sensor
SKU: #185816
Part: #F-L4/40W/CTS/MS-87
UPC: 751338036765
LED 4’ Linear Strip CCT Selectable with Motion Sensor
SKU: #185816
Part: #F-L4/40W/CTS/MS-87
UPC: 751338036765
Next day delivery
Description
LED 4’ Linear Strip CCT Selectable with Motion Sensor – LED Linear Strip Lighting Solutions
The Southwire LED 4’ Linear Strip CCT Selectable with Motion Sensor is designed for commercial lighting applications, providing adaptable and energy-efficient illumination. This fixture features a 3-CCT selectable switch allowing easy selection of 3500K, 4000K, or 5000K color temperatures to match various environments such as healthcare, offices, and retail spaces. Equipped with a motion sensor and press-to-release buttons, it enables quick, tool-less access to the wiring compartment for efficient installation. Suitable for surface mounting with no gap, this luminaire supports new construction or remodeling projects and is ideal for use by electrical distributors, lighting solution providers, and switchgear suppliers focusing on wire and cable integration.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: F-L4/40W/CTS/MS-87
- Input Voltage: 120-277V, 50/60Hz
- Power Consumption: 40W
- Luminous Flux: 5,600 lumens (at 4000K)
- Input Current: 0.367A @ 120V
- Beam Angle: 120°
- Color Temperature Selectable: 3500K, 4000K, 5000K
- CRI: Minimum 84
- Efficacy: 140 LPW
- Dimensions: 48.03" (L) x 2.95" (W) x 3.26" (H)
- Weight: 4.0 lbs
- Functional Life: 50,000 hours (L70)
- Mounting: Surface mount ready; end-to-end mounting and suspension kits sold separately
- Ambient Operating Temperature: -4°F to 104°F
- Location Rating: Damp
- UPC: 751338036765
Features
- 3 CCT selectable switch for 3500K, 4000K, and 5000K color temperatures
- Integrated motion sensor, pre-programmed with adjustable settings
- Press-to-release buttons for quick, tool-less wiring compartment access
- Includes (2) ½" knockouts on each side panel for wiring flexibility
- Designed for direct surface mount with included J-box cover plate
- Supports mounting heights up to 15 feet
- Emergency battery backup and motion sensor models available
- Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5) for closet use
