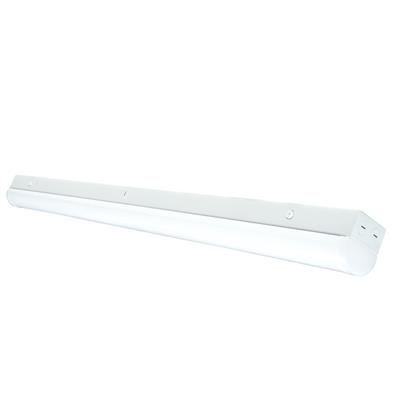

LED 4’ Linear Strip CCT Selectable - LED Lighting Solutions

Topaz’s LED 4’ Linear Strip CCT Selectable luminaires provide versatile lighting with a 3-CCT selectable switch allowing users to choose between 3500K, 4000K, and 5000K color temperatures. Designed for direct surface mounting with no gap and equipped with press-to-release buttons, these fixtures enable quick, tool-less access to the wiring compartment. Ideal for new construction or remodeling in commercial settings such as healthcare facilities, offices, and retail locations, this product supports efficient lighting solutions for electrical distributors and switchgear suppliers.

Specifications

• Product Weight: 33.2 lbs
• Manufacturer: Southwire
• Manufacturer Part #: F-L4/40W/CTS/D-87
• UPC: 751338036741
• Luminous Flux: 5479.7 Lumens (3500K setting)
• Input Voltage: 120 V
• Input Power: 38.99 W
• Power Factor: 0.992
• Frequency: 60 Hz
• Total Efficacy: 140.5 lm/W
• Downward Flux: 4578 Lumens (83.5% of total)
• Input Current: 0.3272 A

Features

• 3-CCT selectable switch for 3500K, 4000K, and 5000K color temperatures
• Direct surface mount with no gap for seamless installation
• Press-to-release buttons enable tool-less wiring compartment access
• Quick installation suitable for healthcare, office, and retail environments
• Formed steel housing with white enamel finish and translucent white plastic enclosure
• 504 white LEDs on a single LED board with high luminous efficacy
• Compatible with suspended cable kits for flexible mounting options (refer to Topaz suspended cable kit instructions)

Downloads & Links

• LM79 FILE- F-L4-40W-CTS-D-87
• Suspending cable installation sheet
• End to end connector installation sheet
• Spec Sheet
• Indoor Fixtures Dimmer Compatibility
• IES FILE- F-L4-40W-CTS-D-87.ies
