LED 2'x2' Flat Panel with Battery Backup, 30W - 4000K
SKU: #185541
Part: #F-L22/30/40K/D/BL/EM
UPC: 751338035225
LED 2'x2' Flat Panel with Battery Backup, 30W - 4000K
SKU: #185541
Part: #F-L22/30/40K/D/BL/EM
UPC: 751338035225
Next day delivery
Description
LED 2'x2' Flat Panel with Battery Backup, 30W - 4000K Lighting Solutions

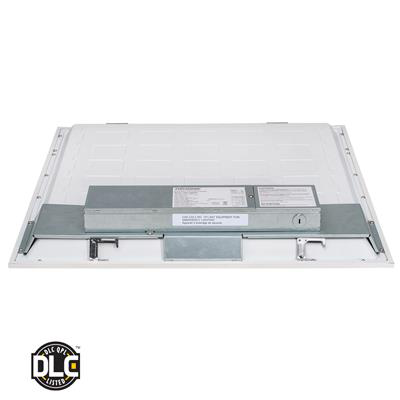

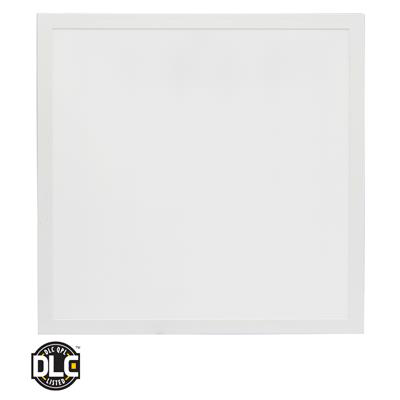

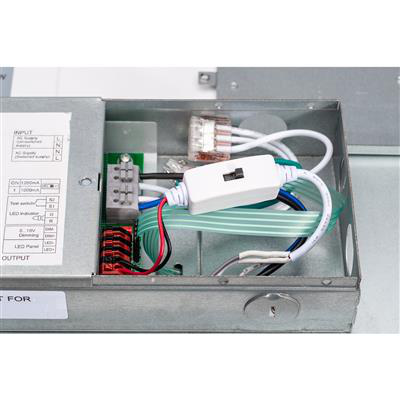

Topaz’s LED 2'x2' Flat Panel with Battery Backup is a 30W, 4000K luminaire designed for commercial lighting applications. This next-generation flat panel offers emergency battery backup providing 90 minutes of emergency illumination, making it suitable for offices, healthcare facilities, and other commercial environments. The fixture features a low-profile design with an integrated driver, optimized for both insulated and non-insulated ceiling installations. It delivers uniform, glare-free light distribution with precision optics, ensuring reliable performance and energy efficiency for new construction or remodel projects. This product is ideal for electrical distributors and switchgear suppliers seeking dependable lighting solutions with long functional life and low maintenance requirements.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: F-L22/30/40K/D/BL/EM
- Power: 30W
- Color Temperature: 4000K

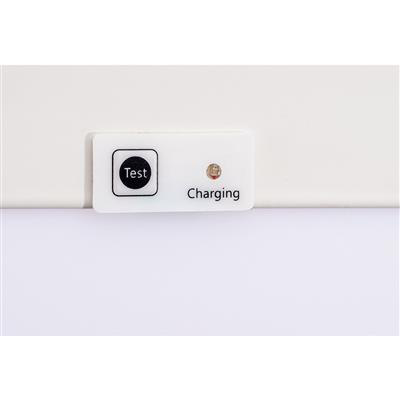

- Emergency Battery Backup: Yes, 8W, 1,000 lumens, >90 minutes
- Input Voltage: 120-277V, 50/60Hz
- Power Factor: >0.9
- Total Harmonic Distortion (THD): <20%
- Dimmable: Yes, 0-10V dimmer, 100% to 10% range
- Beam Angle: 120°
- CRI: 80
- Functional Life (L70): 50,000 hours
- Location Rating: Damp
- Ambient Operating Temperature: -10°F to 110°F
- IC Rated: Yes
- Dimensions: 23.7" L x 23.7" W x 2.8" D
- Weight: 7.8 lbs
- UPC: 751338035225
Features
- Low profile design with lightweight construction for easy installation
- Precision optics providing uniform and glare-free light distribution
- White frame with steel housing and PMMA optical lens
- Compatible with insulated and non-insulated ceilings
- Emergency battery backup models provide reliable 90-minute emergency lighting
- High efficacy up to 110 lumens per watt
- Up to 25% lighter than traditional fixtures
- Multiple mounting options including T-grid drop ceiling, suspension, and surface mount
- Dimmable with standard 0-10V control systems and compatible with leading dimmer brands
