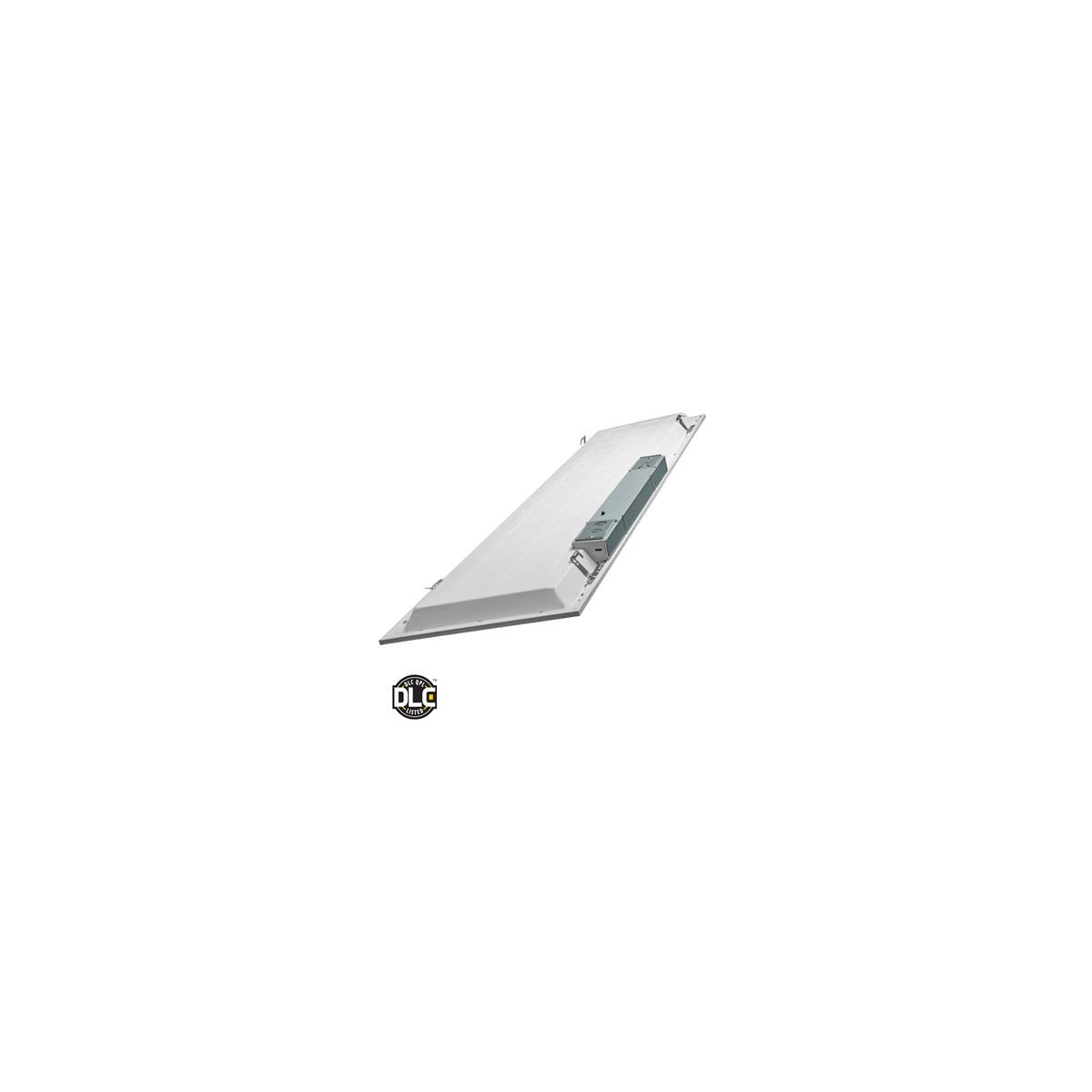

LED 1'x4' Flat Panel CCT Selectable, 30W, DLC Qualified
SKU: #185463
Part: #F-L14/30/CTS/D/BL-86
UPC: 751338035126
LED 1'x4' Flat Panel CCT Selectable, 30W, DLC Qualified
SKU: #185463
Part: #F-L14/30/CTS/D/BL-86
UPC: 751338035126
Total Price: $46.96 per each Sold in increments of 1 each
Description
LED 1'x4' Flat Panel CCT Selectable, 30W, DLC Qualified - LED Lighting Solutions
The LED 1'x4' Flat Panel CCT Selectable, 30W, DLC Qualified by Southwire is designed for efficient, versatile lighting in commercial applications. This low-profile panel delivers 3,300 lumens with selectable color temperatures of 3500K, 4000K, and 5000K, making it suitable for offices, healthcare facilities, and other commercial spaces. Rated for both insulated and non-insulated ceilings, it supports various mounting options including T-grid drop ceiling, suspension, and surface mount. Its precision optics ensure uniform light distribution and glare-free illumination. With a long functional life of 50,000 hours, this panel offers a low-maintenance solution ideal for new construction or remodel projects, and is compatible with dimming controls for energy savings.
Specifications
- Manufacturer: Southwire
- Manufacturer Part Number: F-L14/30/CTS/D/BL-86
- Lumens: 3,300
- Wattage: 30W
- Color Temperature: 3500K, 4000K, 5000K (CCT Selectable)
- Beam Angle: 120°
- Input Voltage: 120-277V, 50/60Hz
- Power Factor: 0.9
- THD: <20%
- Dimmable: Yes, 0-10V dimming from 100% to 10%
- Emergency Backup Compatible: Yes, 8W, 1,000 lumens, >90 minutes
- CRI: 80
- Functional Life (L70): 50,000 hours
- Location Rating: Damp
- Ambient Operating Temperature: -10°F to 110°F
- IC Rated
- Mounting Options: T-grid drop ceiling, suspension, surface mount
- Product Weight: 6.175 lbs
- UPC: 751338035126
Features
- 3 CCT selectable switch: 3500K, 4000K, 5000K for versatile lighting needs
- Low-profile, lightweight design for easy installation and handling
- Precision optics for uniform and glare-free light distribution
- White frame with steel housing and PMMA optical lens
- Suitable for insulated and non-insulated ceiling applications
- Compatible with emergency battery backup models
- Up to 25% lighter than traditional fixtures, reducing installation labor
- High efficacy up to 130 lumens per watt
- Dimmable with standard 0-10V dimmers including Leviton IP710, DS710, and Lutron DVSTV
