Description

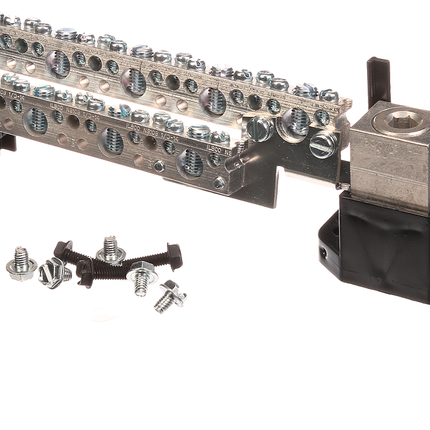

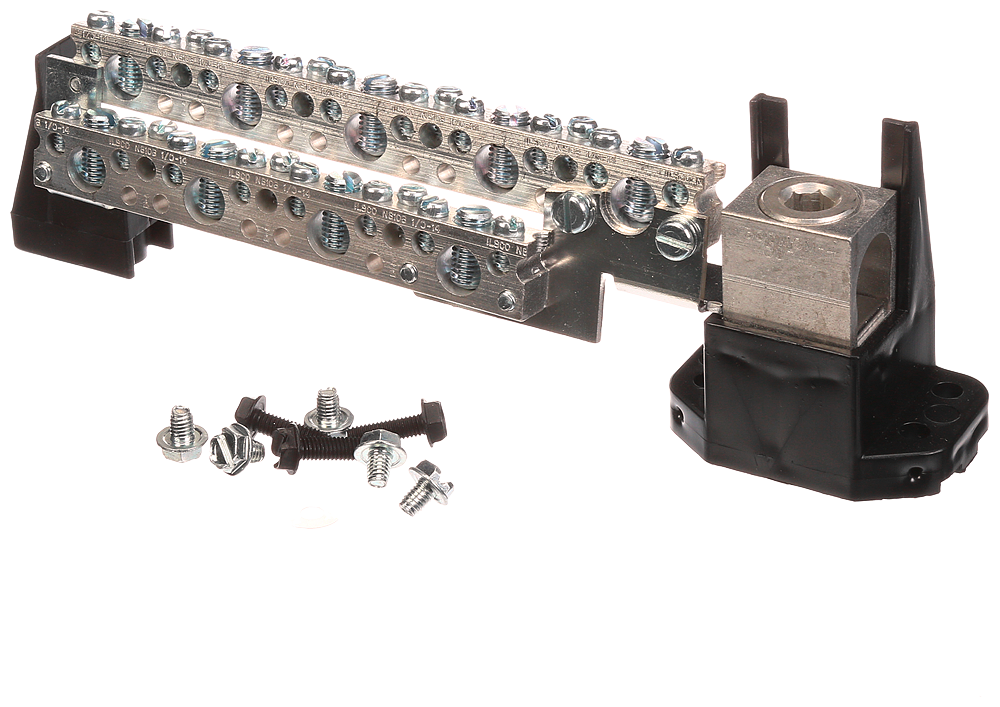

LC BOND BAR 14 SMALL 5 LARGE Ground Bar Kit
The Siemens LC BOND BAR 14 SMALL 5 LARGE is a grounding bar designed for use in low voltage residential specialty load centers. It serves as a critical component for grounding electrical systems, ensuring safe and reliable connections in residential electrical distribution. This product is suitable for electrical distributors and switchgear suppliers providing lighting solutions and wire and cable accessories.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: ECLX073M
- Country of Origin: Mexico
- Connectors: 14 small and 5 large
- Connector Ratings: Large connectors rated for one #14-1/0 or 2-3 #14-10; small connectors rated for one #14-6 or two #14-12
- Length: 5.75 in
- Width: 7.55 in
- Height: 1.45 in
- Product Weight: 0.26 lbs
- UPC: 783643452688
- Order Minimum: 1 unit
Features
- Designed specifically for Siemens low voltage residential load centers
- Supports multiple conductor sizes for flexible wiring configurations
- Robust construction suitable for grounding aluminum and copper conductors
- Includes mounting bracket and screws for secure installation
- Complies with recommended torque specifications for secure connections
