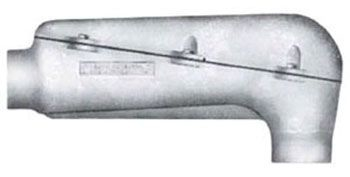

LBDN350M IMC/Rigid Conduit Pulling Fitting - Conduit Pulling Solutions

The Appleton™ LBDN350M IMC/Rigid Conduit Pulling Fitting is designed to facilitate the pulling of large, heavy, and difficult-to-bend conductors in electrical installations. This fitting enables 90-degree bends in conduit runs while providing straight pull-through capability via hubs in either direction. It is suitable for use by electrical distributors and contractors specializing in wire and cable management and conduit installation.

Specifications

• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Installation: Threaded
• Product Weight: 45.56 lbs
• Manufacturer: Appleton
• Manufacturer Part #: LBDN350M
• UPC: 781381474610

Features

• Facilitates pulling of large, heavy, and difficult-to-bend conductors
• Designed to make 90 degree bends in conduit
• Provides straight pull-through via hubs in either direction
• Durable zinc electroplated and epoxy powder coated finish for corrosion resistance
• Threaded installation ensures secure and reliable conduit connection

Downloads & Links

• Other 1
• Warranty
• Catalog
