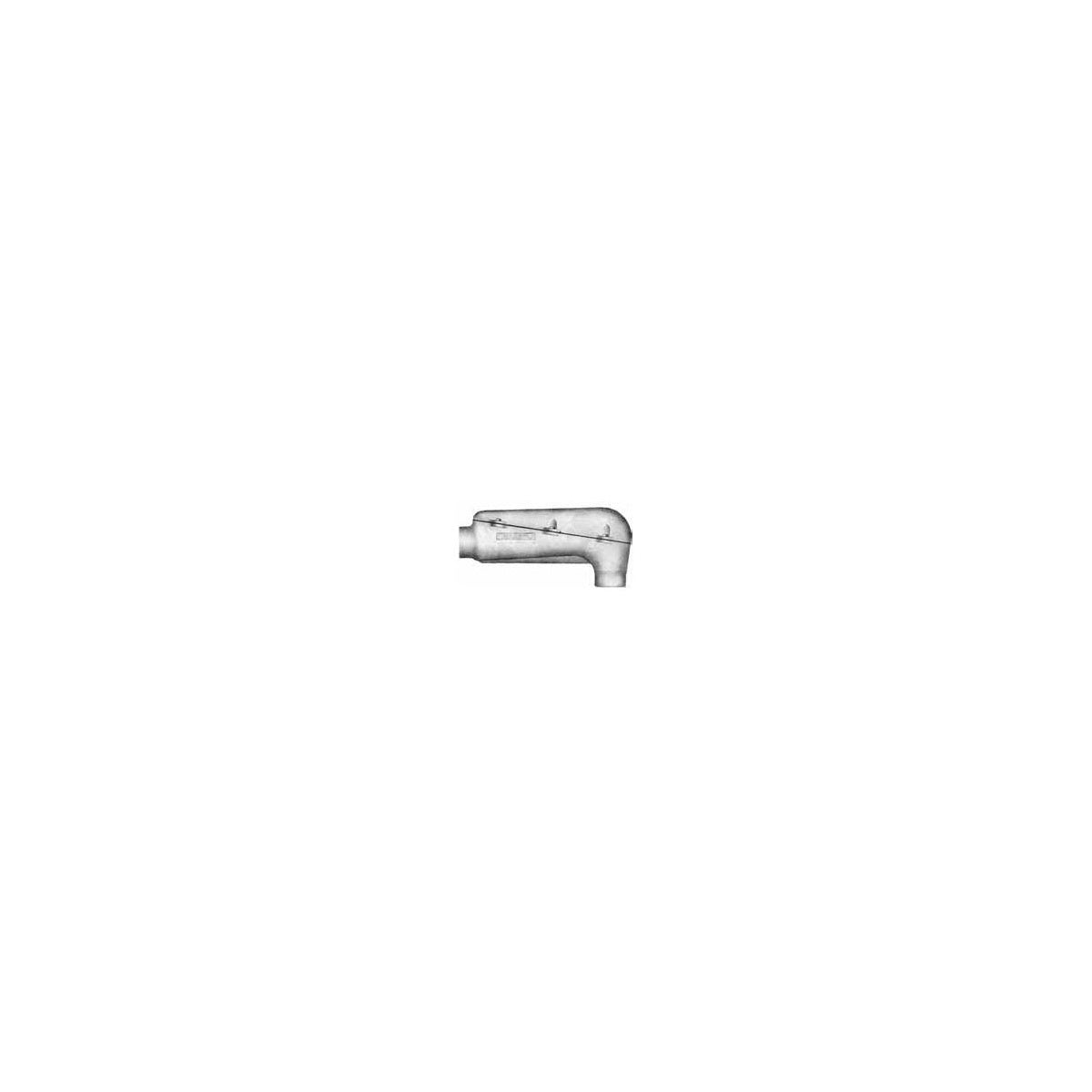

LBDN250A, IMC/Rigid Conduit Pulling Fitting - Electrical Distributor Conduit Solutions

The LBDN250A is a 2-1/2 inch trade size IMC/Rigid conduit pulling fitting designed for commercial and industrial electrical installations. It facilitates 90-degree bends with a straight pull-through hub in either direction, making it ideal for heavy and difficult-to-bend conductors. This fitting is suitable for use by electrical distributors and switchgear suppliers handling wire and cable systems requiring durable conduit solutions. It includes a gasketed cover to ensure secure sealing and is compliant with NEC and CEC standards.

Specifications

• Material: Epoxy Powder Coated Aluminum (Body/Cover), Neoprene (Gasket)
• Installation: Back Opening
• Bend Angle: 90 Degree
• Dimensions: 17.88 Inch Length x 5.88 Inch Width x 8 Inch Height
• Wiring Capacity: 210 Cubic Inch
• Approval: UL 514B, CSA C22.2
• Product Weight: 8.32 lbs
• Applicable Standard: NEC/CEC

Features

• Designed as a pulling fitting for heavy, difficult-to-bend conductors
• Allows 90¬∞ bends in conduit with straight pull-through hubs in either direction
• Includes gasketed cover for environmental protection
• Suitable for use with IMC and rigid metal conduit systems
• Certified to UL Standard 514B and CSA Standard C22.2 No. 30

Downloads & Links

• Catalog
