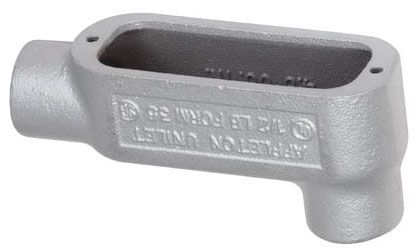

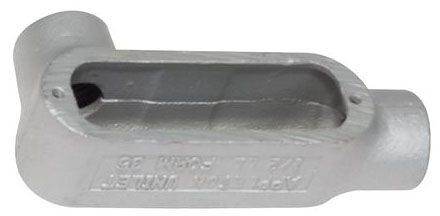

LB100M, IMC/Rigid Conduit Outlet Body – Malleable Iron Conduit Outlet Body

The Appleton LB100M IMC/Rigid Conduit Outlet Body is a Form 35‚Ñ¢ malleable iron conduit body designed for use with rigid steel, rigid aluminum, and IMC conduit systems. This threaded conduit outlet body serves as a critical component for electrical distributors and switchgear suppliers, enabling connection, direction changes, and branch runs in conduit installations. It also facilitates conductor pulling, splicing, and maintenance access, making it an essential fitting in lighting solutions and wire and cable systems.

Specifications

• Manufacturer: Appleton
• Manufacturer Part #: LB100M
• Material: Chromate finish on malleable iron body
• Installation: Threaded
• Product Weight: 1.39 lbs

Features

• Constructed from high tensile strength malleable iron with chromate finish for corrosion resistance and durability
• Threaded installation ensures tight, rigid joints with excellent ground continuity
• Serves as a conduit body for making bends, connecting branch runs, and providing access for conductor pulling and splicing
• Compatible with rigid steel, rigid aluminum, and IMC conduit systems
• Designed to meet NEC and CEC standards, suitable for hazardous locations Class I, Division 2 per NEC 501.10(B)(4)

Downloads & Links

• Other 1
• Catalog
• Warranty
