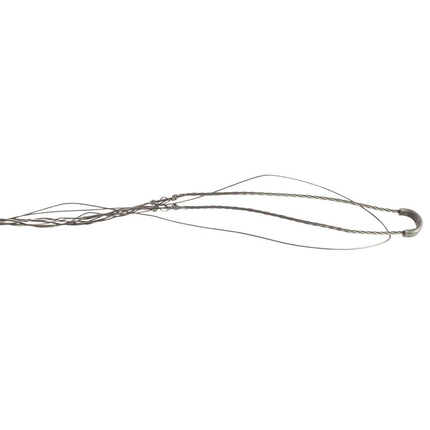

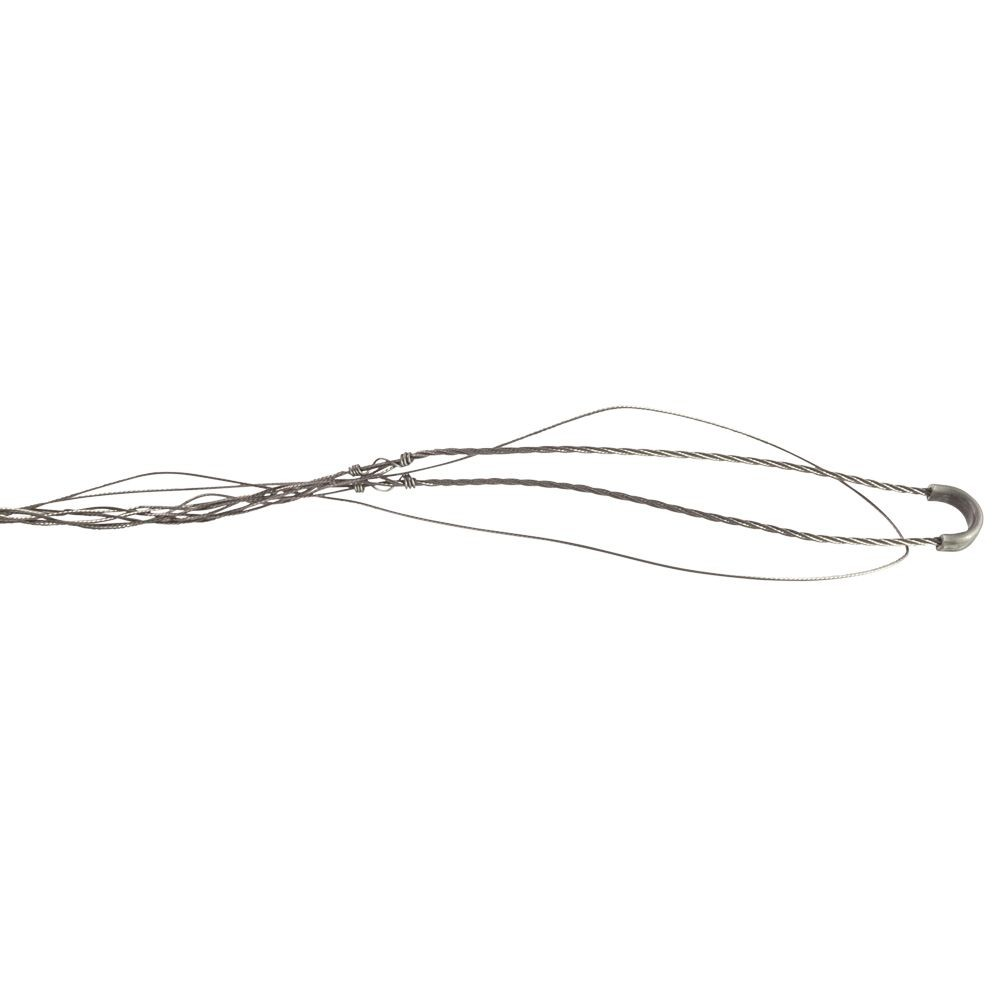

Lace Closing Support Grip SS, Single Eye, Single Weave – Wire Mesh Grip for Electrical Applications

This Lace Closing Support Grip is designed for use in electrical distribution and lighting solutions where reliable cable support and strain relief are required. Manufactured from stainless steel, it provides durable, non-magnetic, tinned bronze wire construction that absorbs strain and flexing while resisting cable pull-out and vibration. Suitable for permanent support applications, it is ideal for suspension or pulling tasks where neither end of the conductor is accessible. This product fits cable ranges from 0.50 to 0.66 inches.

Specifications

• Manufacturer Part #: 2202-013R
• Material: Stainless Steel
• Cable Range: 0.500 - 0.620 inches
• Approximate Breaking Strength: 530 lbs.
• Eye Length: 7 inches
• Mesh Length: 10 inches
• Dimensions (L x W x H): 17 x 0.745 x 0.745 inches
• Product Weight: 0.3260 lbs.
• UPC: 785411814032
• Country of Origin: United States
• Made in USA: Yes

Features

• Woven with non-magnetic, tinned bronze wire for strain absorption and flex resistance
• Resists cable pull-out, flexing, and vibration
• Best gripping ability among split type grips
• Suitable for permanent support applications and all phases of suspension or pulling
• Can be used where flexing occurs, unlike rod closing split grips

Downloads & Links

• Spec Sheet
