Product Information

• Abbrev. With Packaging Info.: L58W/840 25/CS 1/SKU

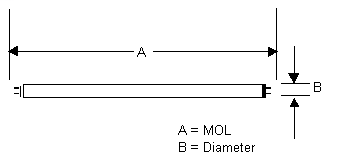

• Actual Length (in): 59.614
• Mean Lumens at 25C: 4785
• Base: Medium Bipin
• Actual Length (mm): 1514.20
• Diameter (mm): 28.00
• Average Rated Life (hr): 20000
• Industry Standards: CEI & IEC 60081 1997
• Nominal Wattage (W): 58.00
• Nominal Length (mm): 1514.09
• Diameter (in): 1.102
• Initial Lumens at 25C: 5200
• Bulb: T8
• Nominal Length (in): 59.610

Additional Product Information

Packaging Information

• Case Cube (ft): 1.271
• Cases/Pallet: 49
• Case Depth (in): 62.200
• Case Weight (lbs): 14.700
• Case Width (in): 5.790
• Case Length (in): 6.100
• SKU Qty: 1
• SKU's/Case: 25
• Case Qty: 25
• Pallet Qty: 1225
• SKU's/Pallet: 1225
• SKU UPC: 046135247293

Product Documents, Graphs, and Images

Footnotes

• Approximate initial lumens after 100 hours operation.

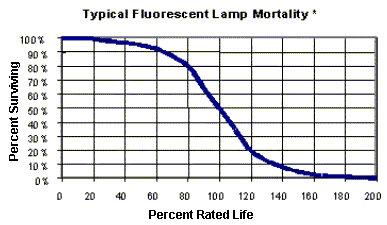

• The life ratings of fluorescent lamps are based on 3 hr. burning cycles under specified conditions and with ballast meeting ANSI specifications. If burning cycle is increased, there will be a corresponding increase in the average hours life.
• Minimum starting temperature is a function of the ballast; consult the ballast manufacturer.
