L-shaped fan and fixture vapor box. 70lb fan, 200lb fixture rated for 1/2" or 5/8" drywall. 25.0 cu. 2 Hour Fire Rating. Flange forms a protective barrier against air infiltration.
SKU: #390643
Part: #FB442FD
UPC: 018997762214
L-shaped fan and fixture vapor box. 70lb fan, 200lb fixture rated for 1/2" or 5/8" drywall. 25.0 cu. 2 Hour Fire Rating. Flange forms a protective barrier against air infiltration.
SKU: #390643
Part: #FB442FD
UPC: 018997762214
Description

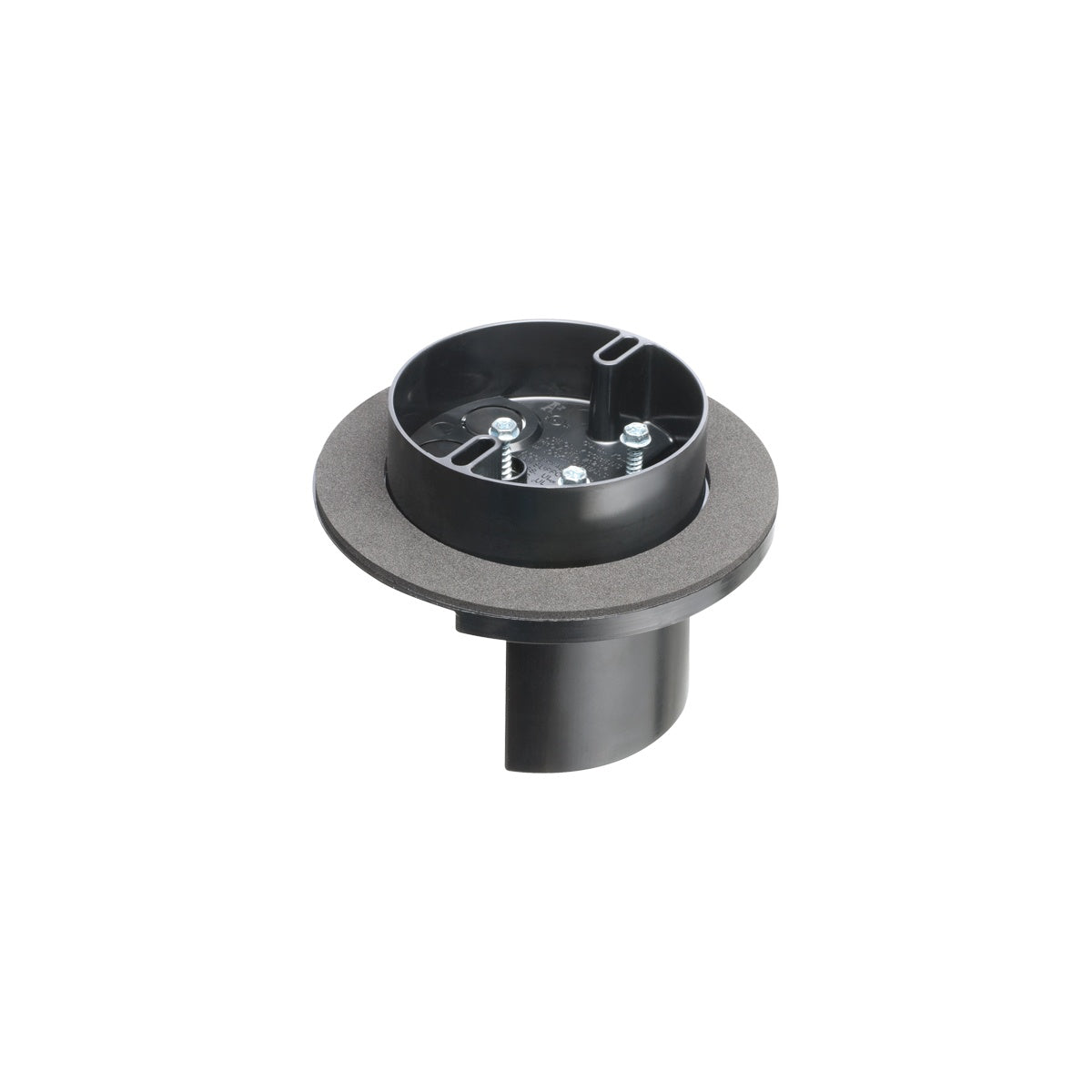

L-shaped Fan and Fixture Vapor Box by Arlington Industries
This L-shaped fan and fixture vapor box is designed for secure joist mounting in new construction applications, suitable for electrical distributors and lighting solutions providers. It supports fan and fixture installations with a 70 lb fan and 200 lb fixture rating and is compatible with 1/2" or 5/8" drywall. The vapor box features a built-in flange that forms a protective barrier against air infiltration, helping to maintain building envelope integrity and meet residential codes.
Specifications
- Material: Plastic
- Color: Black
- Drywall Compatibility: 1/2" or 5/8"
- Fire Rating: 2 Hour
- Volume: 25.0 Cubic Inches
- UL Ratings: 70 lb fan, 200 lb fixture
- CSA Ratings: 50 lb fan or fixture
- Mounting Style: Joist mount with shipped-in-place center screw
- Product Weight: 0.3890 lbs
- Manufacturer Part Number: FB442FD
Features
- Economical L-shaped design for fan and fixture applications
- Flange with gasket attached to prevent air infiltration
- NM cable connectors and flange with gasket material pre-installed
- Fan/fixture bracket installation screws ship captive for ease of installation
- Non-metallic and non-conductive construction
- Mounts securely to wood or steel joists
- UL and CSA listed for safety and performance
- Patented design with other patents pending
