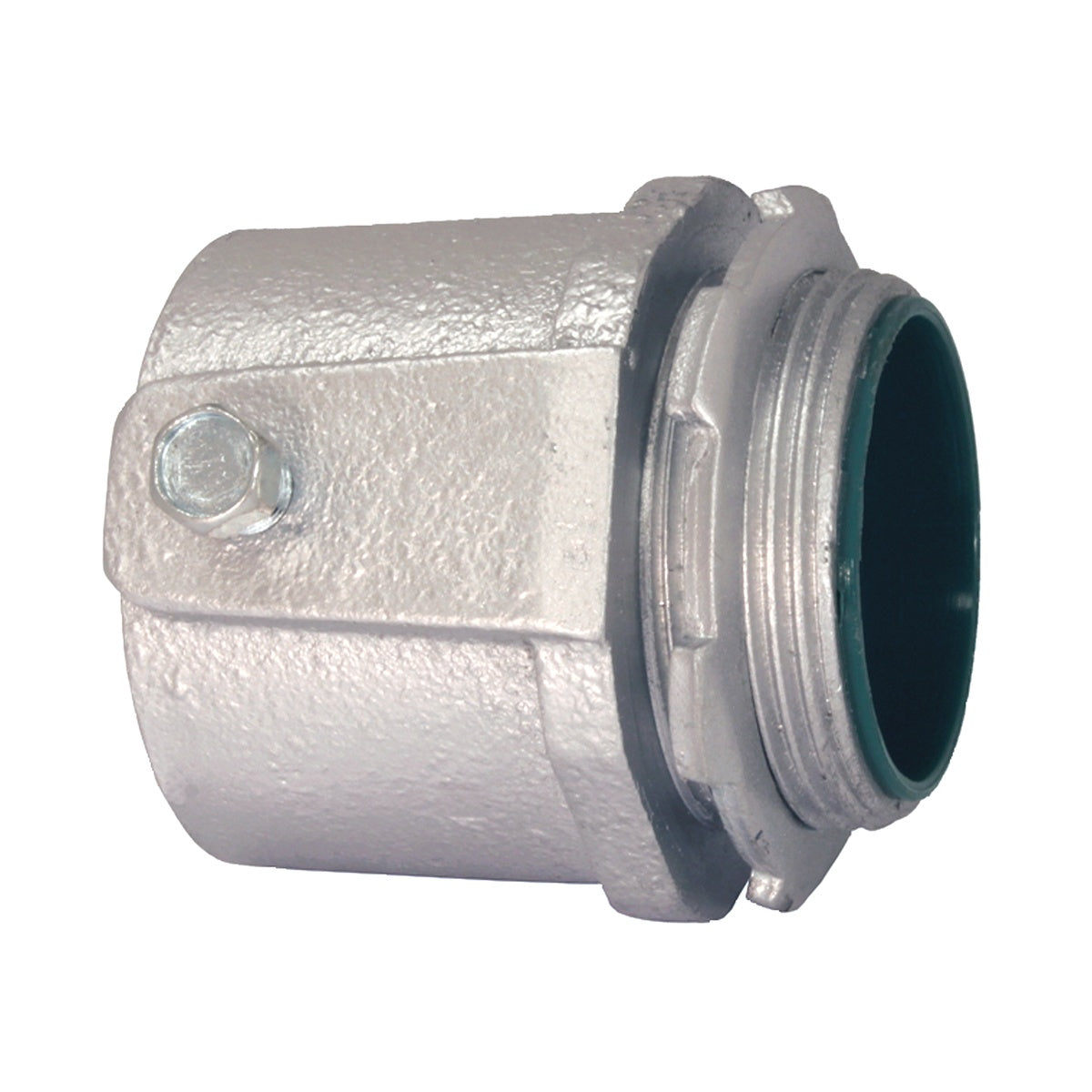

KON RSC75-ICKON 3/4" SSCR RGD CONN T Rigid Conduit Connector

The KON RSC75-ICKON is a set screw rigid connector designed for threadless rigid conduit and intermediate metal conduit (IMC) applications. Manufactured by Allied Fittings, this connector features an insulated throat for enhanced electrical safety and is suitable for use by electrical distributors and switchgear suppliers requiring reliable conduit connections in lighting solutions and wire and cable installations.

Specifications

• Manufacturer Part #: RSC75-ICKON
• Trade Size: 3/4"
• Dimension A: 1.688 in
• Dimension B: 0.563 in
• Dimension C: 1.563 in
• Weight per Connector: 0.2670 lbs
• Country of Origin: China
• UPC: 842136103190

Features

• Insulated throat for electrical safety
• Concrete tight when taped
• Threadless set screw design for rigid conduit and IMC
• RoHS compliant
• Standard finish: Zinc plated
• Material: Malleable iron with steel locknut
• Meets UL Standard 514B, Fed. Spec. W-F-408E, and NEMA FB-1
• UL Listed File # E207875

Downloads & Links

• Spec Sheet
