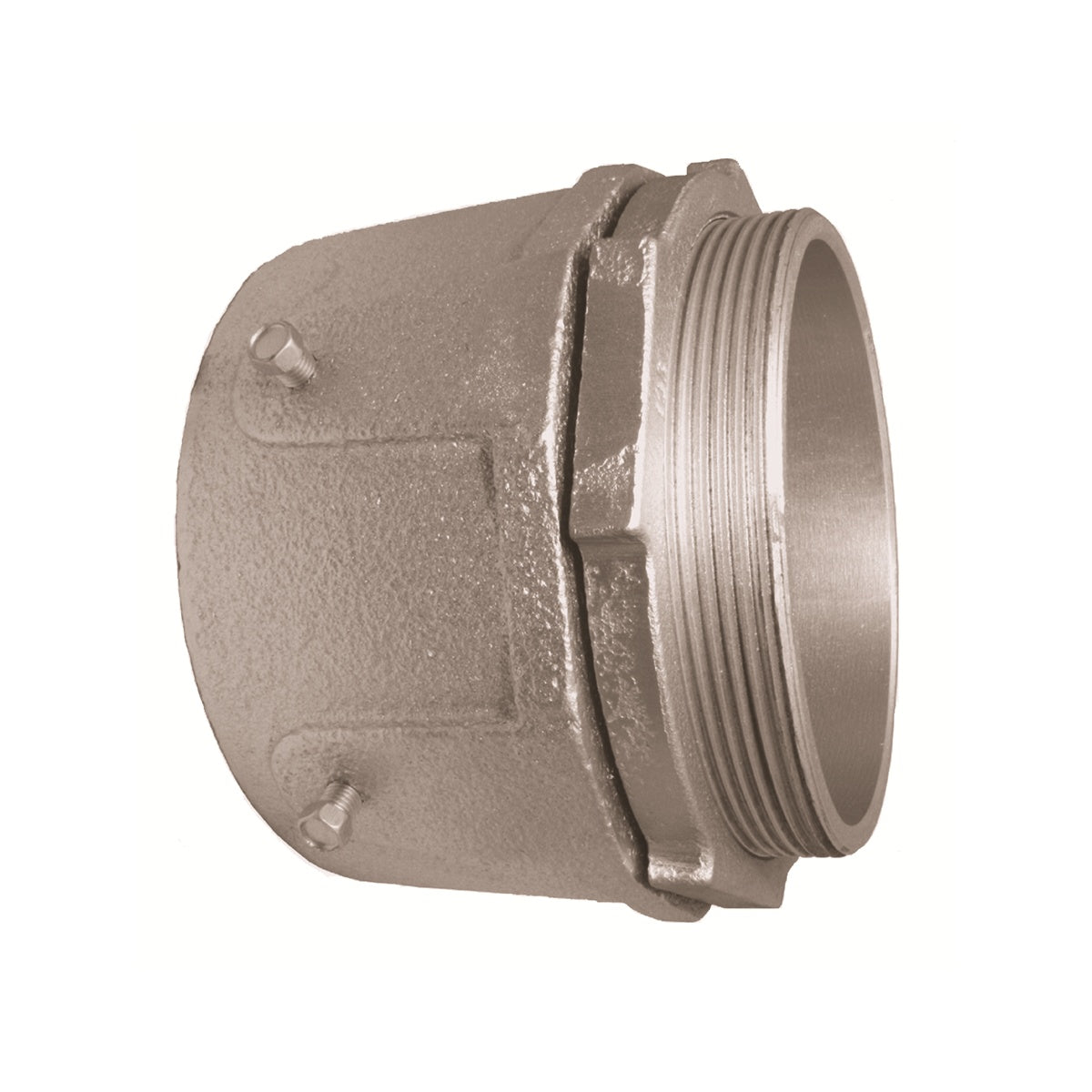

KON RSC500KON 5" SSCR RGD CONN THDLE – Rigid Conduit Connector

The KON RSC500KON is a 5-inch set screw rigid connector designed for threadless rigid conduit and Intermediate Metal Conduit (IMC) applications. Manufactured by Allied Fittings, this malleable iron fitting provides secure, concrete-tight connections when taped, suitable for electrical distributors and switchgear suppliers requiring durable conduit fittings. It supports use in lighting solutions and wire and cable installations where rigid conduit connections are necessary.

Specifications

• Manufacturer Part #: RSC500KON
• Trade Size: 5"
• Dimension A: 4.688"
• Dimension B: 1.375"
• Dimension C: 6.5"
• Weight: 900.0 lbs per 100 pieces
• Material: Malleable Iron
• Finish: Zinc plated
• Country of Origin: China
• RoHS Compliant
• UL Listed File #: E207875 (Note: 5" size is NOT UL approved)

Features

• Concrete tight when taped
• Threadless set screw design for rigid conduit and IMC
• Furnished with two set screws
• Compatible with NPT threads above 2"
• RoHS Compliant

Downloads & Links

• Spec Sheet
