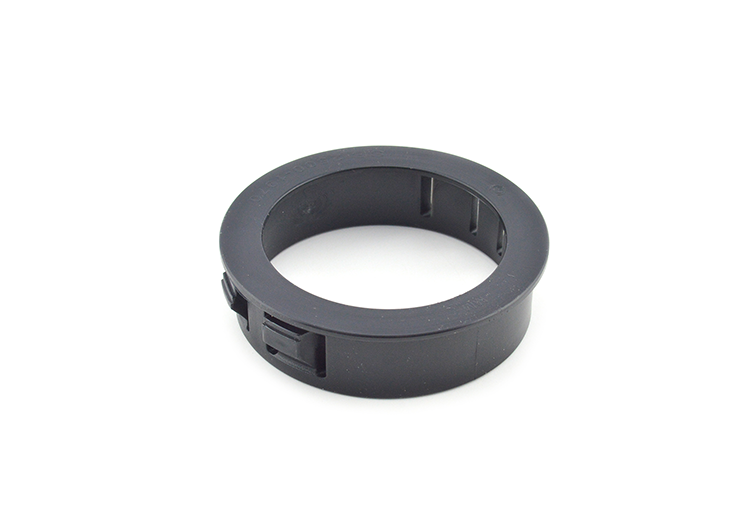

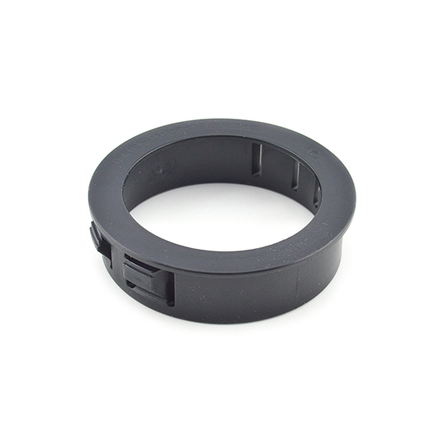

Knockout Bushing, 2", Plastic to Smooth Rough Edge Holes
SKU: #329576
Part: #9796
UPC: 781747007964
Knockout Bushing, 2", Plastic to Smooth Rough Edge Holes
SKU: #329576
Part: #9796
UPC: 781747007964
Next day delivery
Description
Knockout Bushing, 2" Plastic to Smooth Rough Edge Holes – Non-Metallic Cable Bushings
The Bridgeport 9796 knockout bushing converts rough-edged metallic box knockout holes into smooth, insulated holes to protect electrical, voice, data, and video cables. This plastic bushing is rated for 105°C, making it suitable for various electrical distributor and lighting solutions applications where cable protection and abrasion resistance are critical. It is designed for a 2" trade size with a 2.469" knockout diameter and is made in the USA.
Specifications
- Manufacturer: Bridgeport Fittings
- Manufacturer Part #: 9796
- Material: Plastic
- Color: Black
- Finish: Natural
- Trade Size: 2"
- Knockout Diameter: 2.469"
- Dimensions A: 0.718"
- Dimensions B: 2.656"
- Dimensions C: 2.430"
- Temperature Rating: 105°C
- Unit Quantity: 20
- Standard Package Quantity: 100
- UL File Number: E240912
- CSA File Number: LR24719
- UL Standard: UL-514B
- NEMA Standard: FB-1
- Country of Manufacture: United States
- Product Weight: 4.5 lbs
Features
- Converts rough-edged knockout holes to smooth, insulated holes
- Protects electrical, voice, data, and video cables from abrasion
- Plastic construction lowers friction and resists wear
- Rated for continuous operation up to 105°C
- US-made ensuring quality and compliance with industry standards
