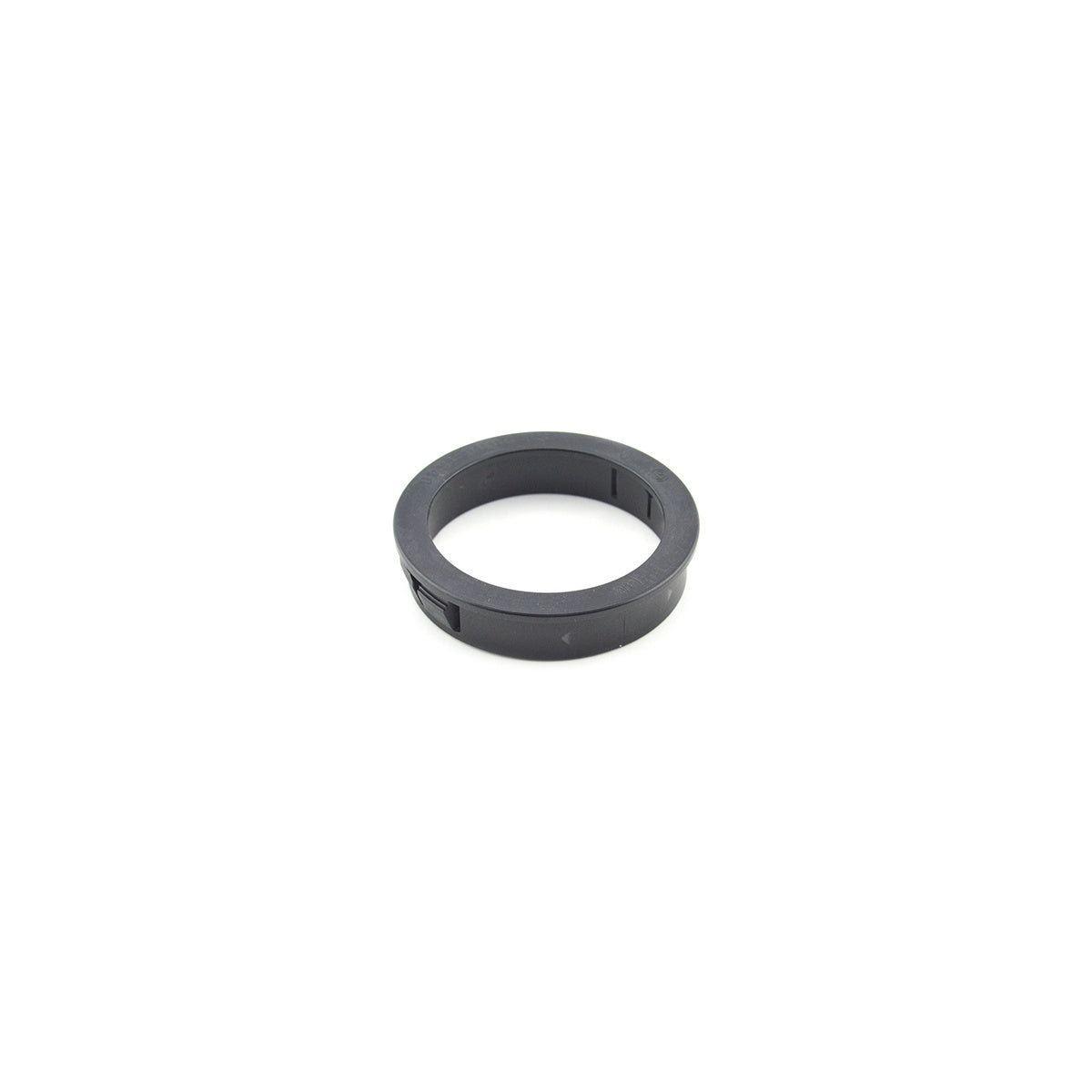

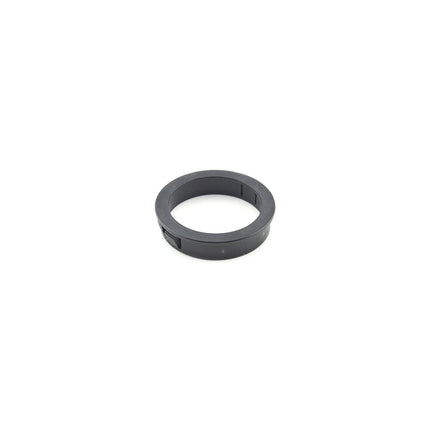

Knockout Bushing, 1-1/2", Plastic to Smooth Rough Edge Holes
SKU: #329573
Part: #9795
UPC: 781747007957
Knockout Bushing, 1-1/2", Plastic to Smooth Rough Edge Holes
SKU: #329573
Part: #9795
UPC: 781747007957
Description
Knockout Bushing, 1-1/2", Plastic to Smooth Rough Edge Holes - Electrical Cable Protection
The Bridgeport 9795 knockout bushing converts rough edged metallic box knockout holes to smooth insulated holes, providing protection for electrical, voice, data, and video cables. This plastic bushing is rated for temperatures up to 105°C and is suitable for use by electrical distributors and switchgear suppliers requiring abrasion-resistant cable management solutions.
Specifications
- Manufacturer: Bridgeport Fittings
- Manufacturer Part #: 9795
- Material: Plastic
- Color: Black
- Finish: Natural
- Trade Size: 1-1/2"
- Knockout Diameter: 1.984 in
- Length: 2.125 in
- Width: 1.96 in
- Temperature Rating: 105°C
- Product Weight: 0.0204 lbs
- Country of Origin: United States
- UL File Number: E240912
- CSA File Number: LR24719
- NEMA Standard: FB-1
- UL Standard: UL-514B
- Unit Quantity: 25
- Standard Package Quantity: 250
Features
- Converts rough edged metallic knockout holes to smooth insulated holes
- Protects electrical, voice, data, and video cables from abrasion and damage
- Rated for continuous use up to 105°C
- Made in the USA ensuring quality and compliance with industry standards
- Non-metallic construction lowers friction and wear on cables
- Compatible with standard 1-1/2" trade size knockout holes
