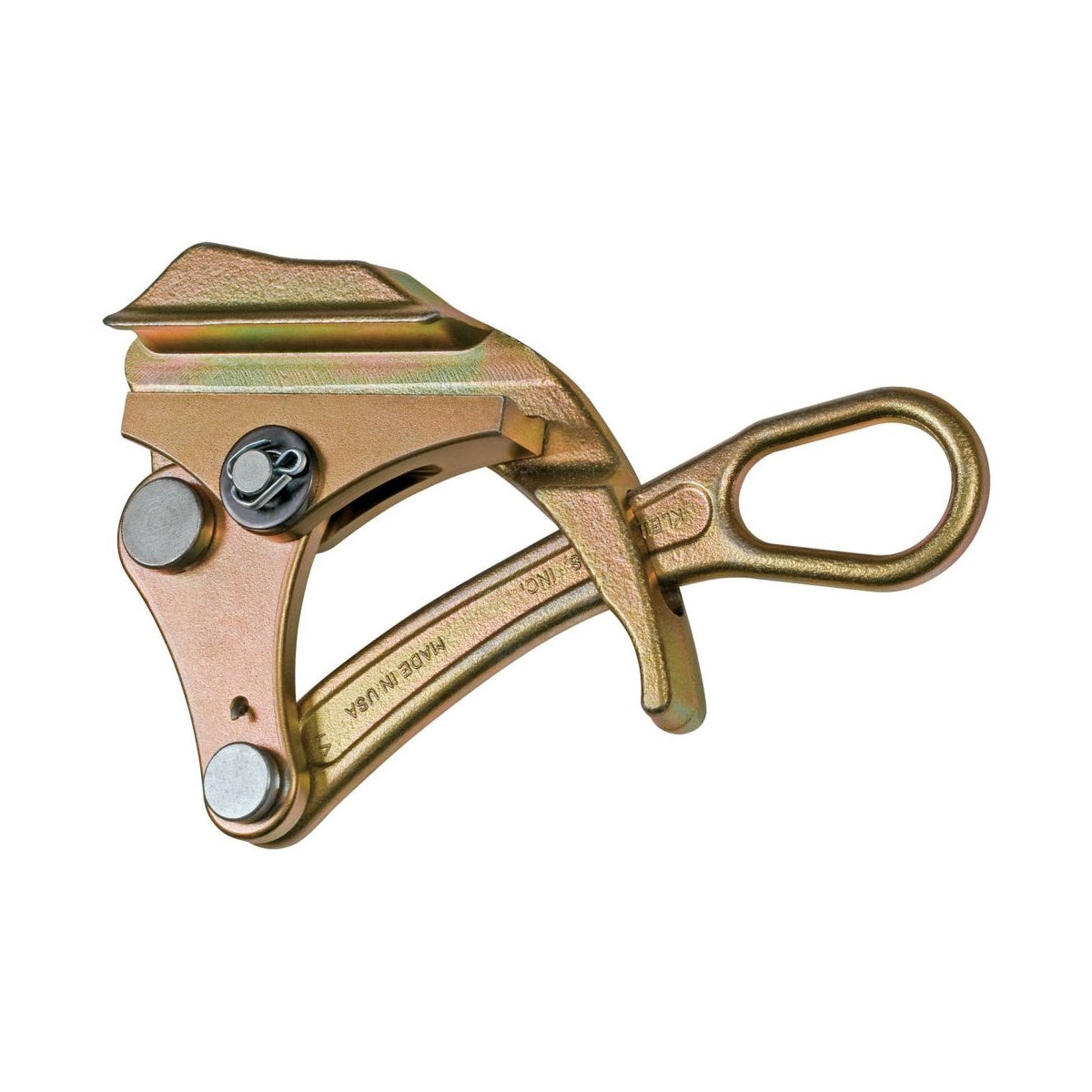

KLEIN KT4800 Parallel Jaw Grip 4800 Series - Wire Pulling Grip

The KLEIN KT4800 Parallel Jaw Grip from the 4800 Series is designed for secure gripping and pulling of ACSR cables in electrical distribution and wire and cable applications. This tool is suitable for electrical distributors and switchgear suppliers requiring reliable wire pulling grips with high load capacity. It features a round serrated jaw for maximum cable contact and minimal deformation, supporting efficient handling in lighting solutions, wire installation, and overhead line work.

Specifications

• Manufacturer Part #: KT4800
• Cable Type: ACSR
• Cable Diameter: 0.70" to 1.25" (17.78 to 31.75 mm)
• Jaw Type: Round - Serrated
• Jaw Length: 5.125" (13 cm)
• Weight: 9.0 lb (4.1 kg)
• Maximum Safe Load: 12,000 lbs. (5,443 kg)

Features

• Round jaw provides maximum contact with the cable minimizing deformation
• Spring closes grip on cable helping to maintain initial position
• Hot latch closes automatically to guard against accidental disengagement
• Locking handle keeps jaw open while placing grip on cable with a hot stick
• Large opening in handle accommodates a wide variety of hooks on hoists, winches, and tackle blocks
