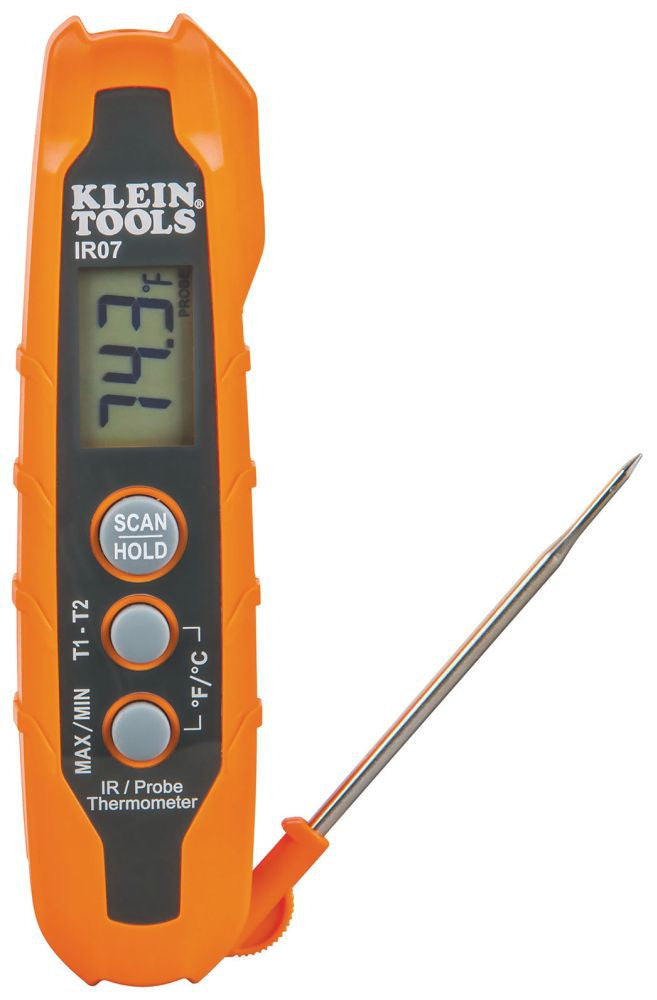

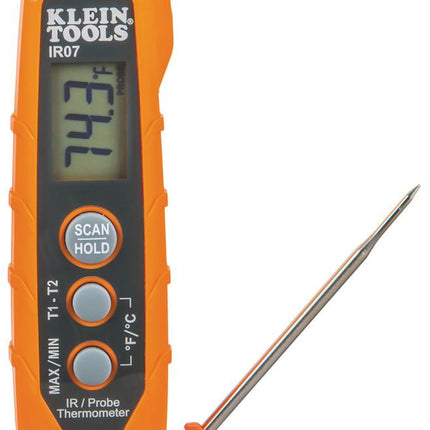

KLEIN IR07 DUAL IR/PROBE THERMOMETER – Infrared Thermometer

The Klein Tools IR07 is a dual infrared and probe thermometer designed for precise temperature measurement in electrical, HVAC, and industrial applications. Suitable for electrical distributors and switchgear suppliers, this pocket-sized device measures surface temperatures using infrared technology with an 8:1 distance-to-spot ratio and internal temperatures via a probe with a hanging hook. It supports temperature readings in both Fahrenheit and Celsius scales, making it a versatile tool for lighting solutions, wire and cable inspections, and other technical environments.

Specifications

• Temperature Range (IR and Probe): -40° to 572°F (-40° to 300°C)
• Optical Resolution (Distance-to-Spot Ratio): 8:1
• Temperature Resolution: 0.1°F (0.1°C)
• IR Temperature Accuracy: ±2°C + 0.1°C (-40° to 0°C); ±2°C or ±2% (1° to 300°C)
• Probe Temperature Accuracy: ±2°C (-40° to 0°C); ±1°C or ±1% (1° to 300°C)
• Display: White backlit LCD with Hold, Max/Min, Auto Power Off, and Low Battery functions
• Power: 2 x AAA batteries (included)
• Battery Life: IR mode 30 hours continuous; Probe mode 180 hours continuous
• Dimensions: 5.8" x 0.96" x 1.67" (148 x 24 x 42 mm)
• Weight: 2.5 oz. (72 grams)
• IP Rating: IP54 (dust and splash resistant)
• Drop Protection: 6.6 ft. (2 m)
• Laser: FDA and IEC Class 2, <1mW power, 630-670 nm wavelength
• Operating Environment: Indoor/outdoor, up to 6561' altitude, <85% non-condensing humidity
• Standards Compliance: IEC EN 61326-1:2013, EN 61326-2-3:2013, EN60825-1:2014

Features

• Dual function measuring both surface temperature (infrared) and internal temperature (probe)
• Laser targeting for accurate infrared temperature measurement
• Temperature differential calculation (T1-T2) for both IR and probe readings
• Selectable temperature scales: Fahrenheit or Celsius
• Backlit display for visibility in low light conditions
• Auto-power off to conserve battery life
• Probe with thumb stud and hanging hook for hands-free measurements inside vents and ducts
• Robust construction with drop protection and IP54 rating for durability in demanding environments
• Low battery indicator and easy battery replacement
