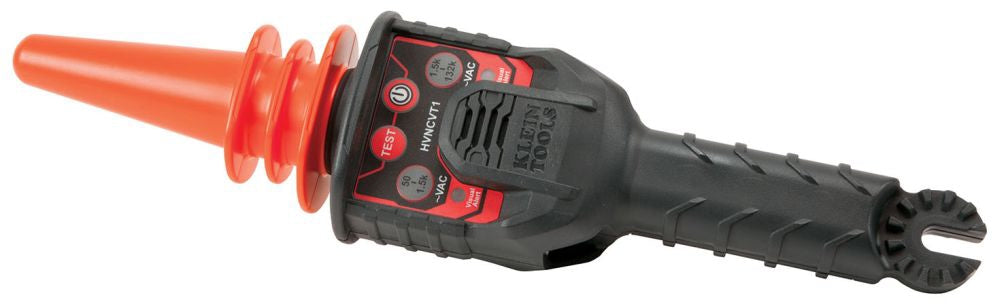

KLEIN HVNCVT-1 Dual Range High Voltage Tester

The KLEIN HVNCVT-1 is a dual-range high voltage non-contact tester designed for electrical distributors, lighting solutions providers, wire and cable professionals, and switchgear suppliers. It is used to check for the presence of AC voltage in overhead conductors and to find faults in cables without requiring direct contact or disconnection of circuits. The tester operates safely across low and high voltage ranges, making it suitable for detecting voltages from 50V AC up to 132kV AC.

Specifications

• Voltage Detection Range: Low range 50V AC to 1.5kV AC; High range 1.5kV AC to 132kV AC
• Overall Length: 13.00" (33 cm)
• Power Source: One 9V battery
• Operating Temperature: 32¬∞ to 122¬∞F (0¬∞ to 50¬∞C) @ 85% relative humidity
• Storage Temperature: 14¬∞ to 122¬∞F (-10¬∞ to 50¬∞C) @ 85% relative humidity
• Weight: 8 oz. (227 g)
• Power Consumption: Off less than 5¬µA; Low range less than 40mA; High range less than 40mA

Features

• Non-contact detection of live AC voltage without circuit disconnection
• Dual-range operation for low and high voltage applications
• Visual and audible indicators for voltage presence
• Includes durable carrying case and one 9V battery
• High-range mode designed for use with hot sticks and rubber gloves for safety
• Compact, lightweight design suitable for field use
• Complies with OSHA safety practices and minimum approach distances
• Self-test function to verify battery and system integrity
• Suitable for finding faults in cables and tracing live wires
