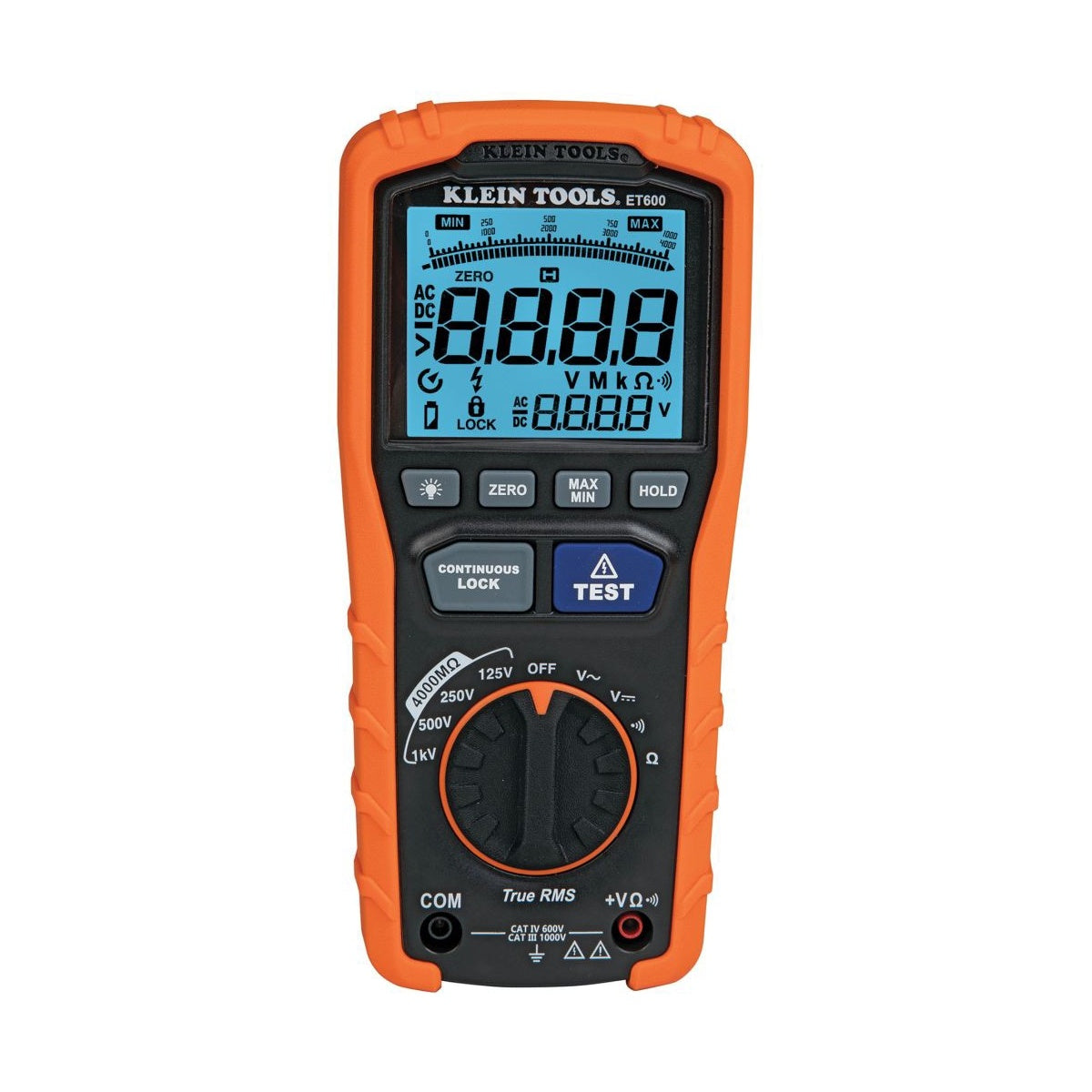

KLEIN ET600 Insulation Resistance Tester – Electrical Testing Equipment

The Klein Tools ET600 is a digital insulation resistance tester designed for accurate measurement of insulation resistance up to 4000 MΩ at multiple test voltages (125V, 250V, 500V, and 1000V DC). It also measures AC/DC voltage up to 1000V, resistance, and continuity with True RMS technology for increased accuracy. Suitable for electrical distributors, lighting solutions providers, wire and cable, and switchgear suppliers, this tester supports safe and reliable insulation testing in industrial and commercial electrical applications.

Specifications

• Test Voltages: 125V, 250V, 500V, 1000V DC
• Insulation Resistance Range: Up to 4000 MŒ©
• AC Voltage Measurement: Up to 1000V
• DC Voltage Measurement: Up to 1000V
• Resistance Measurement: 4 kŒ© range
• Continuity: Audible signal for resistance less than 30 Œ©
• Display: 4000-count backlit LCD with bar graph
• Safety Ratings: CAT IV 600V, CAT III 1000V
• Drop Protection: 3.3 ft (1 m)
• Ingress Protection: IP40 (except test lead jacks)
• Operating Temperature: 14¬∞F to 122¬∞F (-10¬∞C to 50¬∞C)
• Dimensions: 7.8" x 3.6" x 2.4" (200 x 92 x 62 mm)
• Weight: 24.6 oz (700 g)
• Standards: UL, CSA, IEC certified to EN61557-1,-2,-4

Features

• True RMS technology for accurate AC/DC voltage and resistance measurements
• Test and Lock buttons for simple, hands-free insulation resistance testing
• Warning alarm and high voltage icon for voltage detection during insulation tests
• Automatic ranging with auto-zero adjustment
• Backlit display with bar graph, Max/Min, Hold, and Auto-power off functions
• Low battery indicator with easily replaceable batteries and fuse
• Built-in stand and optional magnetic hanger for hands-free operation
• Includes CAT III/CAT IV safety rated test leads, heavy-duty alligator clips, batteries, carrying case, and instruction manual
