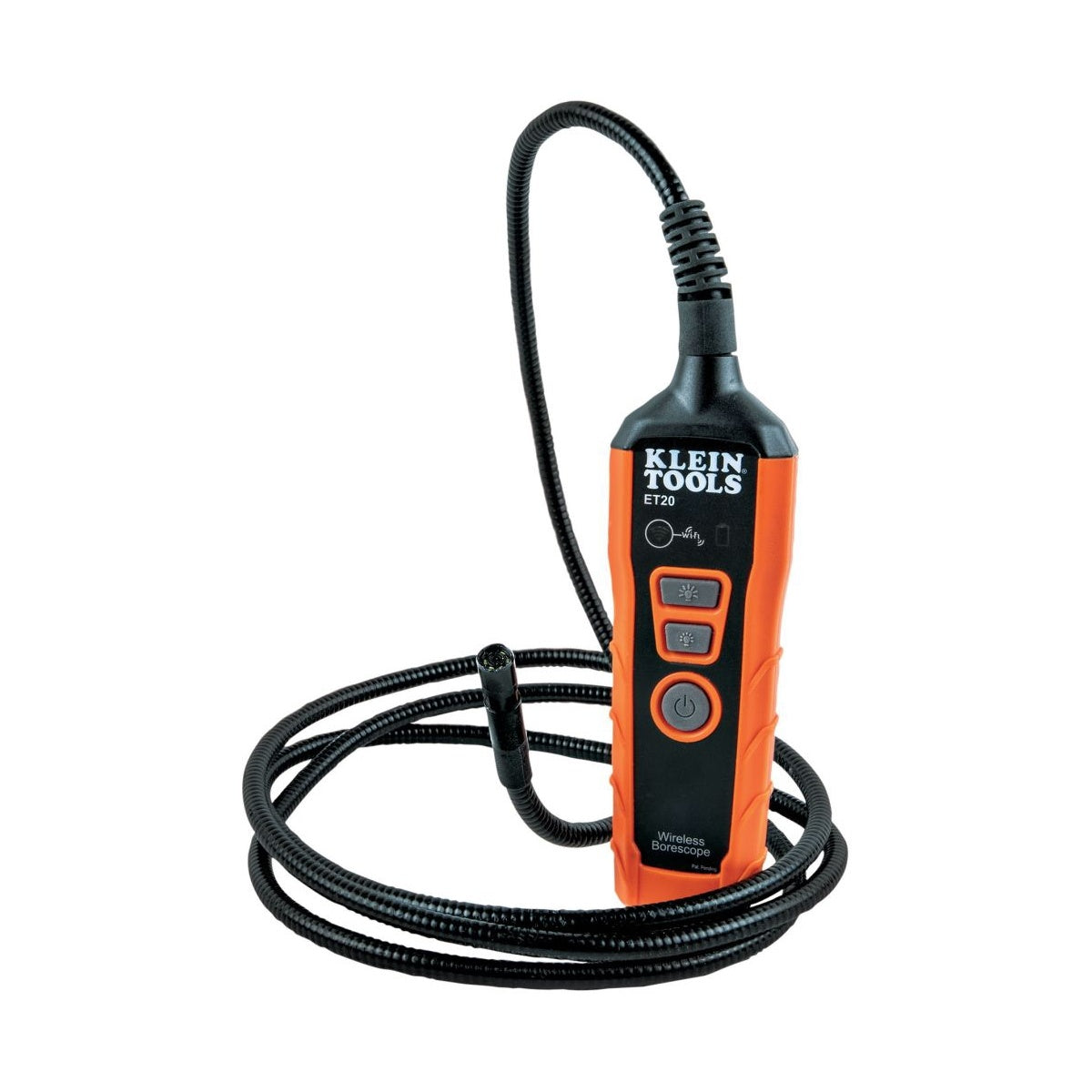

KLEIN ET20 WIFI BORESCOPE – Wireless Inspection Tool

The Klein ET20 WiFi Borescope is a professional-grade wireless inspection tool designed for electrical distributors, lighting solutions providers, and switchgear suppliers requiring precise visual access in confined or hard-to-reach spaces. It features a 9mm waterproof camera with adjustable LED lighting and a 6-foot armored gooseneck cable that transmits high-quality 640 x 480 pixel video and images directly to iOS and Android smartphones via WiFi. The borescope is ideal for wire and cable inspections, conduit routing, and other detailed visual diagnostics in electrical and lighting applications.

Specifications

• Camera Diameter: 9 mm
• Camera Output Resolution: 640 x 480 pixels
• Camera Frames per Second: 25
• Gooseneck Length: 6 ft. (1.8 m)
• Ingress Protection: Camera IP67 (dustproof and waterproof), Body IP42 (dust and water resistant)
• Battery: Internal rechargeable Li-Ion, 3.7V / 2600mAh (9.62Wh)
• Battery Life: Approximately 6 hours without LED lights, 5.5 hours at maximum LED output
• Dimensions: 7.31" x 2.3" x 1.5" (185 x 58 x 38 mm)
• Weight: 20 oz. (567 g)
• Operating Temperature Range: 15¬∞F to 140¬∞F (-9¬∞C to 60¬∞C)
• Storage Temperature Range: 32¬∞F to 113¬∞F (0¬∞C to 45¬∞C)
• Drop Protection: 9.8 ft. (3 m)
• Operating Altitude: Up to 6562 ft. (2000 m)
• Compliance: CE, UKCA, FCC, IC, DOE/CEC, NRCan

Features

• WiFi connectivity transmits video and images up to 30 ft. (9 m) to smartphones using the Klein Tools Borescope App available on Google Play and the App Store
• Waterproof 9 mm camera with six adjustable LED lights for enhanced visibility in dark or confined spaces
• Tough, armored 6 ft. (1.8 m) waterproof gooseneck cable provides flexibility and rigidity to maneuver around obstacles
• Battery status indicator displays lithium-ion battery charge level
• LED brightness can be adjusted directly on the borescope or through the app
• App functionality includes live display, image and video capture, storage, and sharing via text or email
• Includes pocket clip, USB charging cable, hook attachment, carrying case, and user instructions
