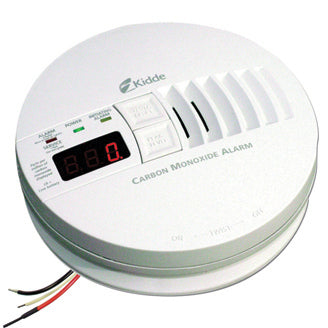

Kidde AC Hardwired Operated Carbon Monoxide Alarm with Digital Display – Carbon Monoxide Alarm

The Kidde AC Hardwired Operated Carbon Monoxide Alarm with Digital Display (Model KN-COP-IC, Part Number 351463) is an AC wire-in carbon monoxide alarm designed for residential safety. It continuously monitors carbon monoxide levels with a digital display and provides early warning of dangerous CO concentrations. This product is suitable for electrical distributors and lighting solution providers offering reliable wire and cable safety devices or switchgear suppliers focusing on integrated alarm systems. The alarm includes a 9V battery backup to ensure continuous protection during power outages and can interconnect with up to 24 Kidde devices, including smoke, CO, and heat alarms, on a single wiring network.

Specifications

• Manufacturer Part #: KN-COP-IC
• Operating Temperature: 4.4 to 37.8 degrees Celsius (40¬∞F to 100¬∞F)
• Power Source: 120V AC, 60 Hz with 9V battery backup
• Sensor Type: Electrochemical
• Audible Alarm: 85+ dB at 10 feet, 3.4¬±0.5 KHz pulsing alarm
• Alarm Response Times: 70 ppm CO = 60-240 min; 150 ppm CO = 10-50 min; 400 ppm CO = 4-15 min
• Humidity Operating Range: 10-95% non-condensing
• Interconnect Capability: Up to 24 Kidde devices on one wiring network
• Product Weight: 6.0 lbs
• UPC: 047871001217
• Warranty: 10-year limited warranty and 10-year life span

Features

• Digital display updates every 15 seconds to show current CO levels in parts per million (ppm)
• Peak level memory stores highest CO reading since last reset or power-up
• Interconnectable with Kidde smoke, CO, and heat alarms for integrated home safety systems
• 9V battery backup ensures alarm functionality during power outages
• Contractor-friendly design with quick connect wiring harness and tamper-resistant locking feature
• Test/reset button for immediate alarm circuit testing and silencing
• End-of-life warning signals when alarm needs replacement after 10 years
• Green power LED indicates normal operation; red and amber LEDs indicate alarm and initiating status

Downloads & Links

• User Guide for Kidde Models KN-COB-IC, KN-COP-IC (English)
• Data Sheet Kidde KN-COP-IC AC Hardwired CO Alarm with Digital Display (ENG)
