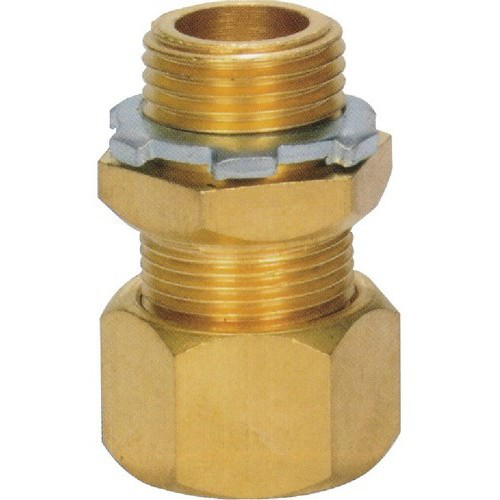

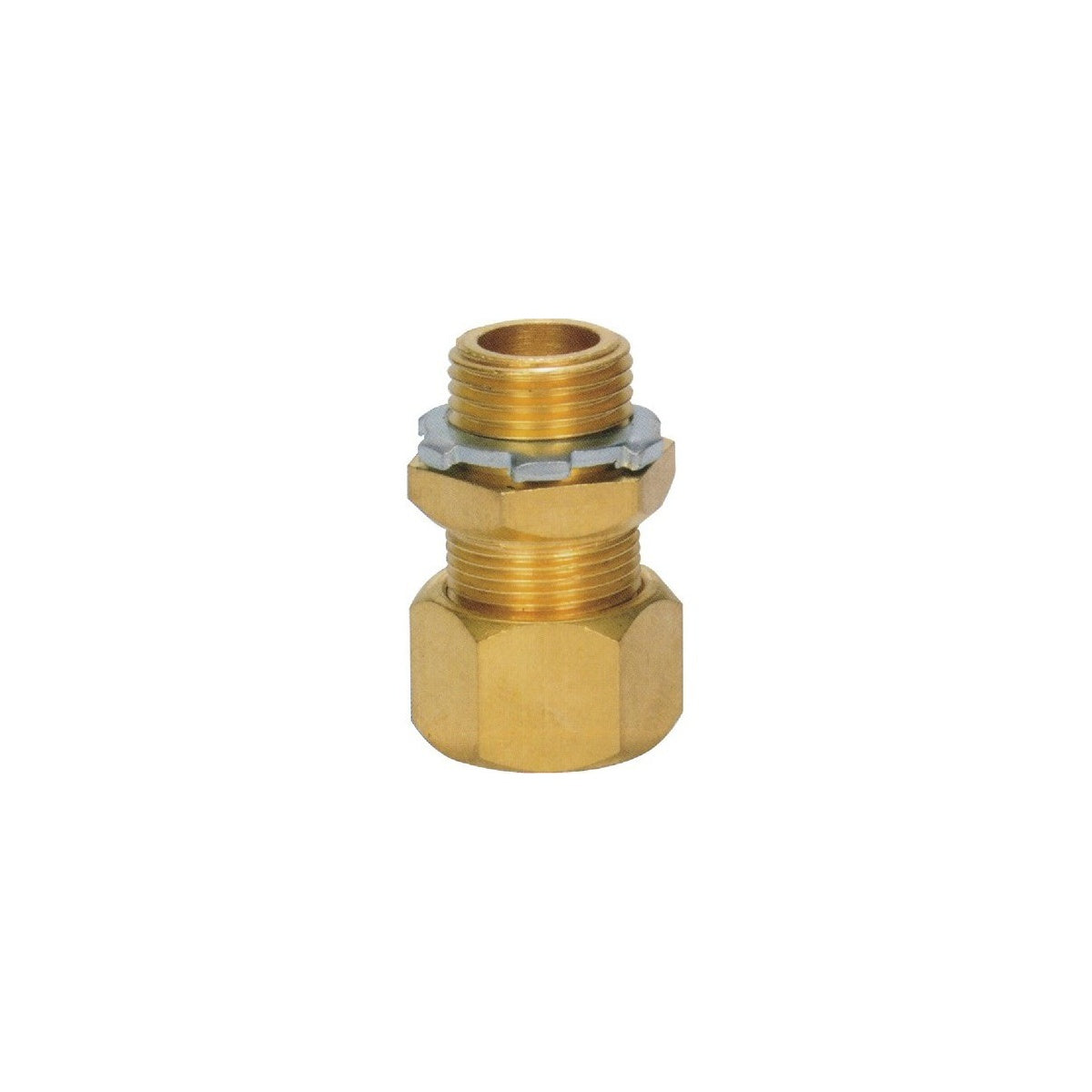

Kenny Clamp - 3/0 Stranded Grounding Connector

The Kenny Clamp - 3/0 Stranded is a brass grounding connector designed to bond the enclosure of service panelboards, load centers, separately derived systems, or switchboards to the grounding electrode conductor. This product is suitable for electrical distributors and switchgear suppliers requiring reliable grounding solutions compliant with NEC standards.

Specifications

• Material: Brass
• Manufacturer Part #: 15399
• Product Weight: 0.4500 lbs
• UL Listing: UL 467
• Current Rating: 12,000 Amps
• Trade Size: 3/0 Stranded
• Dimensions (inches): A = 1.75, B = 1.06

Features

• Assures good metallic connection and low impedance path for grounding and bonding of electrical equipment
• UL 467 listed for use with equipment ground conductors, ground electrode conductors, and bonding jumpers
• Complies with NEC requirements including 250.8, 312.5(A), 250.53(D)(2), 250.52(A)(1), 250.52(A)(3), 250.66, 250.104(D)(1), 250.24, and 450.10(A)

Downloads & Links

• Spec Sheet
