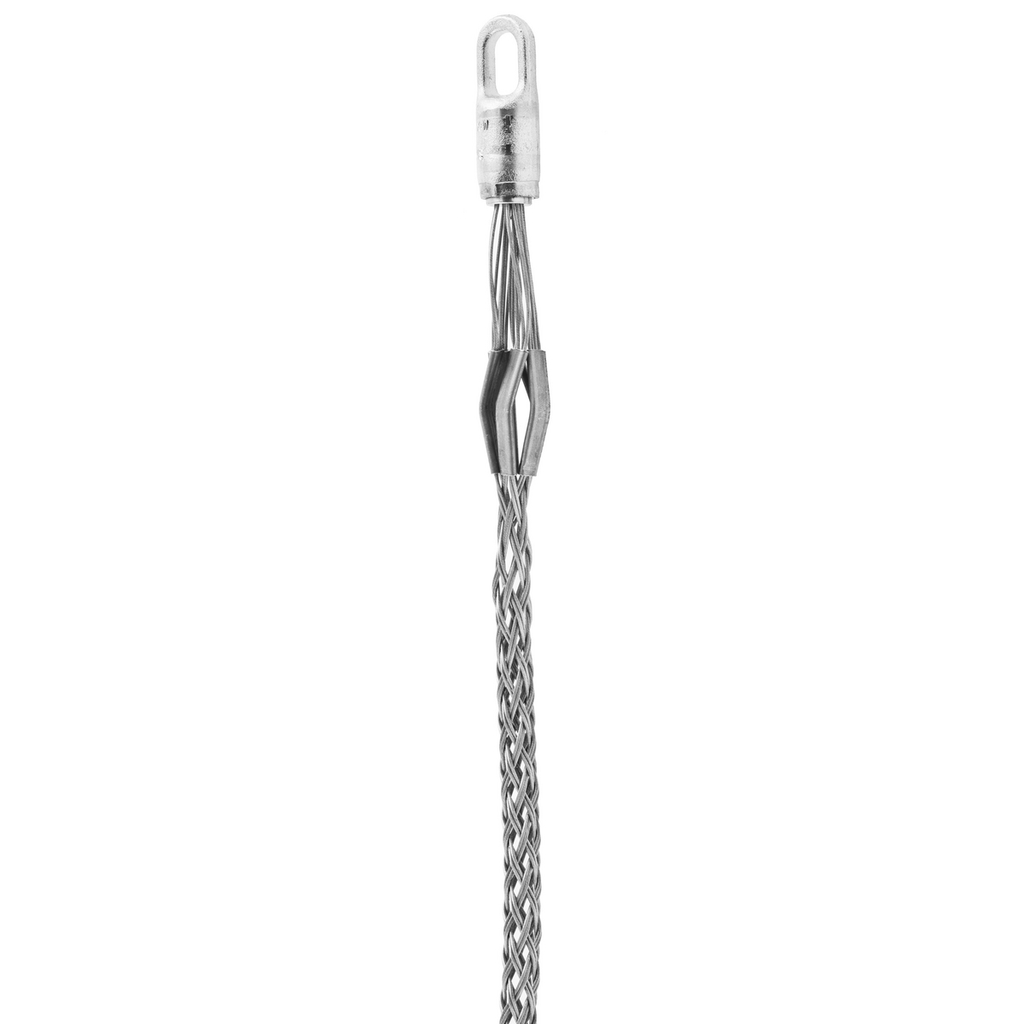

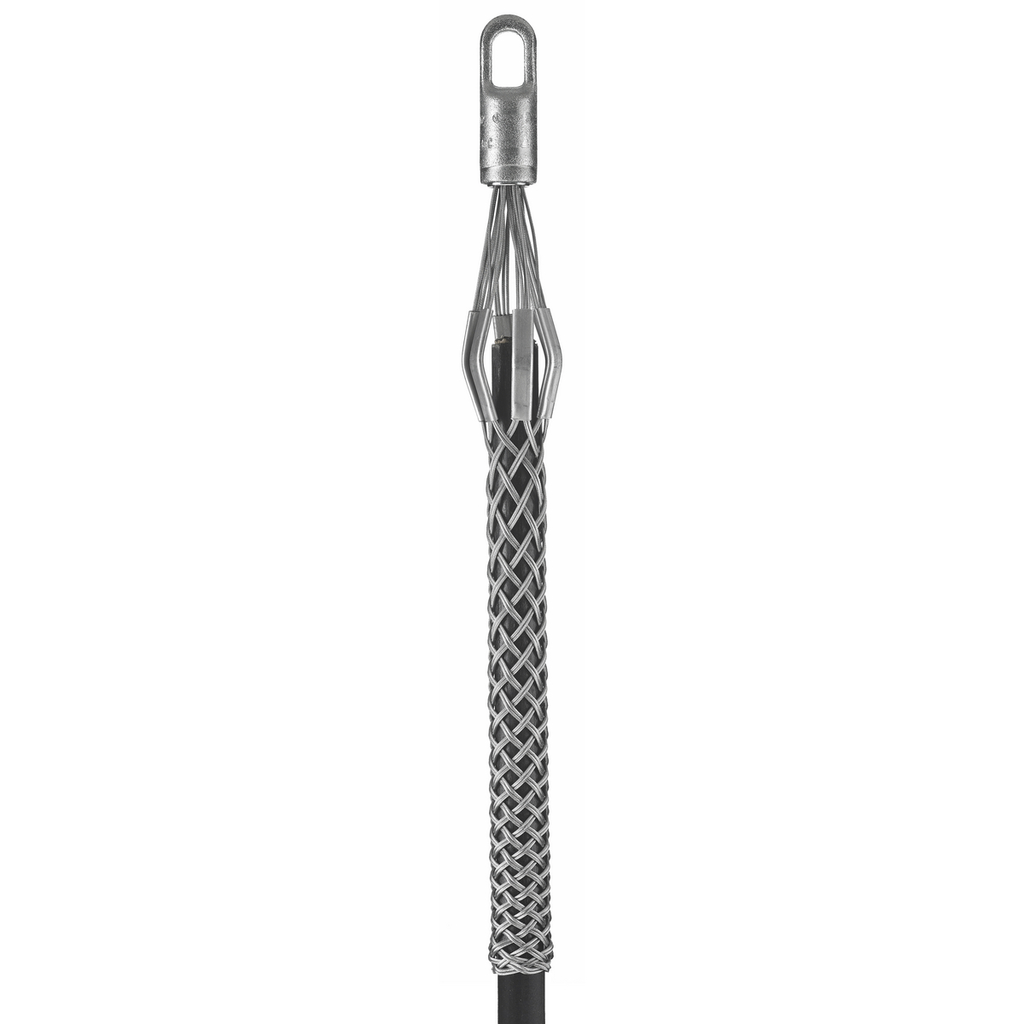

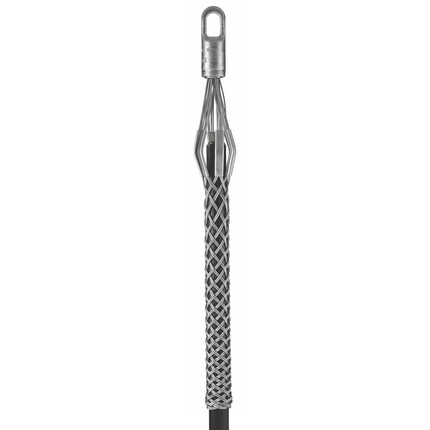

Features

• Rotating eye for spin out of pulling torque after load release
• The multiweave styles available add strength for big pulling jobs
• The galvanized steel mess grip provides strength for secure pulling
• Standard Product

Specifications

• Country of Origin: United States
• Approx Breaking Strength: 33,000 lb.
• Cable Diameter Range: 2.50 in - 2.99 in
• Cable Diameter Range Metric: 6.35 cm - 7.59 cm
• Width: 2.550 in
• Each - Width: 2.550 in
• Industry Standard(s): CSA Certified
• Performance: Mechanical - Approximate Breaking Strength - 33,000 (146,784) Lbs. (N);Mechanical - Cable Diameter Range - 2.50"-2.99" (6.35-7.59);Mechanical - Working Load - 6600 (29356.8) Lbs. (N)
• Application: Underground Pulling
• Cable Size: 2.50"-2.99" (6.35-7.59)
• Load: 6600
• Special Features: Standard Product
• Standard: CSA Certified
• Type: Rotating Eye, Standard Length
• WorkingLoadLimit: 6,600 lb.
• Cable Specification: UL Listed Circuit Wire
• Load Capacity: 6600
• Style: Closed Mesh, Double Weave
• Weight: 6.5 lb.
• Class Code: A52
• Description - Invoice: UGRD ROT EYE PULL GRIP, 2.5-3.0"; STD
• Freight Class Code: 06168002
• Harmonization Code: 7326200090
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 03301035;03329004;08642158
• Sub Class Code: A52A480
• Material - Mounting Hardware: Non-Mounted
• Construction: Woven
• Material: Steel, Galvanized
• Series: Underground K-Type
• Base Unit of Measure: EA
• BOX SIZE: 2.350x58.000x4.200 (in)
• Carton - Gross Weight per Pack: 13.000 lb.
• Carton - Number of Sub Packs: 2
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585314327
• Carton - Total Units: 2 EA
• Case Weight: 29.100 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70783585314326
• Pallet Height: 36.900 in
• Pallet Length: 48.000 in
• Pallet Weight: 261.900 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
