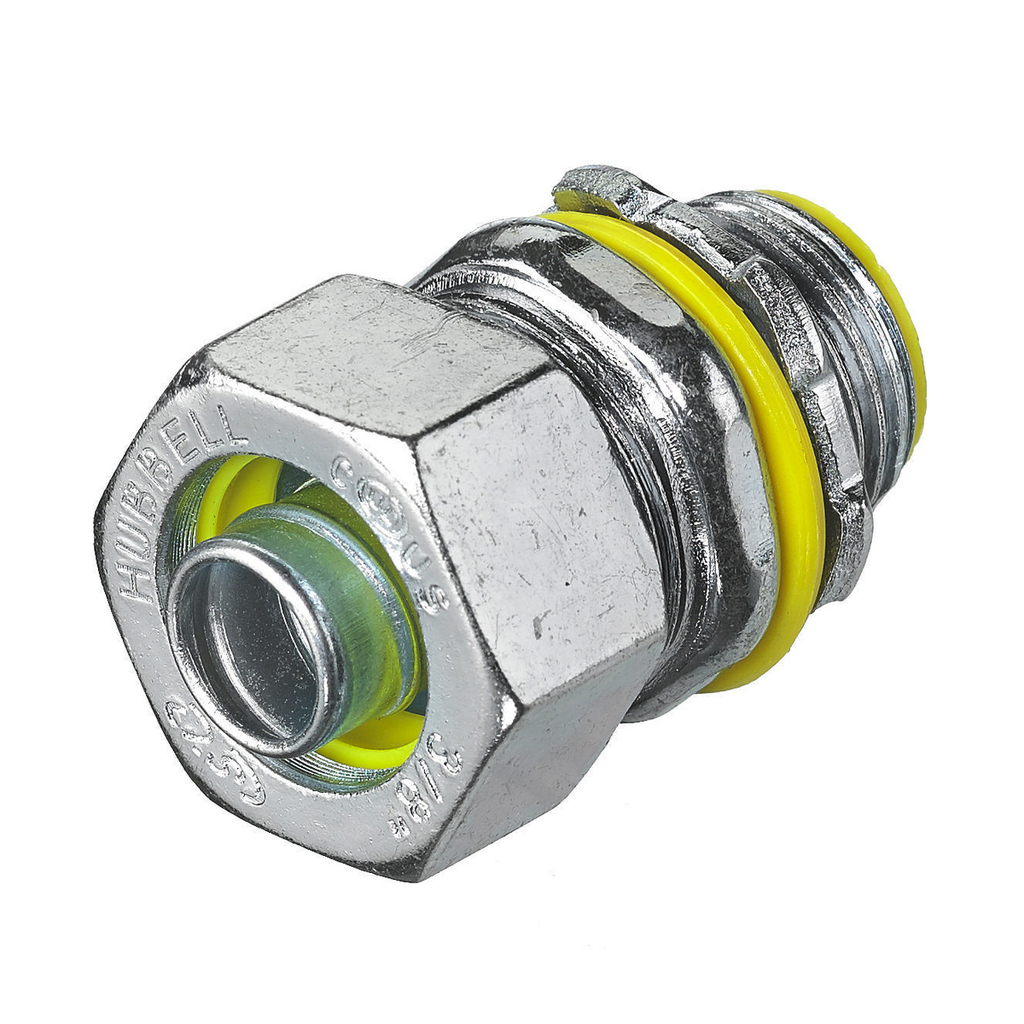

Kellems Wire Management Liquidtight System Straight Male Liquid Tight Connector 3/8" Steel

This Kellems Wire Management liquidtight system connector is designed for use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit. It serves as a straight male liquid tight connector, providing a secure and insulated connection between enclosure and conduit. Ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable conduit fittings for hazardous and wet locations.

Specifications

• Material: Steel, Zinc Plated
• Color: Metallic
• Connection: Cap Nut
• Width: 1.120 in
• Product Weight: 0.2000 lbs
• Mounting: Between Enclosure and Conduit
• Application: For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
• NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
• Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
• Country of Origin: China
• Manufacturer Part #: H0381

Features

• Insulated design for enhanced safety and durability
• Cap nut connection ensures secure and easy installation
• Corrosion-resistant zinc-plated steel construction
• Compatible with both metallic and non-metallic conduit systems
• Certified for hazardous location applications
