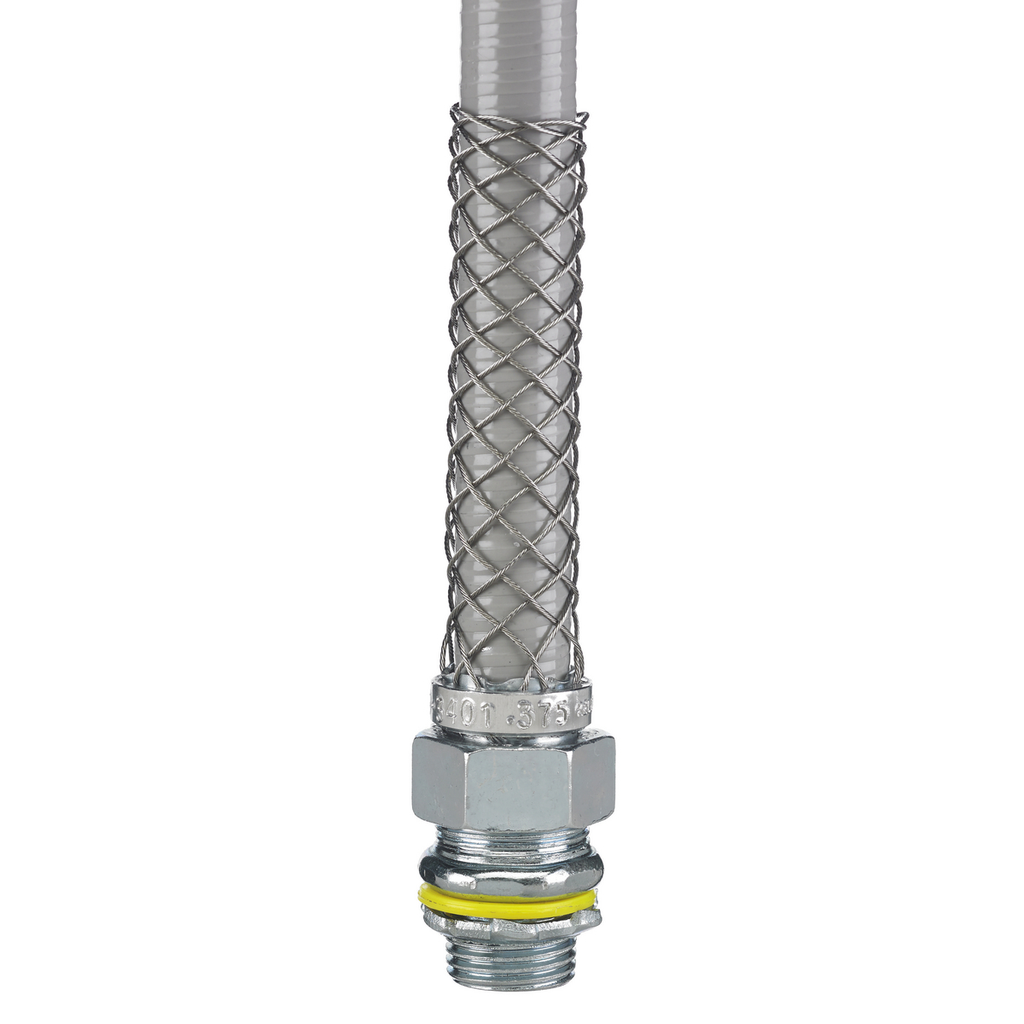

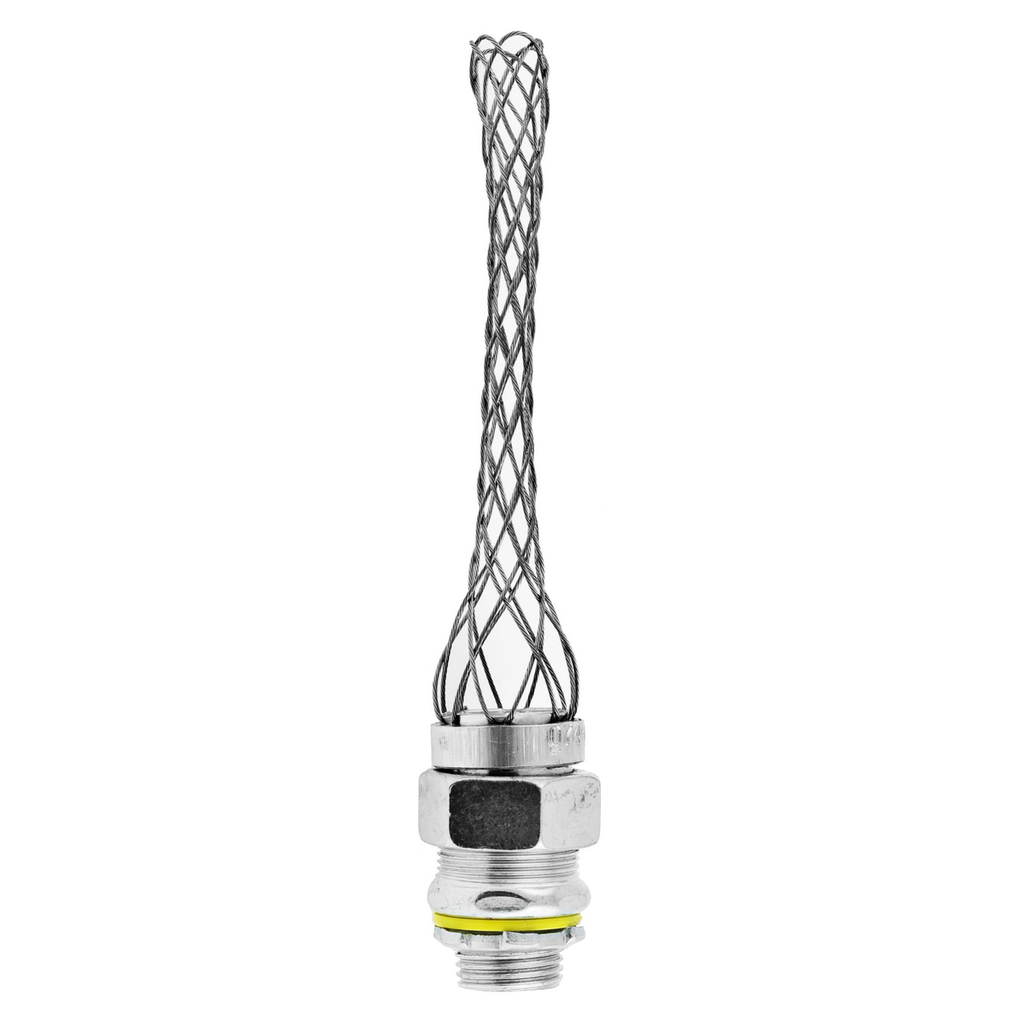

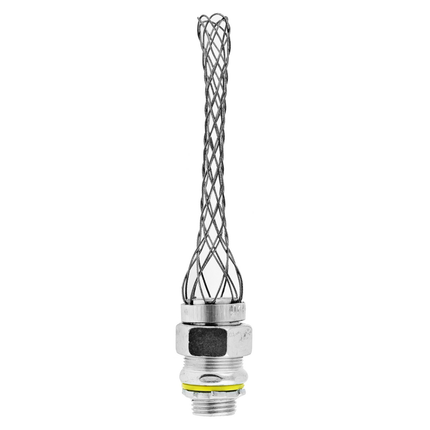

Kellems Wire Management, Liquidtight System, Straight, 1", Non-Insulated with Mesh - Wire and Cable Strain Relief

This Kellems wire management liquidtight system provides a straight, 1" non-insulated fitting with stainless steel mesh designed for robust strain relief and wire protection. Ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear supplier needs, this product ensures secure and durable cable management between enclosures and conduits.

Specifications

• Application: 1" NPT
• Product Weight: 0.4500 lbs
• Color: Metallic
• Width: 1.500 in
• Material: Steel Fitting, Stainless Steel Mesh
• Mounting: Between Enclosure and Conduit
• Connection: Cap Nut
• NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
• Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 074093404

Features

• Non-insulated stainless steel mesh construction for high strength and corrosion resistance
• Liquidtight fitting with sealing 'O' ring option for enhanced moisture protection
• Cap nut connection for secure, easy installation
• Designed for mounting between enclosure and conduit for optimal strain relief
• Complies with hazardous location standards to ensure safety in demanding environments
• Metallic color finish for durability and professional appearance
