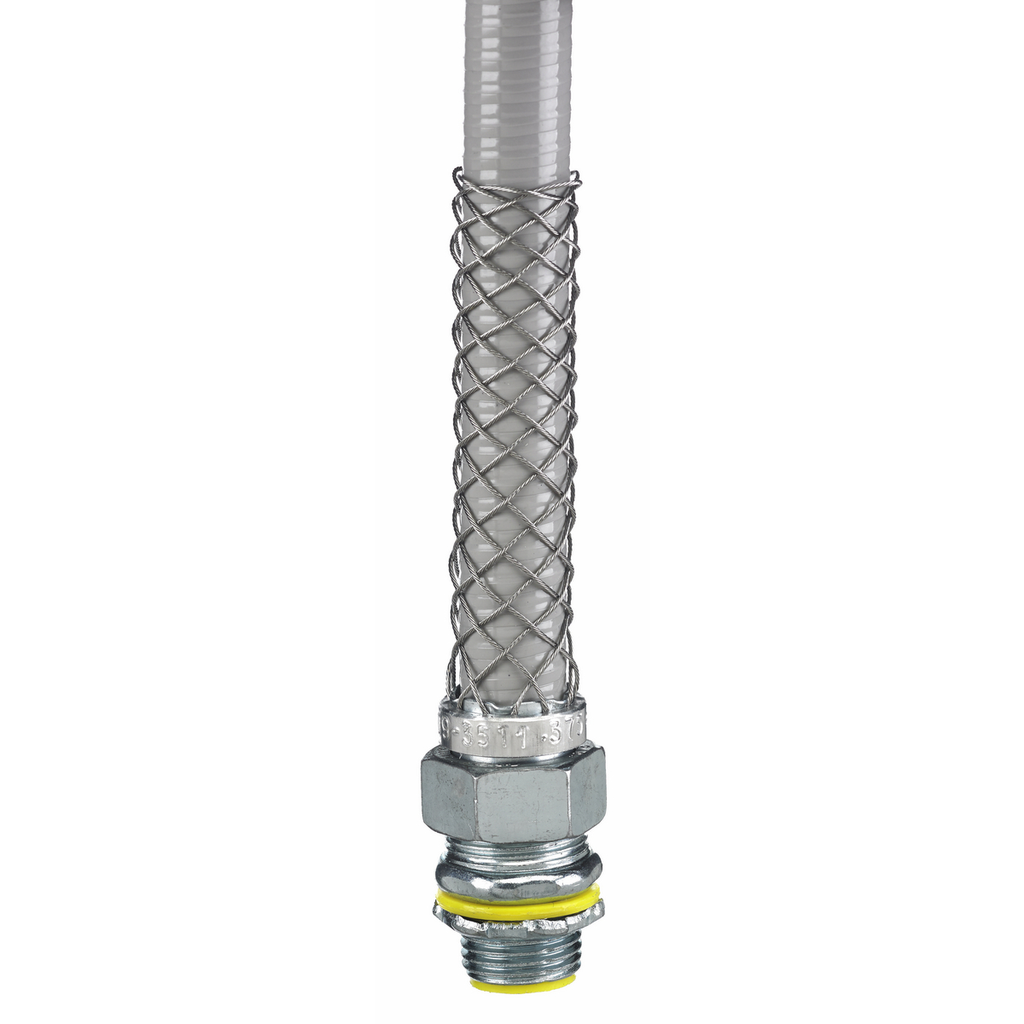

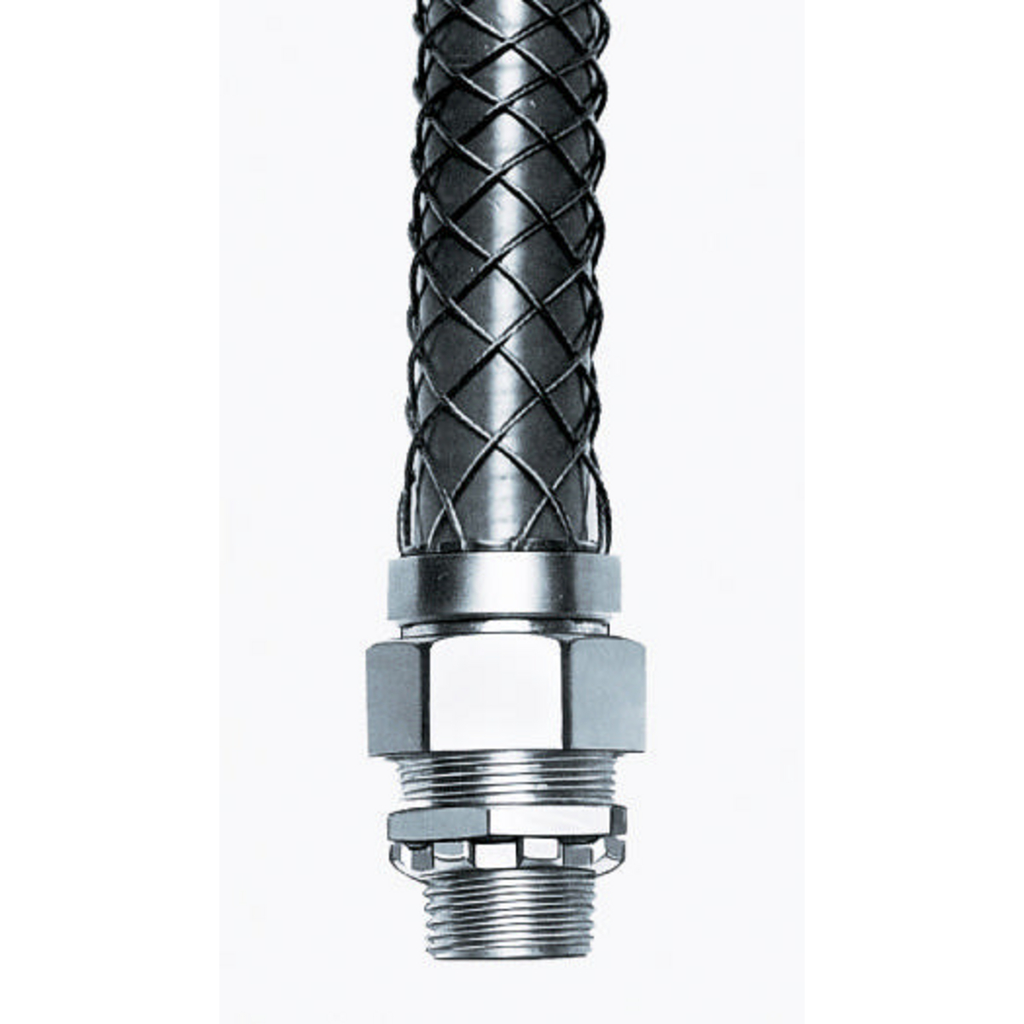

Kellems Wire Management Liquidtight System - Electrical Wire and Cable Fitting

The Kellems Wire Management Liquidtight System is a straight male conduit fitting designed for secure wire and cable management in industrial electrical installations. Manufactured by Hubbell Wiring Device-Kellems, this metallic-colored fitting features a steel body with stainless steel mesh insulation, providing durability and protection against harsh environmental conditions. It is suitable for mounting between enclosure and conduit, making it ideal for wire and cable routing in demanding applications. This product is made in the USA and is designed to meet the needs of electrical distributors and switchgear suppliers requiring reliable wire management and liquidtight conduit solutions.

Specifications

• Application: Straight Male
• Product Weight: 0.4500 lbs
• Width: 1.800 in
• Material: Steel Fitting, Stainless Steel Mesh
• Mounting: Between Enclosure and Conduit
• Connection: Cap Nut
• Color: Metallic
• NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
• Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: 074093514
• UPC: 783585331904

Features

• Insulated with stainless steel mesh for enhanced durability and protection
• Liquidtight design ensures watertight and dust-tight sealing
• Cap nut connection provides secure and reliable attachment
• Compatible with hazardous location requirements, supporting safety compliance
• Constructed of steel and stainless steel mesh to withstand corrosive and wet environments
