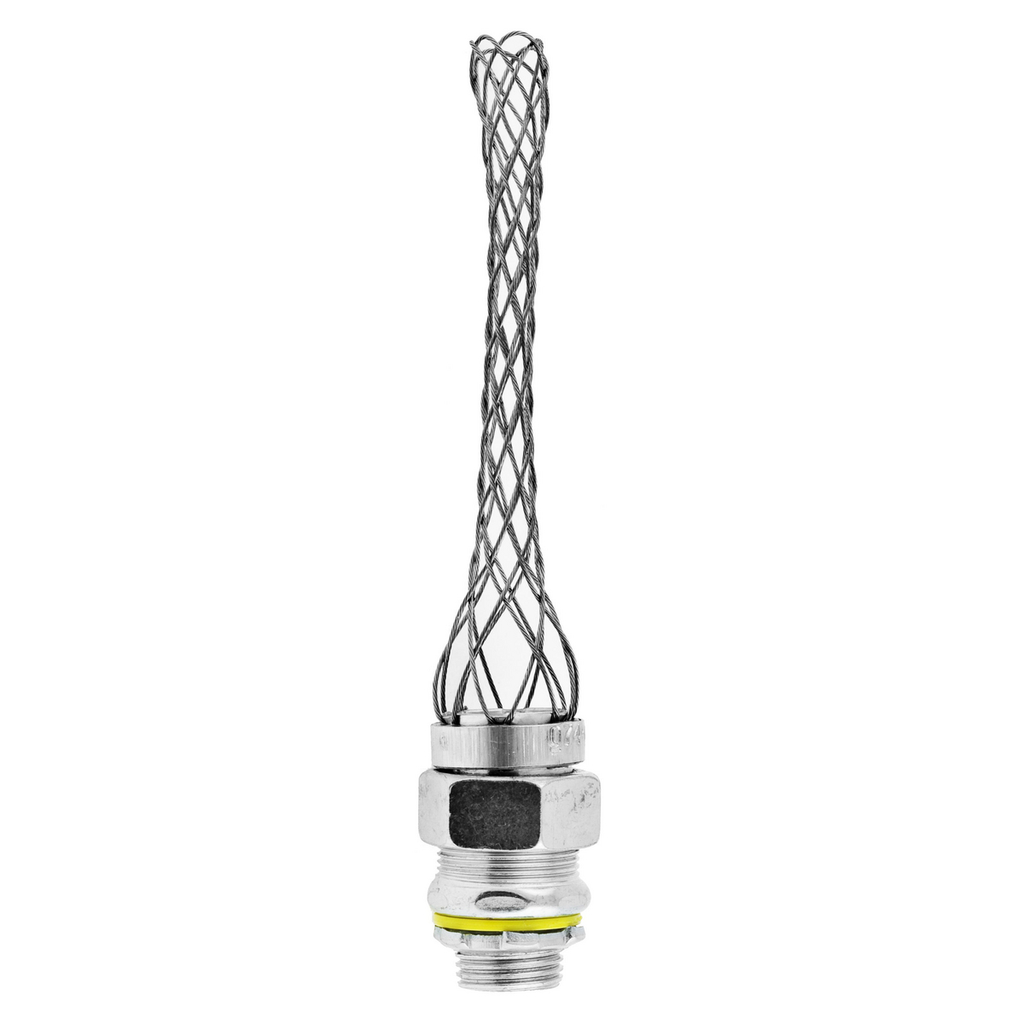

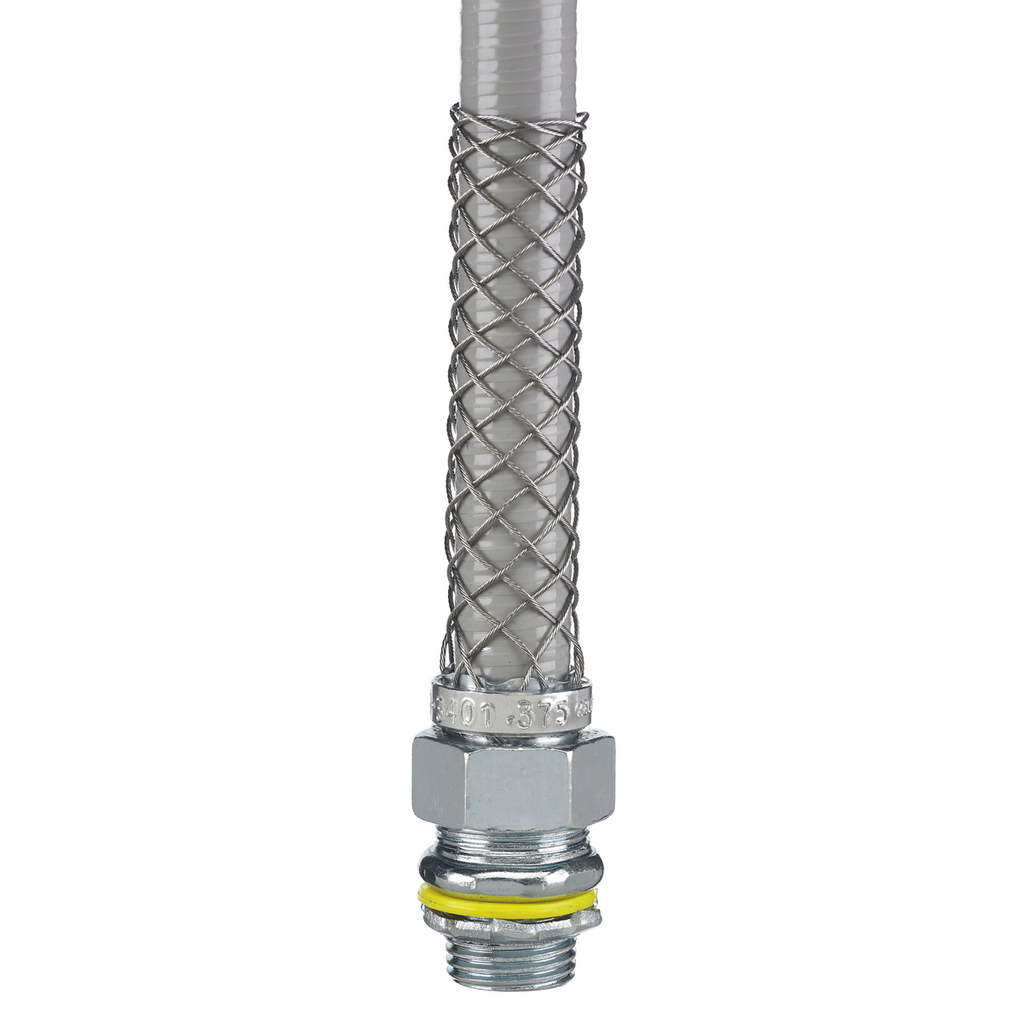

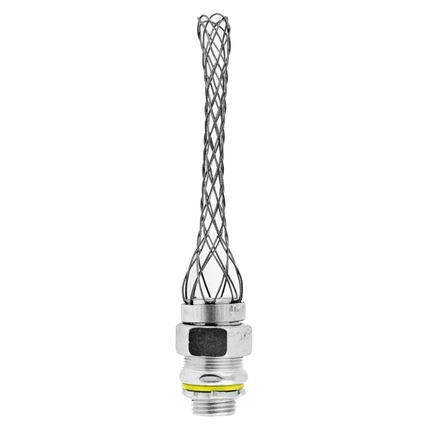

Kellems Wire Management Liquidtight System - Electrical Wire and Cable Protection

The Kellems Wire Management Liquidtight System, Straight, 1/2", Non-Insulated with Mesh, is designed for strain relief and protection of liquidtight metal conduit and PolyTuff® I non-metallic conduit. This product is suitable for electrical distributors and switchgear suppliers requiring robust wire and cable management solutions in hazardous and wet locations. It is engineered to prevent conduit pull-out and damage at the fitting, reducing equipment downtime and ensuring system reliability.

Specifications

• Application: ¬Ω" NPT
• Product Weight: 0.2000 lbs
• Color: Metallic
• Width: 1.330 in
• Material: Steel Fitting, Stainless Steel Mesh
• Mounting: Between Enclosure and Conduit
• Connection: Cap Nut
• NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
• Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 074093402

Features

• Steel fitting with stainless steel mesh for enhanced durability and corrosion resistance
• Non-insulated design for flexible conduit applications
• Provides strain relief to prevent conduit pull-out and damage at the fitting
• Compatible with liquidtight metal conduit and PolyTuff® I non-metallic conduit
• Cap nut connection for secure mounting between enclosure and conduit
• Meets safety requirements for hazardous and wet locations
