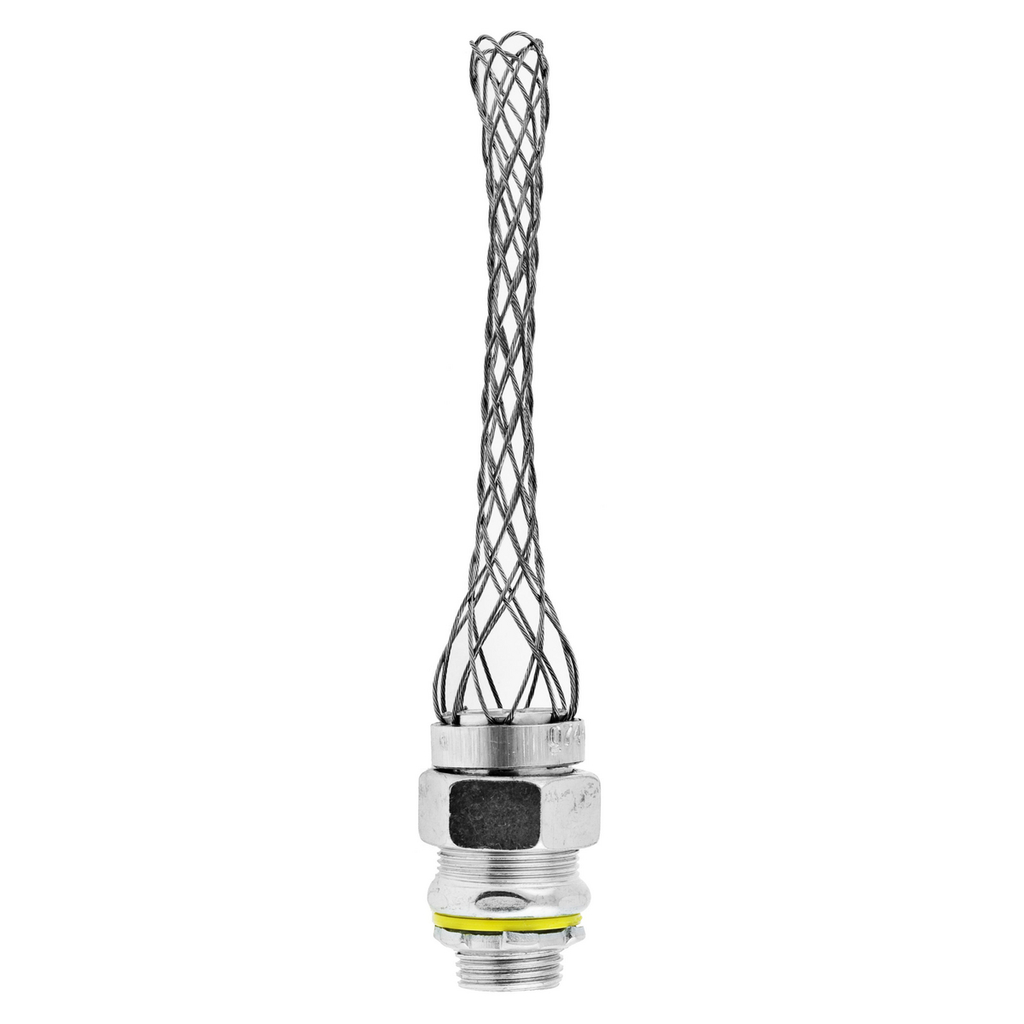

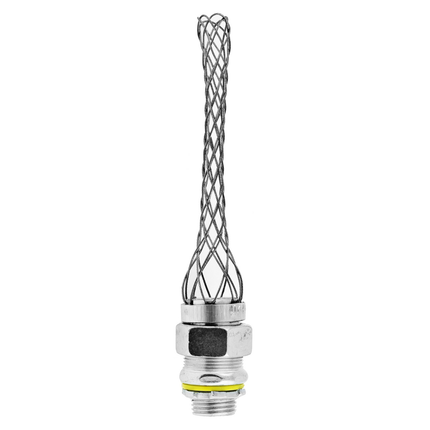

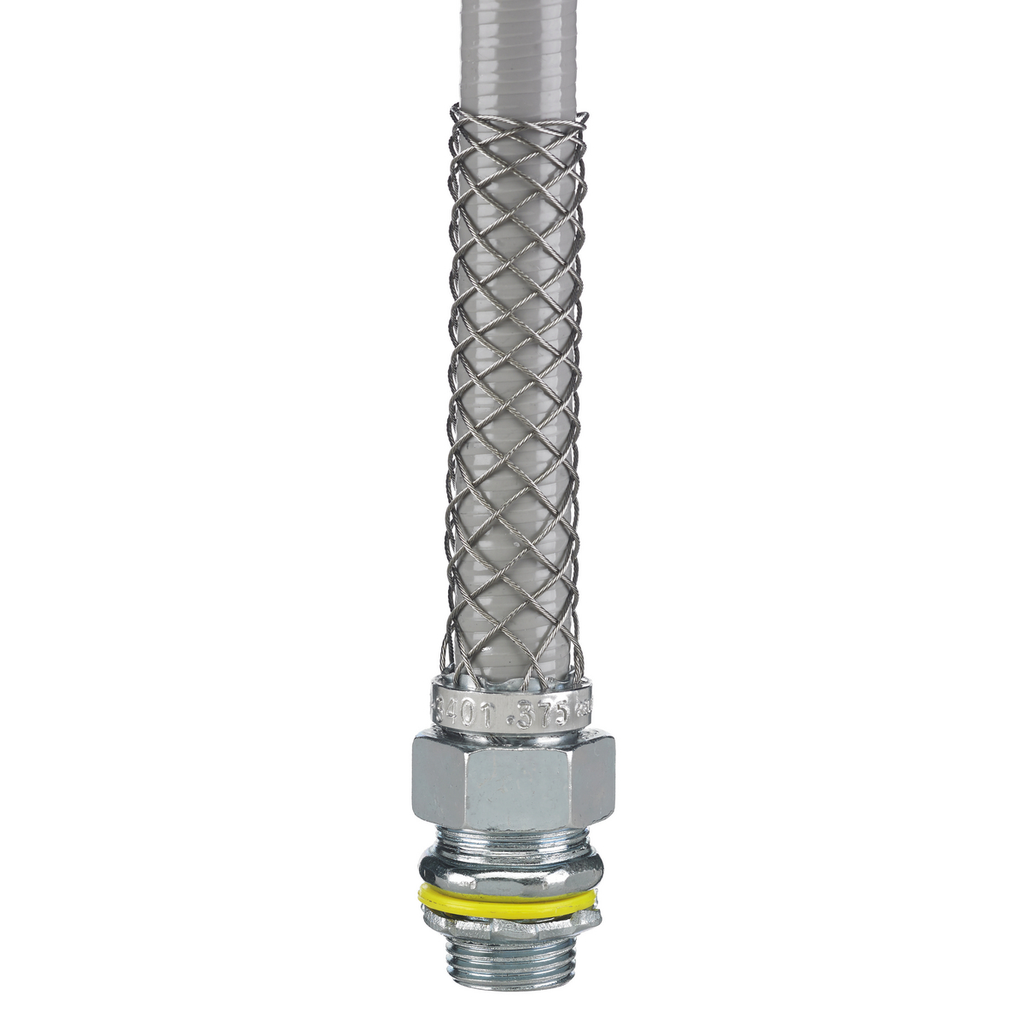

Kellems Wire Management, Liquidtight System, Straight, 1 1/2", Non-Insulated with Mesh – Wire and Cable Management

This Kellems Wire Management liquidtight system fitting is designed to provide secure and durable cable management solutions for electrical distributors and lighting solutions providers. It is a straight, non-insulated fitting with stainless steel mesh, intended for wire and cable applications requiring reliable strain relief and protection. The fitting is mounted between enclosure and conduit, featuring a cap nut connection to ensure a tight and secure fit. It is suitable for use in hazardous locations and wet environments when paired with a listed sealing ring, making it ideal for demanding industrial settings.

Specifications

• Application: 1¬Ω" NPT
• Product Weight: 1.1000 lbs
• Color: Metallic
• Width: 3.000 in
• Material: Steel Fitting, Stainless Steel Mesh
• Mounting: Between Enclosure and Conduit
• Connection: Cap Nut
• Made in USA: Yes
• NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
• Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
• Country of Origin: United States
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 074093406

Features

• Non-insulated design with stainless steel mesh for enhanced cable protection and strain relief
• Cap nut connection ensures secure mounting between enclosure and conduit
• Designed for use in hazardous locations with appropriate environmental sealing
• Durable steel fitting construction with corrosion-resistant stainless steel mesh
• Manufactured in the USA to meet high-quality standards
