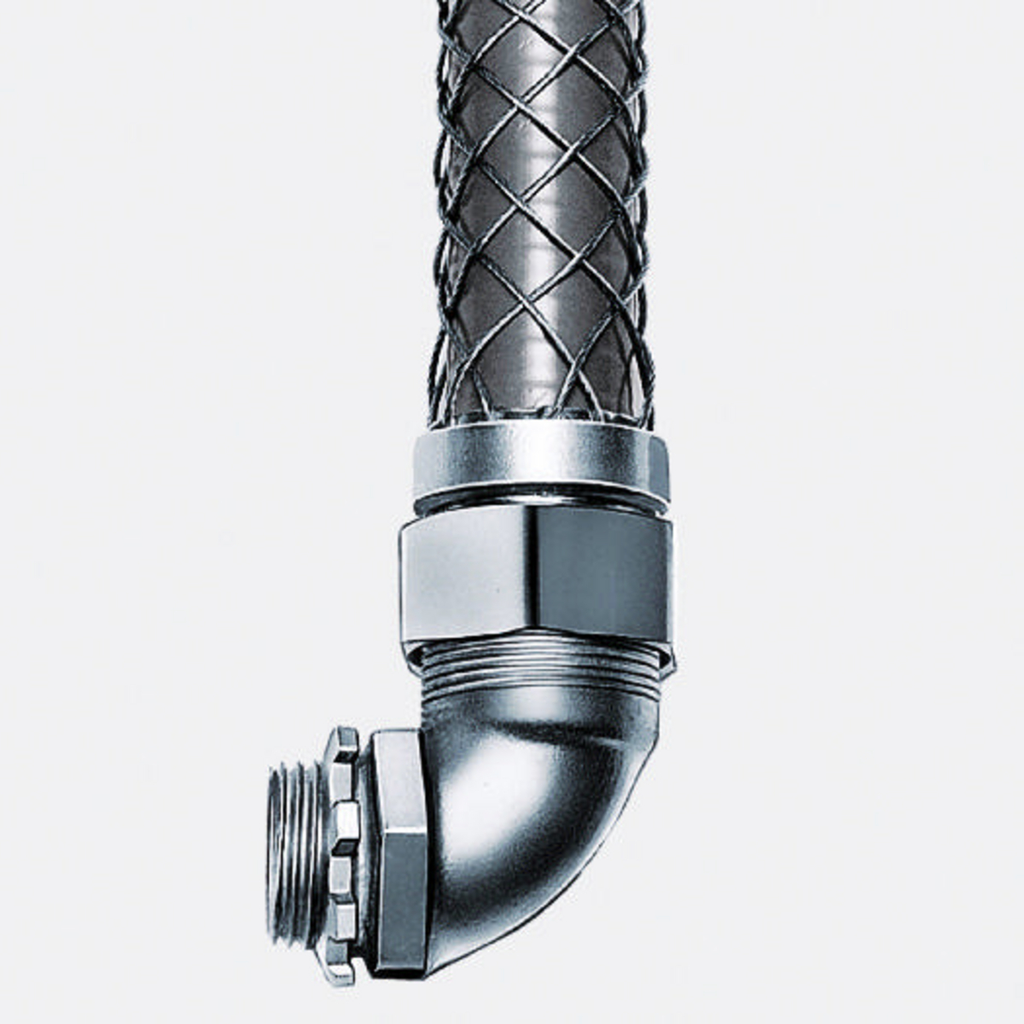

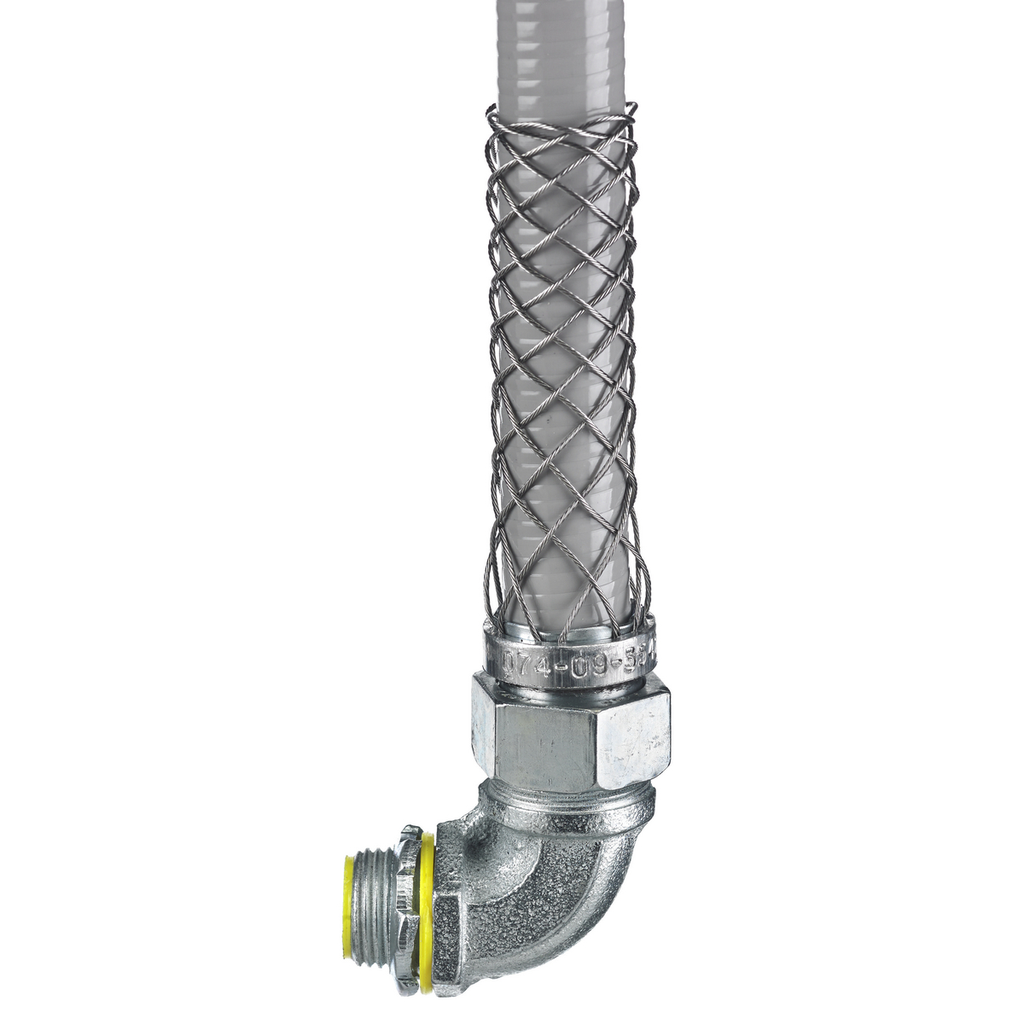

Kellems Wire Management Liquidtight System 90 Degree 3" Insulated with Mesh

This Kellems wire management product is a 90 Degree Male liquidtight system fitting designed for secure and durable conduit connections. It is intended for mounting between enclosure and conduit, offering reliable protection and strain relief in electrical installations. Suitable for use by electrical distributors and switchgear suppliers, it supports applications requiring robust wire and cable management under demanding environmental conditions.

Specifications

• Application: 90 Degree Male
• Material: Steel Fitting, Stainless Steel Mesh
• Color: Metallic
• Width: 5.6 in
• Connection: Cap Nut
• Mounting: Between Enclosure and Conduit
• Product Weight: 12.6 lbs
• NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
• Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
• Country of Origin: Puerto Rico
• Manufacturer Part #: 074093552

Features

• Insulated with stainless steel mesh for enhanced durability and protection
• Designed to maintain watertight integrity in wet and hazardous environments
• Provides strain relief and secure conduit connection to prevent cable damage
• Metallic finish for corrosion resistance and long service life
