Kellems Wire Management, Liquidtight System, 90 Degree, 3/8", Insulated with Mesh
SKU: #135864
Part: #074093541
UPC: 783585331973
Kellems Wire Management, Liquidtight System, 90 Degree, 3/8", Insulated with Mesh
SKU: #135864
Part: #074093541
UPC: 783585331973
Next day delivery
Description
Kellems Wire Management Liquidtight System 90 Degree 3/8" Insulated with Mesh

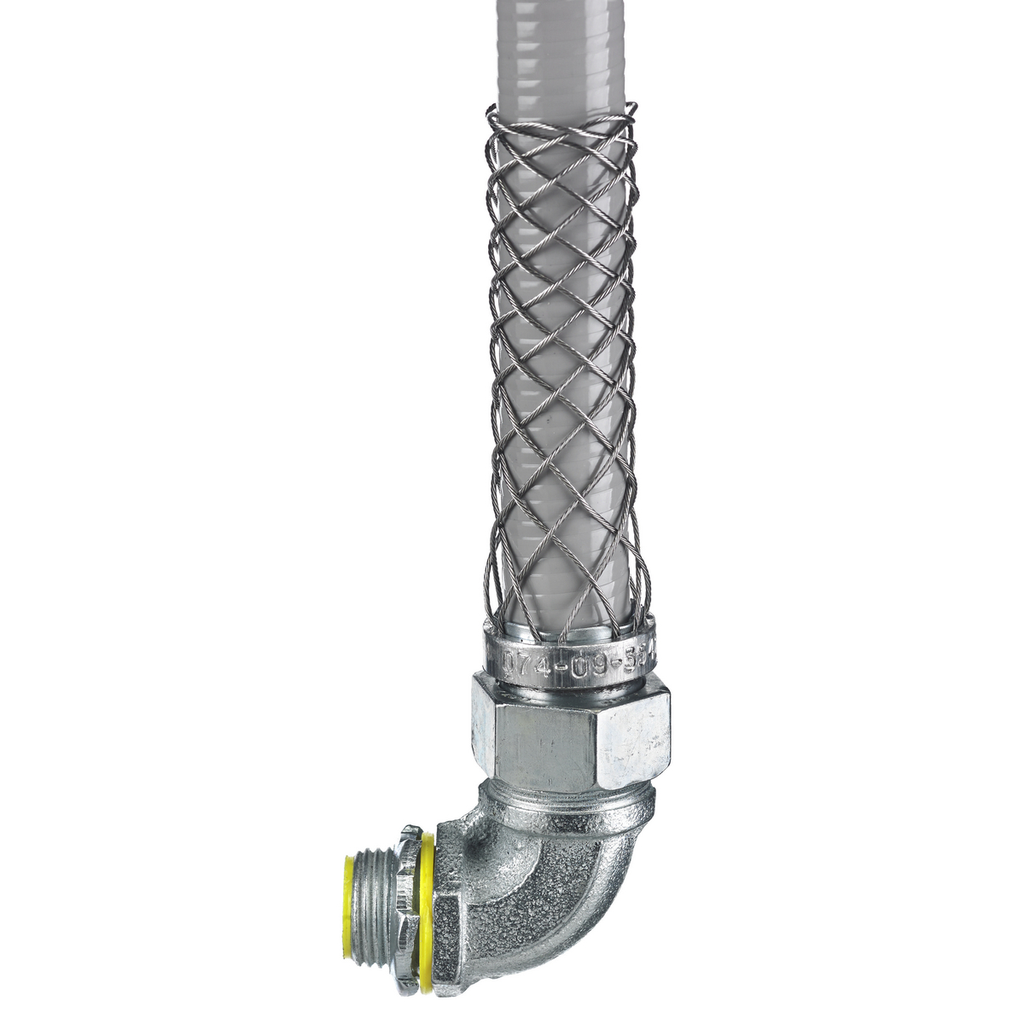

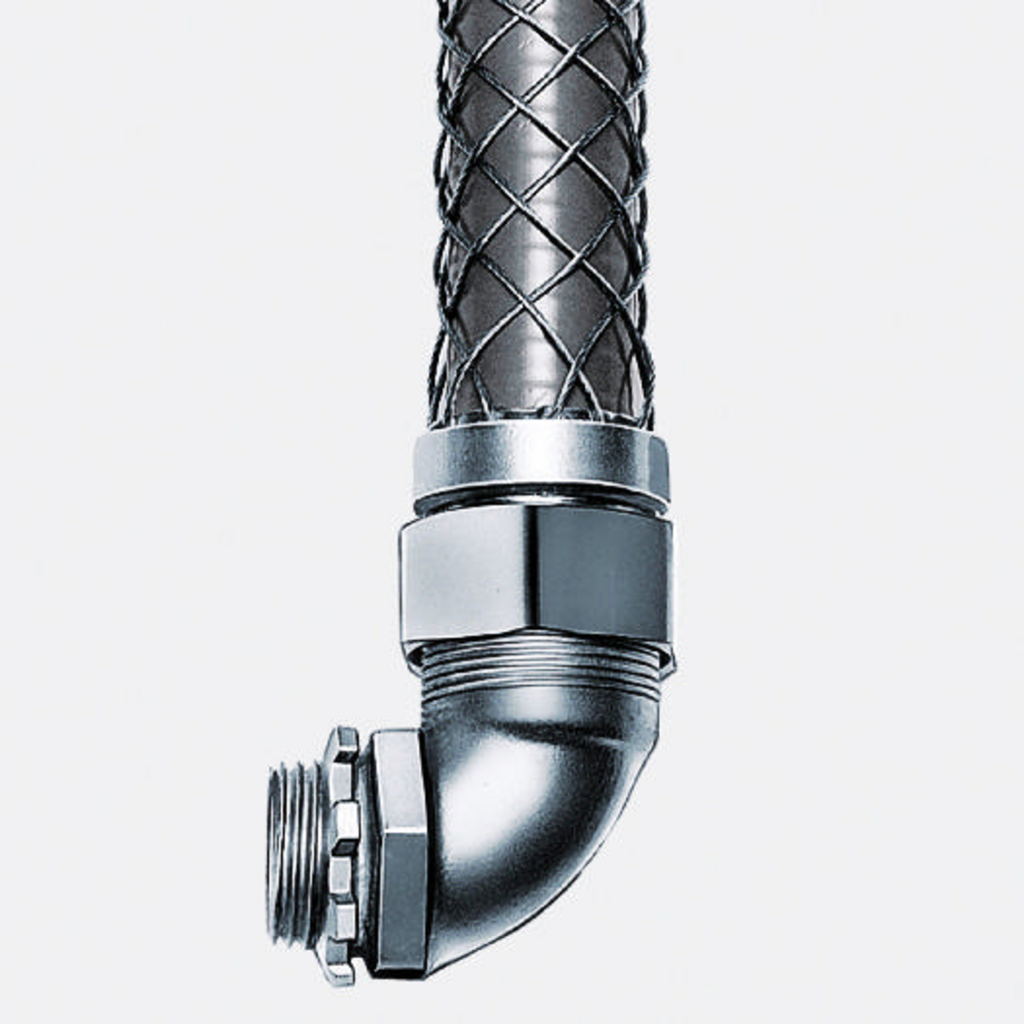

This Kellems wire management product is a 90-degree male liquidtight conduit grip designed for use between enclosures and conduit. It serves as strain relief to prevent conduit pull-out and damage at fittings, making it suitable for electrical distributors, lighting solutions, and wire and cable applications requiring secure conduit connections. The product features a cap nut connection and is insulated with stainless steel mesh for enhanced durability and protection in demanding environments.
Specifications
- Application: 90 Degree Male
- Material: Steel Fitting, Stainless Steel Mesh
- Color: Metallic
- Width: 2.000 in
- Connection: Cap Nut
- Mounting: Between Enclosure and Conduit
- Product Weight: 0.3000 lb
- NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
- Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
- Country of Origin: Puerto Rico
- Manufacturer Name: Hubbell Wiring Device-Kellems
- Manufacturer Part #: 074093541
Features
- Helps prevent conduit pull-out and damage at fitting
- Reduces equipment downtime
- Insulated with stainless steel mesh for enhanced protection
- UL Listed and CSA Certified for safety and reliability
- Operates in temperatures from -30°F to +225°F (-34°C to +107°C)
- Flammability rated UL 94-HB and UL 94-V2
