Kellems Wire Management, Liquidtight System, 90 Degree, 2", Non-Insulated with Mesh
SKU: #135691
Part: #074093428
UPC: 783585331768
Kellems Wire Management, Liquidtight System, 90 Degree, 2", Non-Insulated with Mesh
SKU: #135691
Part: #074093428
UPC: 783585331768
Next day delivery
Description

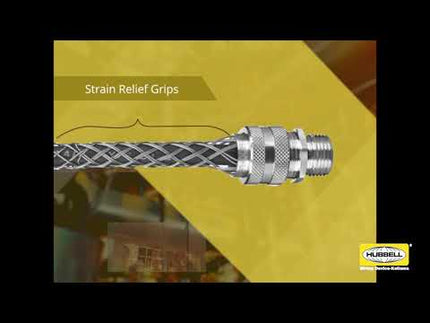

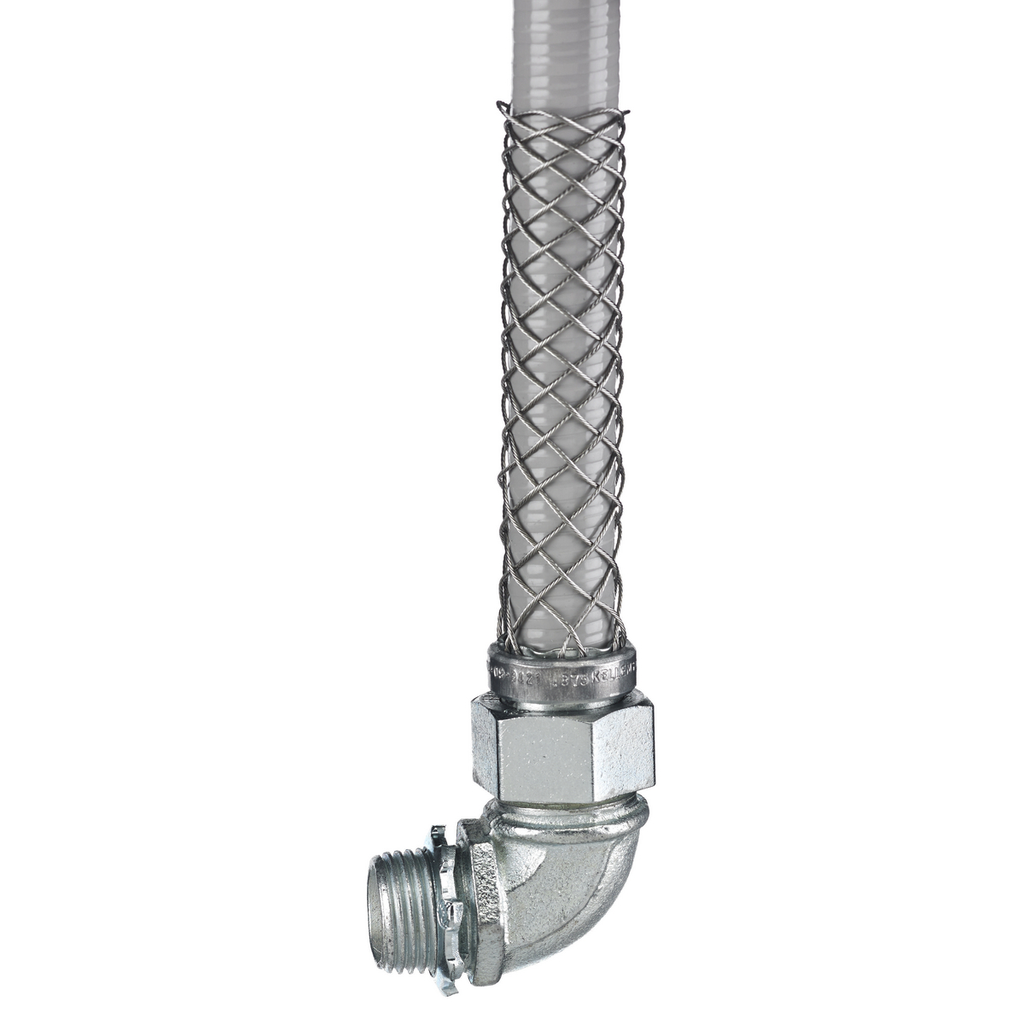

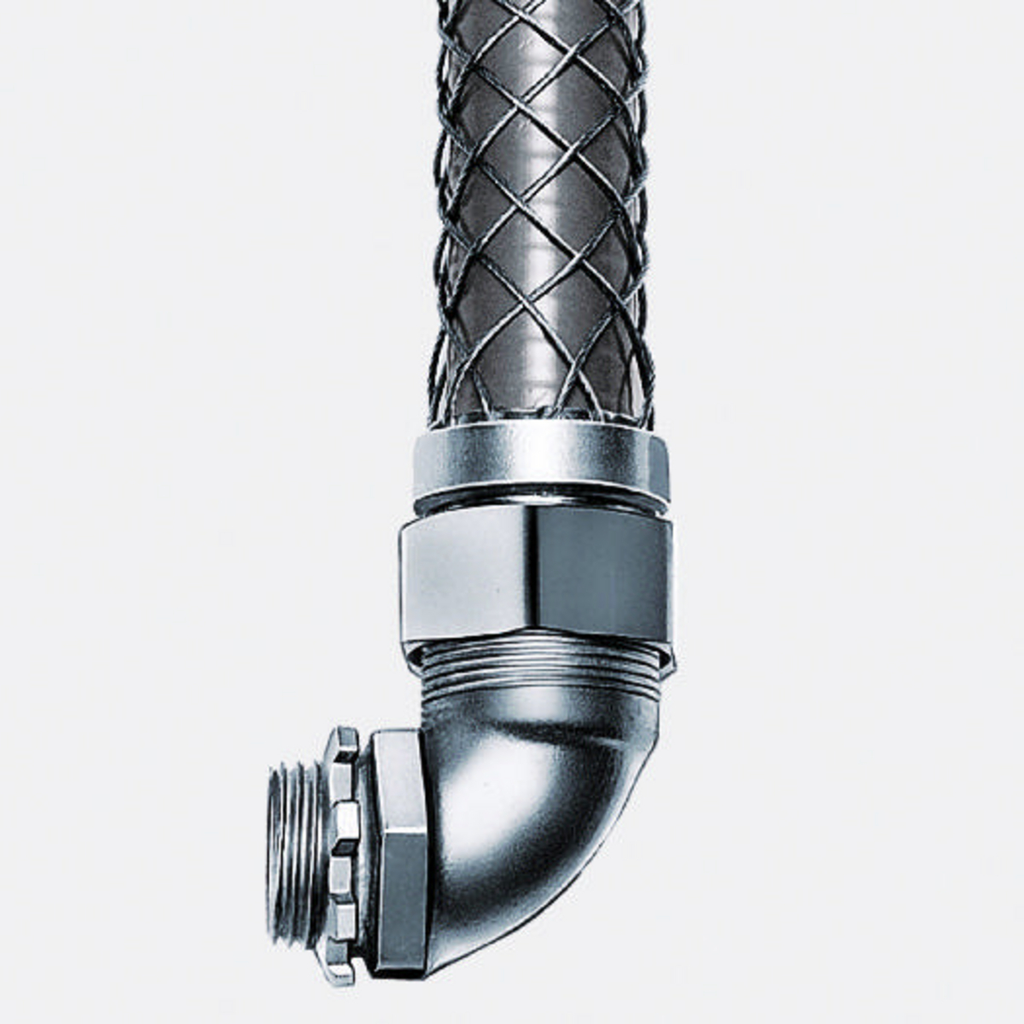

Kellems Wire Management Liquidtight System 90 Degree Male Fitting
This Kellems Wire Management product is a 90 Degree Male fitting designed for liquidtight conduit applications. It serves as a strain relief to prevent conduit pull-out and damage at the fitting, making it suitable for electrical distributors and lighting solutions requiring secure wire and cable management. The fitting is intended for mounting between enclosure and conduit, offering reliable connection with a cap nut. It is constructed to meet rigorous environmental and hazardous location standards, making it a dependable choice for switchgear suppliers and industrial electrical applications.
Specifications
- Application: 90 Degree Male
- Material: Steel Fitting, Stainless Steel Mesh
- Color: Metallic
- Width: 5.000 in
- Connection: Cap Nut
- Product Weight: 2.4000 lbs
- Mounting: Between Enclosure and Conduit
- NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
- Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
- Made in USA: Yes
- Country of Origin: United States
- Manufacturer Part #: 074093428
Features
- Helps prevent conduit pull-out and damage at fitting
- Reduces equipment downtime
- Constructed with stainless steel mesh for durability and corrosion resistance
- Meets UL Listed and CSA Certified standards
- Operates in temperatures from -30°F to +225°F (-34°C to +107°C)
- Flammability rating UL 94-HB and UL 94-V2
