Kellems Wire Management, Liquidtight System, 90 Degree, 1", Insulated with Mesh
SKU: #135877
Part: #074093544
UPC: 783585332000
Kellems Wire Management, Liquidtight System, 90 Degree, 1", Insulated with Mesh
SKU: #135877
Part: #074093544
UPC: 783585332000
Next day delivery
Description

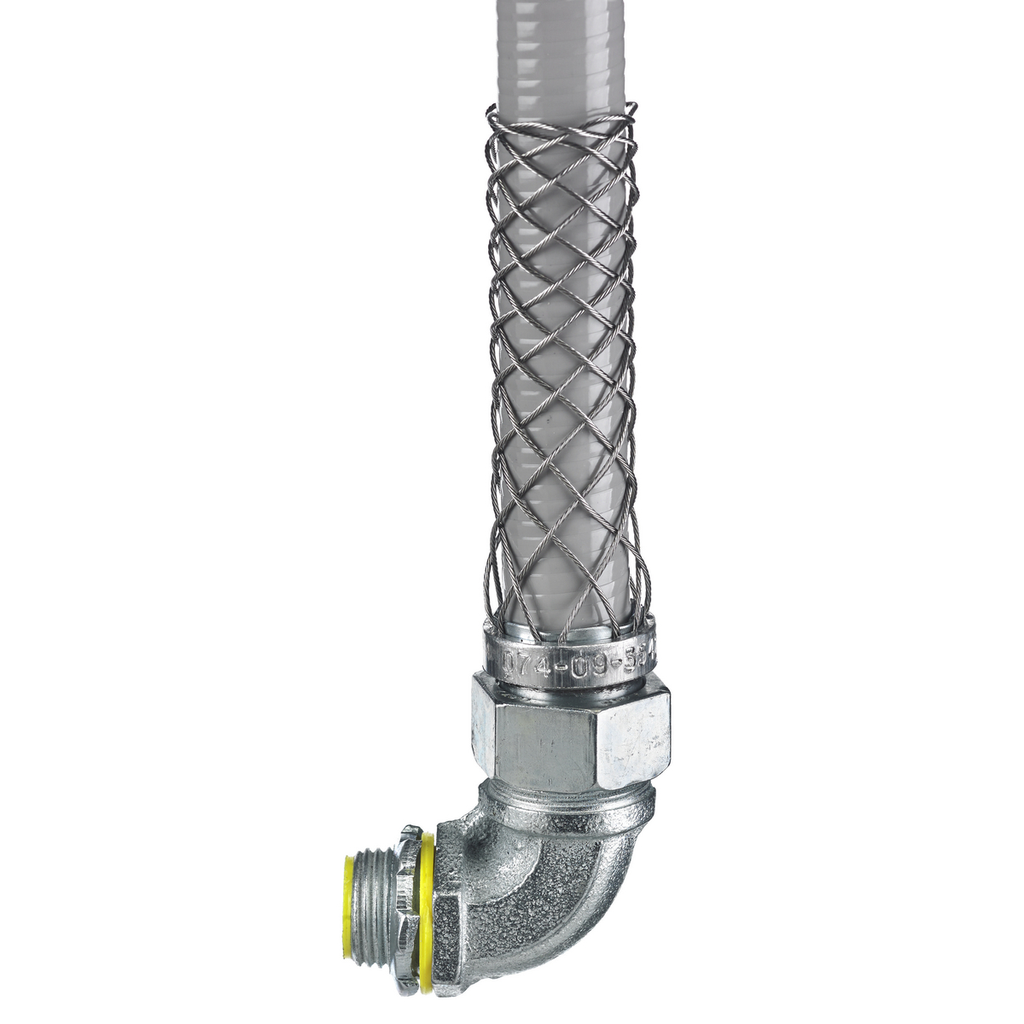

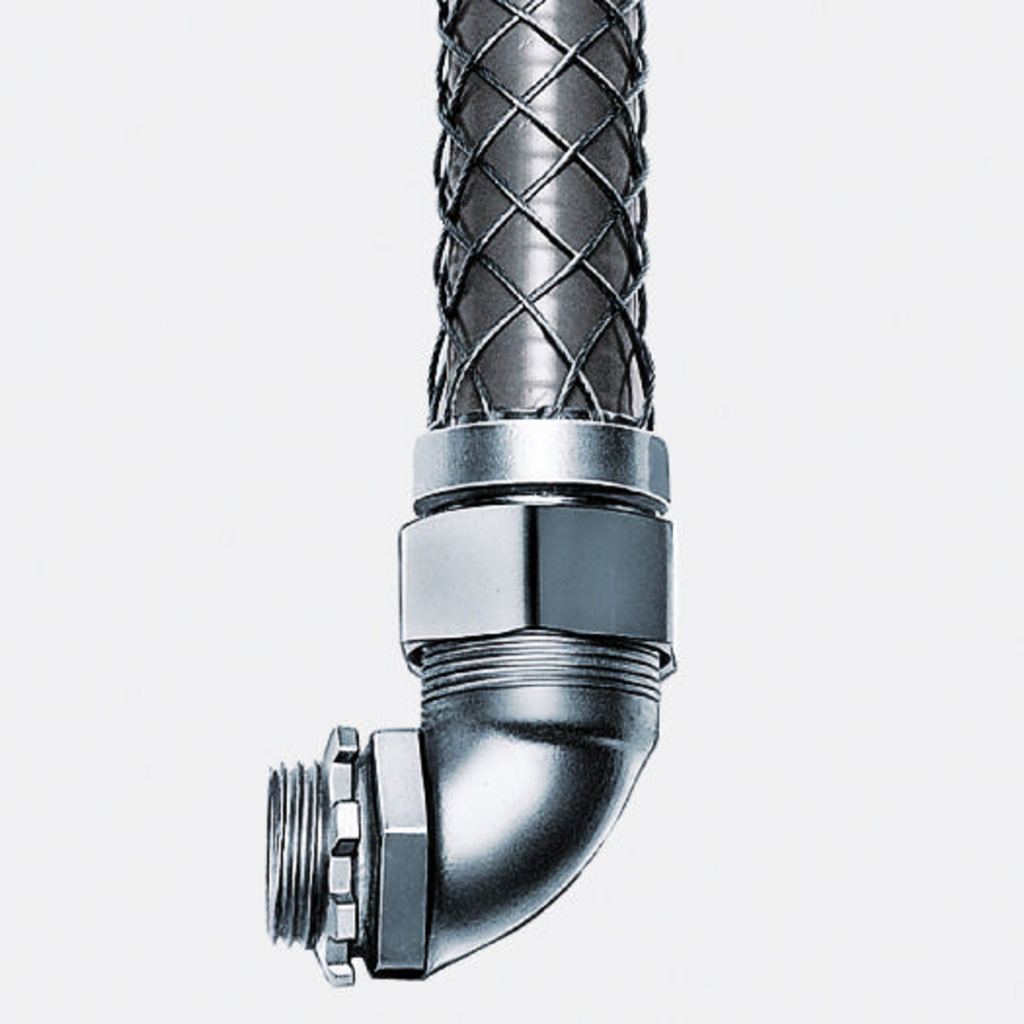

Kellems Wire Management Liquidtight System 90 Degree Fitting
The Kellems Wire Management Liquidtight System 90 Degree fitting is a specialized wire management solution designed for secure and durable conduit connections in demanding electrical installations. Ideal for electrical distributors and lighting solutions providers, this 1-inch insulated fitting features a 90-degree male application with a cap nut connection, facilitating installation between enclosures and conduits. Constructed from steel with stainless steel mesh insulation, it ensures robust protection and longevity in harsh environments.
Specifications
- Application: 90 Degree Male
- Connection: Cap Nut
- Material: Steel Fitting, Stainless Steel Mesh
- Color: Metallic
- Width: 5.000 in
- Product Weight: 0.6500 lbs
- Mounting: Between Enclosure and Conduit
- NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
- Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
- Country of Origin: Puerto Rico
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: 074093544
Features
- 90-degree male fitting for precise conduit routing
- Insulated with stainless steel mesh for enhanced durability and protection
- Cap nut connection ensures secure and leakproof assembly
- Constructed from steel for mechanical strength and longevity
- Meets hazardous location requirements with appropriate NEMA ratings
- Designed for mounting between enclosure and conduit for efficient wire management
- Suitable for wet locations with proper sealing ring installation
