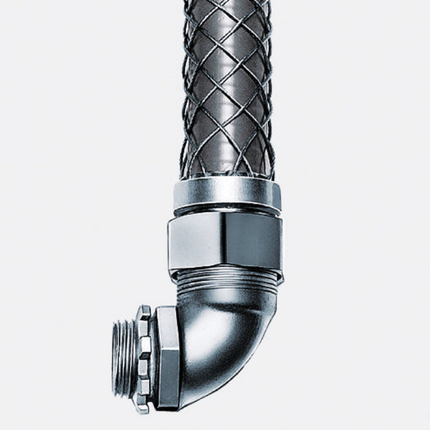

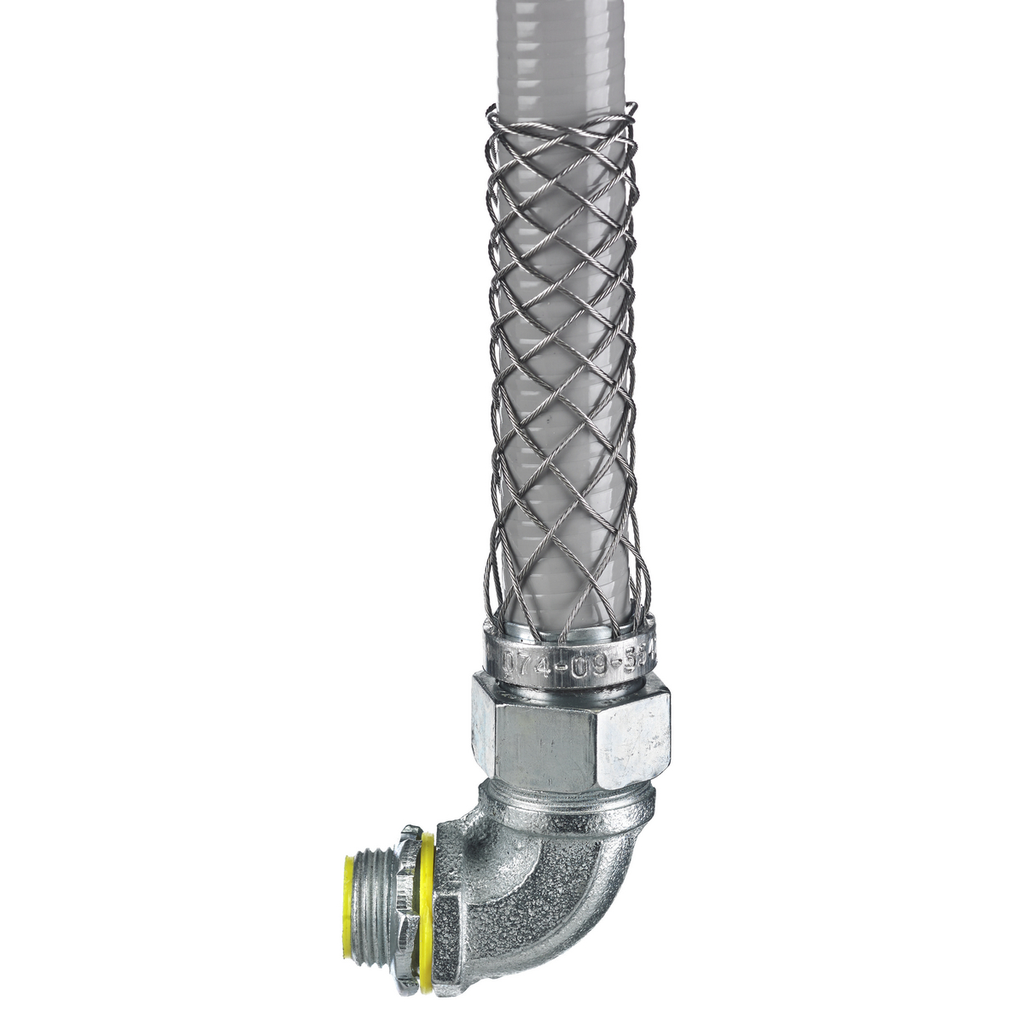

Kellems Wire Management, Liquidtight System, 90 Degree, 1/2", Insulated with Mesh
SKU: #135867
Part: #074093542
UPC: 783585331980
Kellems Wire Management, Liquidtight System, 90 Degree, 1/2", Insulated with Mesh
SKU: #135867
Part: #074093542
UPC: 783585331980
Next day delivery
Description
Kellems Wire Management Liquidtight System, 90 Degree, 1/2" – Electrical Distributor Wire and Cable Fitting
The Kellems Wire Management Liquidtight System is a 90-degree male fitting designed for secure wire and cable management in electrical distribution and lighting solutions. Manufactured by Hubbell Wiring Device-Kellems, this steel fitting with stainless steel mesh insulation is engineered to provide durable, reliable conduit connections in demanding environments. It is suitable for mounting between enclosures and conduit, making it ideal for use in switchgear supplier applications, especially where hazardous location compliance and wet location suitability are required.
- Application: 90 Degree Male
- Material: Steel Fitting, Stainless Steel Mesh
- Color: Metallic
- Connection: Cap Nut
- Width: 2.5 in (63.5 mm)
- Product Weight: 0.3 lbs
- Mounting: Between Enclosure and Conduit
- NEMA Rating: Suitable for hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
- Environmental Conditions: Suitable for wet locations when a listed sealing ring is used between box and fitting
- Operating Temperature Range: -30°F to +225°F (-34°C to +107°C)
- Flammability Rating: UL 94-HB and UL 94-V2
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer Part Number: 074093542
- UPC: 783585331980
Specifications
- Provides superior cable management and protection for electrical wiring in harsh environments
- Stainless steel mesh insulation offers enhanced durability and resistance to corrosion
- Zinc plated steel body and components ensure long-lasting performance
- Cap nut connection facilitates secure and leakproof conduit attachment
- Designed to prevent conduit pull-out and damage at the fitting, reducing equipment downtime
- Meets UL and CSA safety standards for hazardous locations
- Suitable for use in wet and corrosive environments common in industrial and commercial electrical installations
- Easy installation between enclosure and conduit for efficient wiring setups
Features
- Customer Use Drawing
- Online eCatalog
- Hubbell Wiring Device-Kellems Website
