Kellems Wire Management, Liquidtight System, 45 Degree, 1 1/2", Non-Insulated with Mesh
SKU: #135736
Part: #074093446
UPC: 783585331850
Kellems Wire Management, Liquidtight System, 45 Degree, 1 1/2", Non-Insulated with Mesh
SKU: #135736
Part: #074093446
UPC: 783585331850
Description

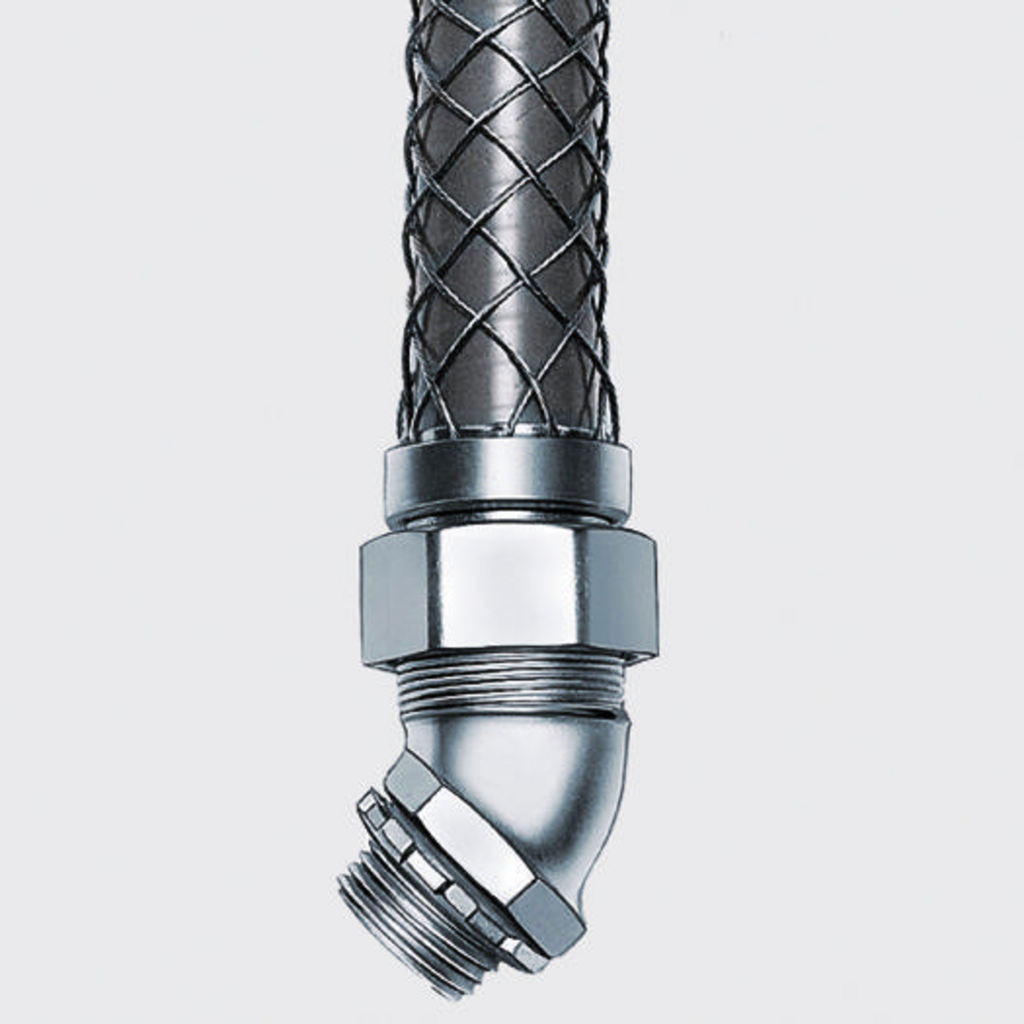

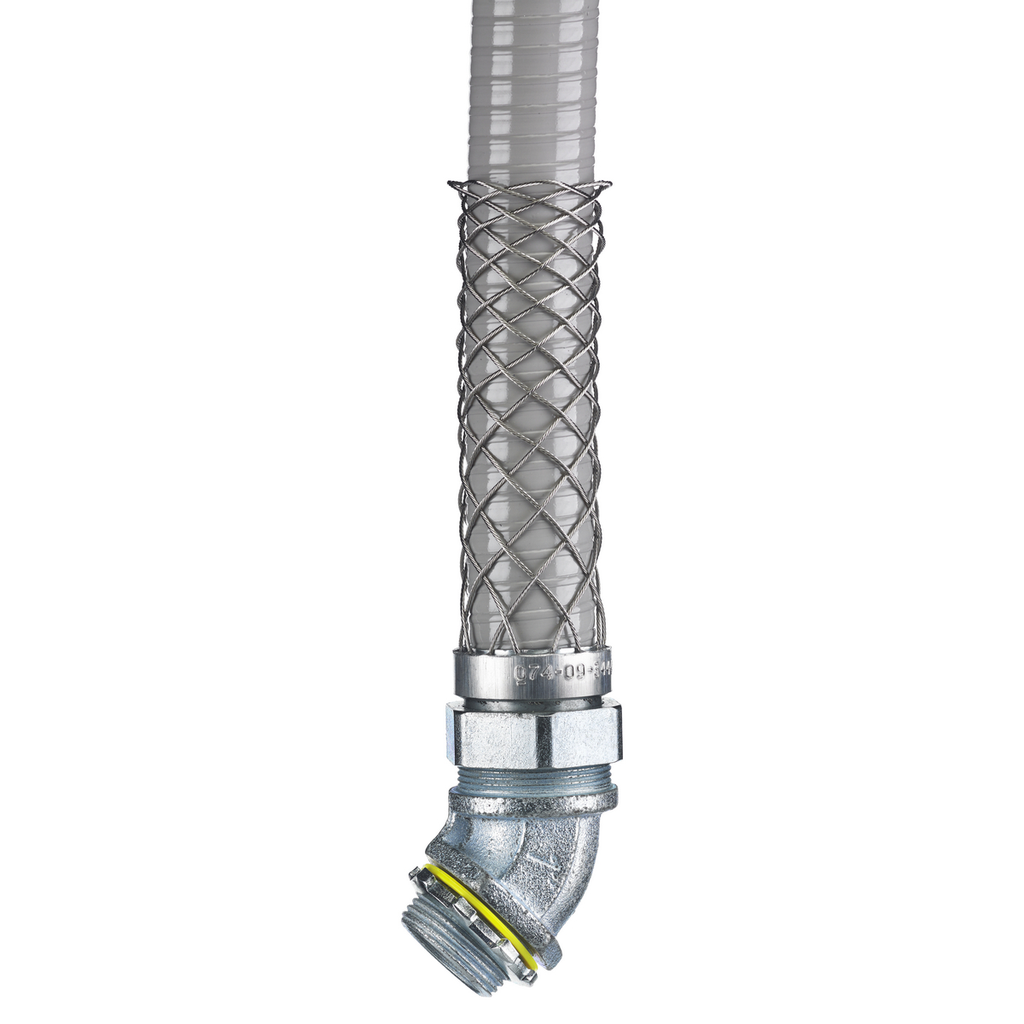

Kellems Wire Management, Liquidtight System, 45 Degree, 1 1/2" Non-Insulated with Mesh – Wire Management Solutions
This Kellems Wire Management fitting is designed for liquidtight conduit applications requiring a 45 degree male connection. Manufactured by Hubbell Wiring Device-Kellems, this product provides reliable wire and cable protection in demanding industrial environments. Suitable for use between enclosures and conduit, it supports electrical distributors and switchgear suppliers with durable, corrosion-resistant components for secure wiring solutions.
Specifications
- Application: 45 Degree Male
- Material: Steel Fitting, Stainless Steel Mesh
- Color: Metallic
- Width: 2.5 in
- Connection: Cap Nut
- Mounting: Between Enclosure and Conduit
- NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
- Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
- Product Weight: 1.1 lb
- Country of Origin: Puerto Rico
- Manufacturer Part #: 074093446
Features
- Non-insulated design with stainless steel mesh for enhanced durability and protection
- Liquidtight system ensures leakproof integrity and connectivity despite continuous flexing, vibration, and corrosivity
- Cap nut connection provides secure and reliable attachment
- Meets stringent hazardous location requirements for safety and compliance
- Designed for installation between enclosure and conduit to maintain system integrity
