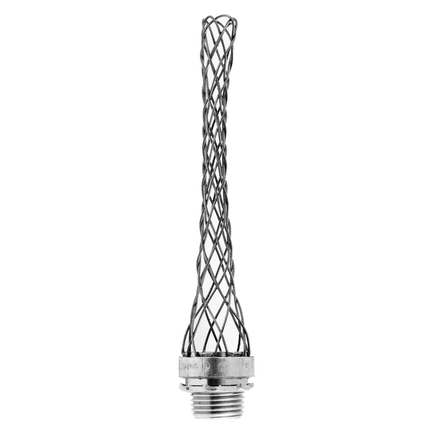

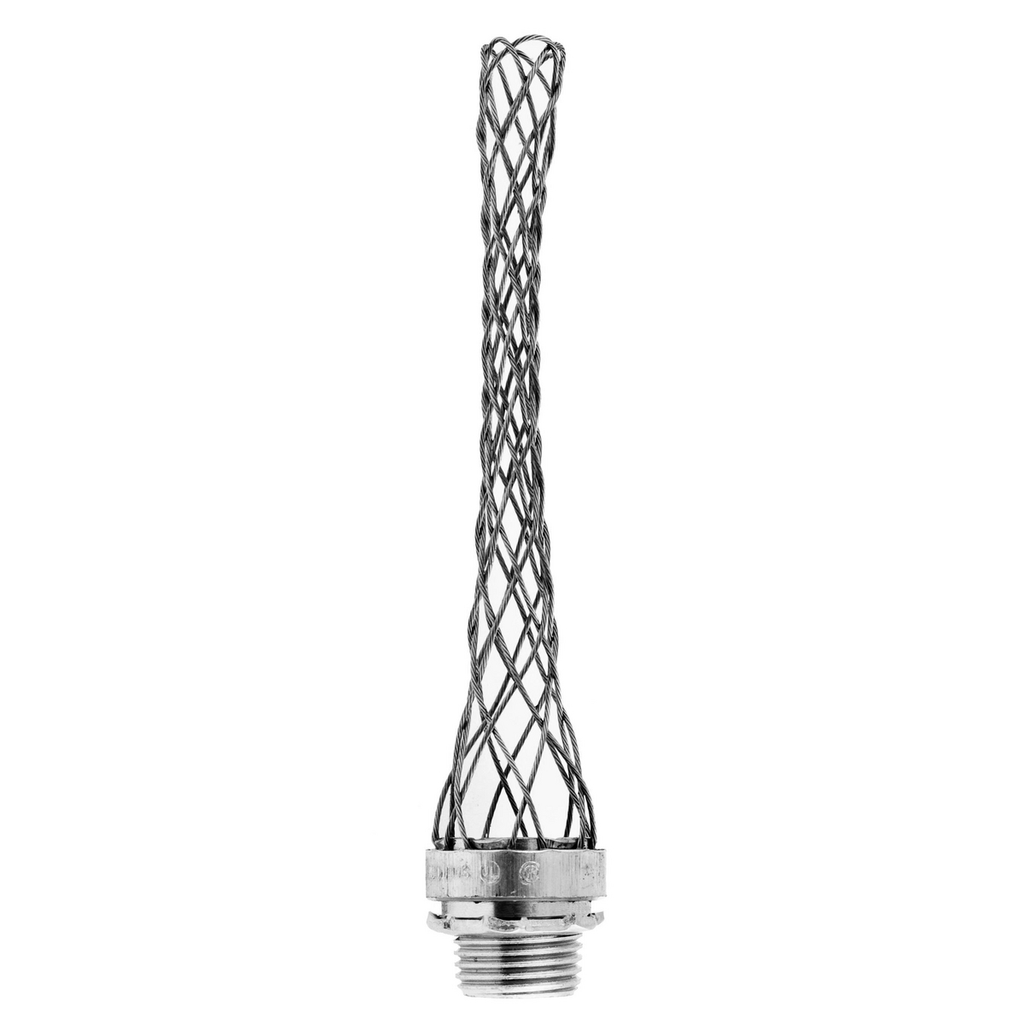

Kellems Wire Management Dusttight Grips Strain Relief - Wire and Cable Solutions

This Kellems Wire Management Dusttight Grip provides strain relief for insulated cables in light duty applications. Designed for wire and cable management, it is suitable for use by electrical distributors and switchgear suppliers requiring durable and reliable cable protection. The grip accommodates cable diameters from 0.43 to 0.54 inches and features a non-insulated, wide-range design to ensure secure strain relief in various installations.

Specifications

• Application: Light Duty
• Cable Diameter Range: 0.43 in - 0.54 in
• Display Size: 1/2" NPT
• Thread Size: 1/2" NPT
• Material: Aluminum Fittings, Galvanized Steel Mesh
• Construction: Woven
• Mounting: Locknut or Tapped Hole
• Color: Metallic
• Product Weight: 0.0500 lbs
• Industry Standard(s): UL Listed
• RoHS Compliance: Yes
• Environmental Ratings: UL 94HB (Strand Grip), UL 94V-2 (Fitting)
• Hazardous Location Suitability: Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 per NEC
• UPC: 783585330020
• Manufacturer Part #: 073031202
• Country of Origin: China

Features

• Aluminum fitting provides corrosion resistance and durability
• Galvanized steel mesh offers high strength and secure cable grip
• Woven construction enhances flexibility and strain relief effectiveness
• Non-insulated design suitable for a wide range of cable sizes
• Mounting options include locknut or tapped hole for versatile installation
• Complies with UL flammability standards for safety
• Suitable for use in hazardous locations per NEC classifications
