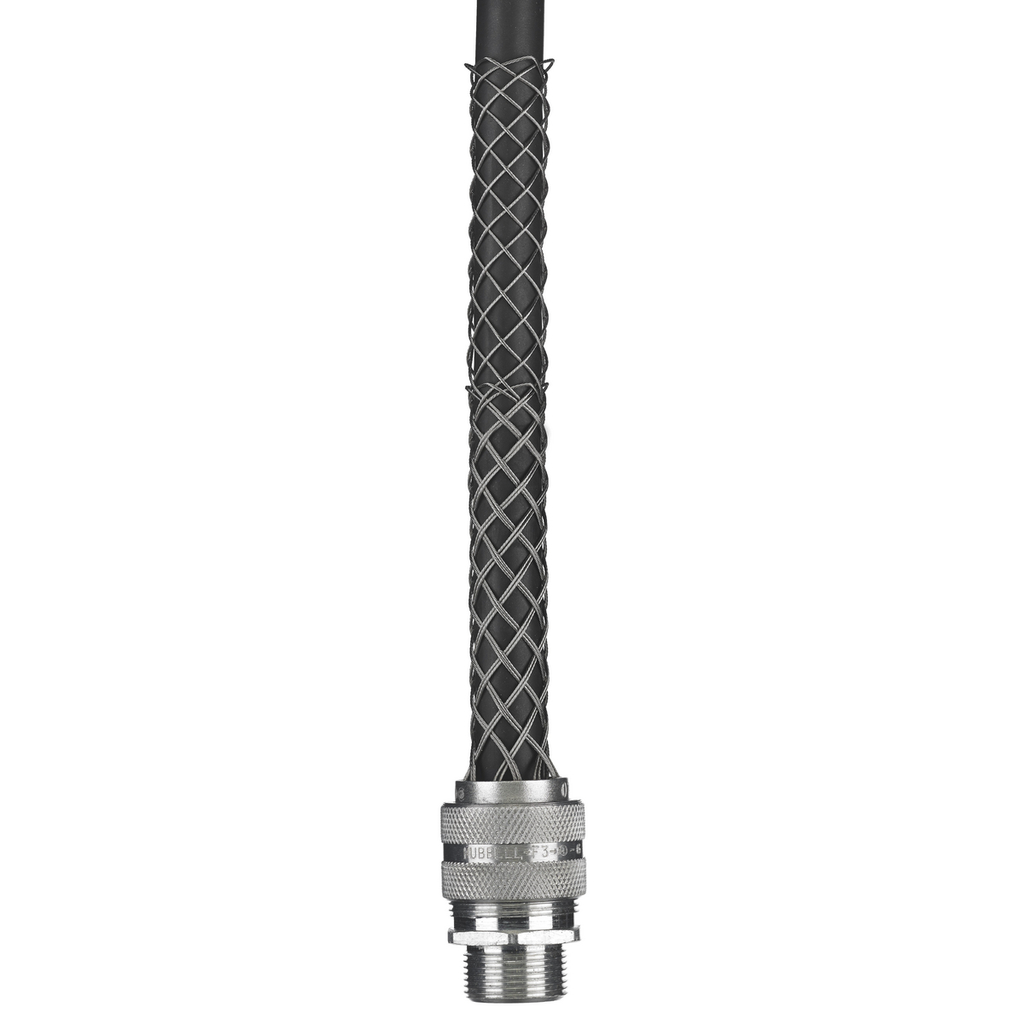

Kellems Wire Management Deluxe Cord Grips – Straight Metric Male M32 Thread

The Kellems Wire Management Deluxe Cord Grips are designed to provide reliable strain relief and protection for electrical cables in industrial and commercial applications. These straight metric male cord grips with M32 thread are suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable management solutions. They are engineered to maintain cable integrity by controlling bend radius and reducing tension, making them ideal for wiring installations in harsh environments including wet locations when used with a listed sealing ring.

Specifications

• Application: Straight Male - Form 4
• Conductor Range: 0.75-0.875 in (1.90-2.22 mm)
• Material: Aluminum Fittings, Stainless Steel Mesh
• Color: Metallic
• Width: 2.000 in
• Mounting: Locknut or Tapped Opening
• Number of Conductors: Single
• Product Weight: 0.2200 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Aluminum fitting provides corrosion resistance and durability
• Stainless steel mesh braid offers additional corrosion resistance
• Neoprene bushing ensures oil and watertight sealing
• UL Listed and CSA Certified for safety and compliance
• Suitable for use in hazardous locations including Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 per NEC
• Operating temperature range from –30°F to +240°F (–34°C to +115°C)
• Wet location suitability when used with a listed sealing ring between box and fitting
