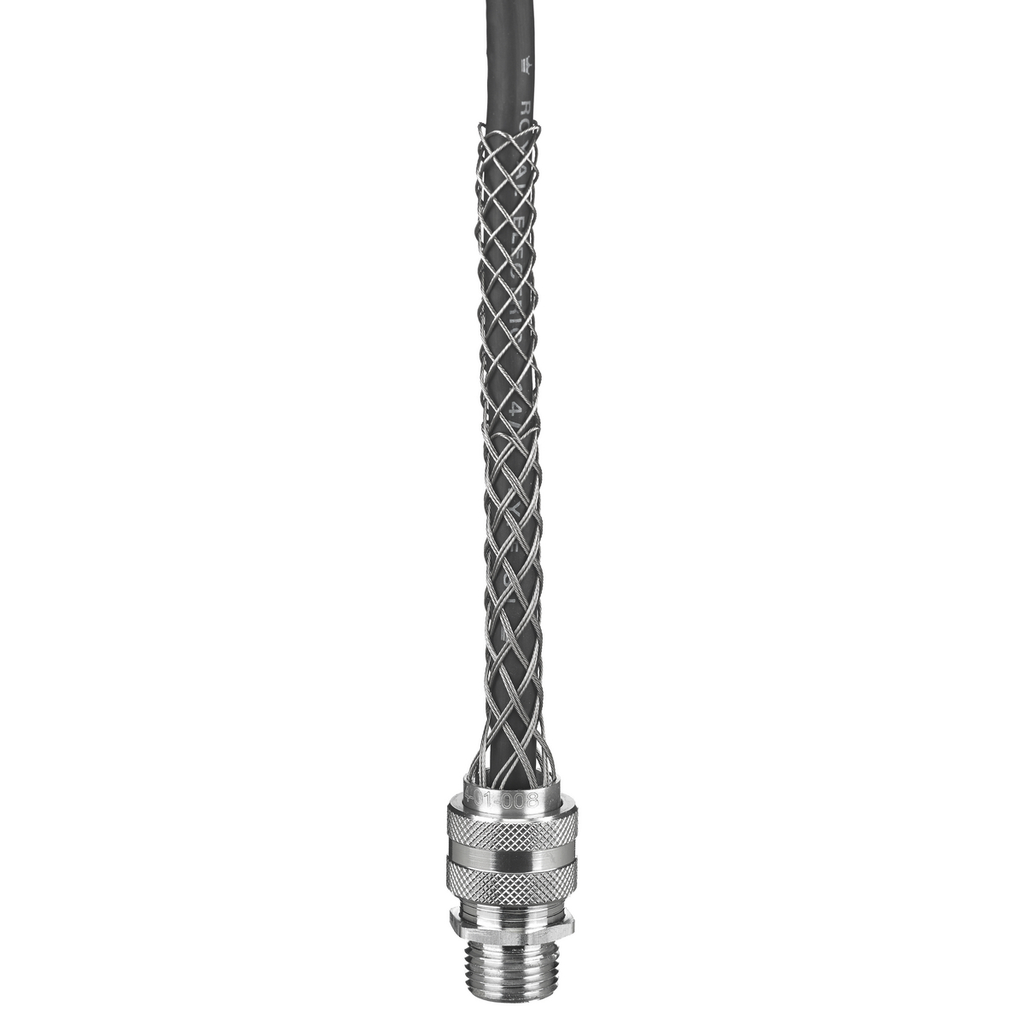

Kellems Wire Management Deluxe Cord Grips – Straight Male, 3.000-3.250" with Mesh

This deluxe cord grip from Hubbell Wiring Device-Kellems is designed for secure wire management in electrical distribution and lighting solutions. It features a straight male form 8 design suitable for wire and cable applications requiring durable fittings. The product is well-suited for use in wet locations when installed with a listed sealing ring, making it a reliable choice for switchgear suppliers and electrical distributors needing robust cable protection and strain relief.

Specifications

• Application: Straight Male - Form 8
• Conductor Range: 3-3.25 in (7.62-8.25 mm)
• Material: Aluminum Fittings, Stainless Steel Mesh
• Color: Metallic
• Width: 5.250 in
• Product Weight: 2.85 lbs
• Mounting: Locknut or Tapped Opening
• Number of Conductors: Single
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 074011189
• Country of Origin: United States
• Made in USA: Yes
• Environmental Conditions: Suitable for use in wet locations when used with a listed sealing ring between box and fitting

Features

• Durable aluminum fittings combined with stainless steel mesh provide robust mechanical protection and corrosion resistance
• Designed for liquidtight applications with insulated cables
• Compatible with locknut or tapped opening mounting options for flexible installation
• Meets hazardous location requirements per National Electric Code for Class I Div. 2, Class II Div. 1 & 2, and Class III Div. 1 & 2
• Manufactured in the USA ensuring quality and compliance with industry standards
