Kellems Wire Management, Deluxe Cord Grips, Straight Male, 1.812-1.937", 2" with Mesh
SKU: #135548
Part: #074011261
UPC: 783585330884
Kellems Wire Management, Deluxe Cord Grips, Straight Male, 1.812-1.937", 2" with Mesh
SKU: #135548
Part: #074011261
UPC: 783585330884
Next day delivery
Description

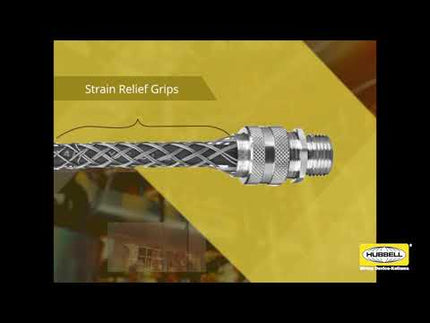

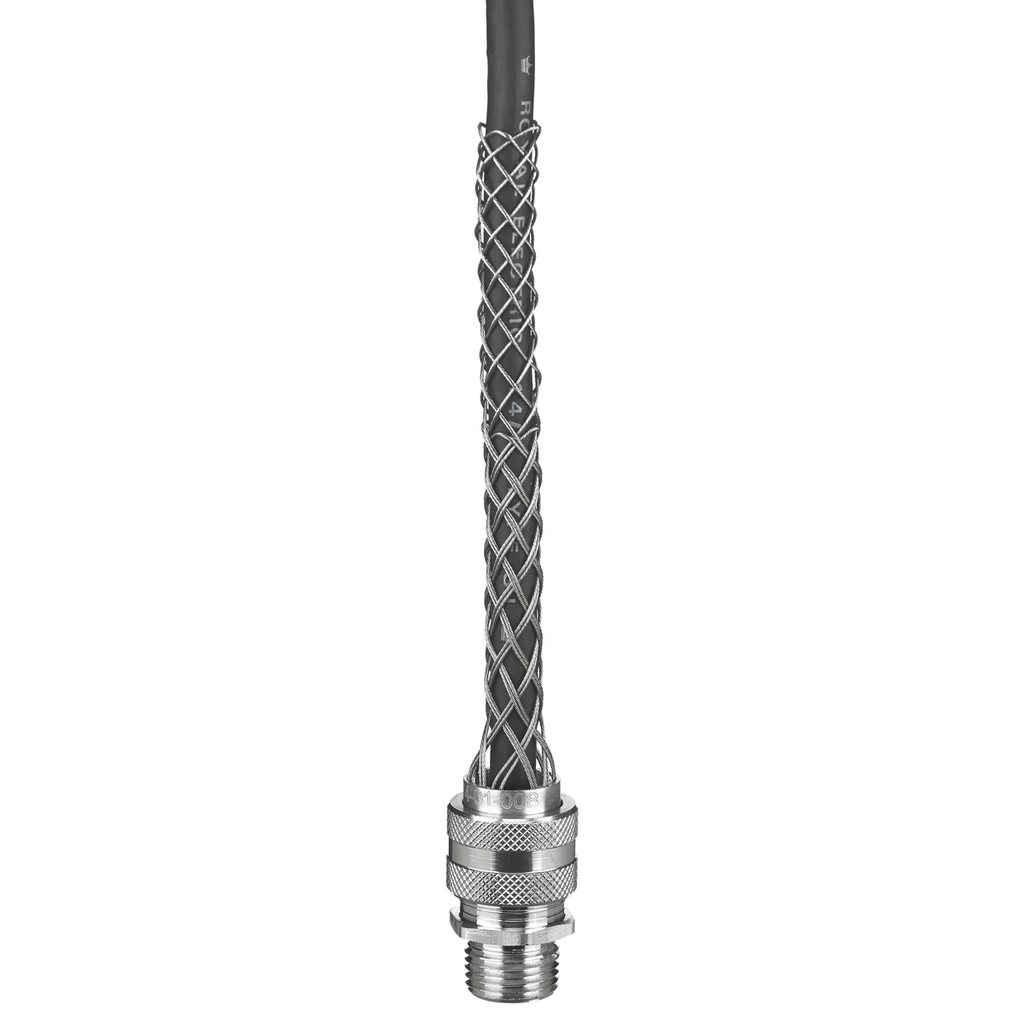

Kellems Wire Management Deluxe Cord Grips - Straight Male with Mesh
The Kellems Deluxe Cord Grips provide secure and durable wire management solutions designed for electrical distributors and switchgear suppliers. This product features a straight male form 7 design with a conductor grip range of 1.812-1.937 inches (4.60-4.92 mm), suitable for single conductor cables. Constructed with aluminum fittings and stainless steel mesh, it offers robust protection and strain relief for insulated cables, ideal for demanding industrial and lighting solutions applications.
Specifications
- Application: Straight Male - Form 7
- Conductor Range: 1.812-1.937 in (4.60-4.92 mm)
- Material: Aluminum Fittings, Stainless Steel Mesh
- Color: Metallic
- Mounting: Locknut or Tapped Opening
- Width: 4.200 in
- Product Weight: 2.1310 lbs
- Number of Conductors: Single
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: 074011261
- Country of Origin: United States
- Made in USA: Yes
- Environmental Conditions: Suitable for use in wet locations when used with a listed sealing ring between box and fitting
Features
- Deluxe cord grips provide arc of bend control to reduce tension on cables and prevent damage from bending, twisting, or vibration
- Liquidtight design suitable for insulated cables
- Stainless steel mesh ensures durability and corrosion resistance
- Aluminum compression nut and body provide secure cable retention
- Suitable for use in hazardous locations per NEC standards when properly installed
