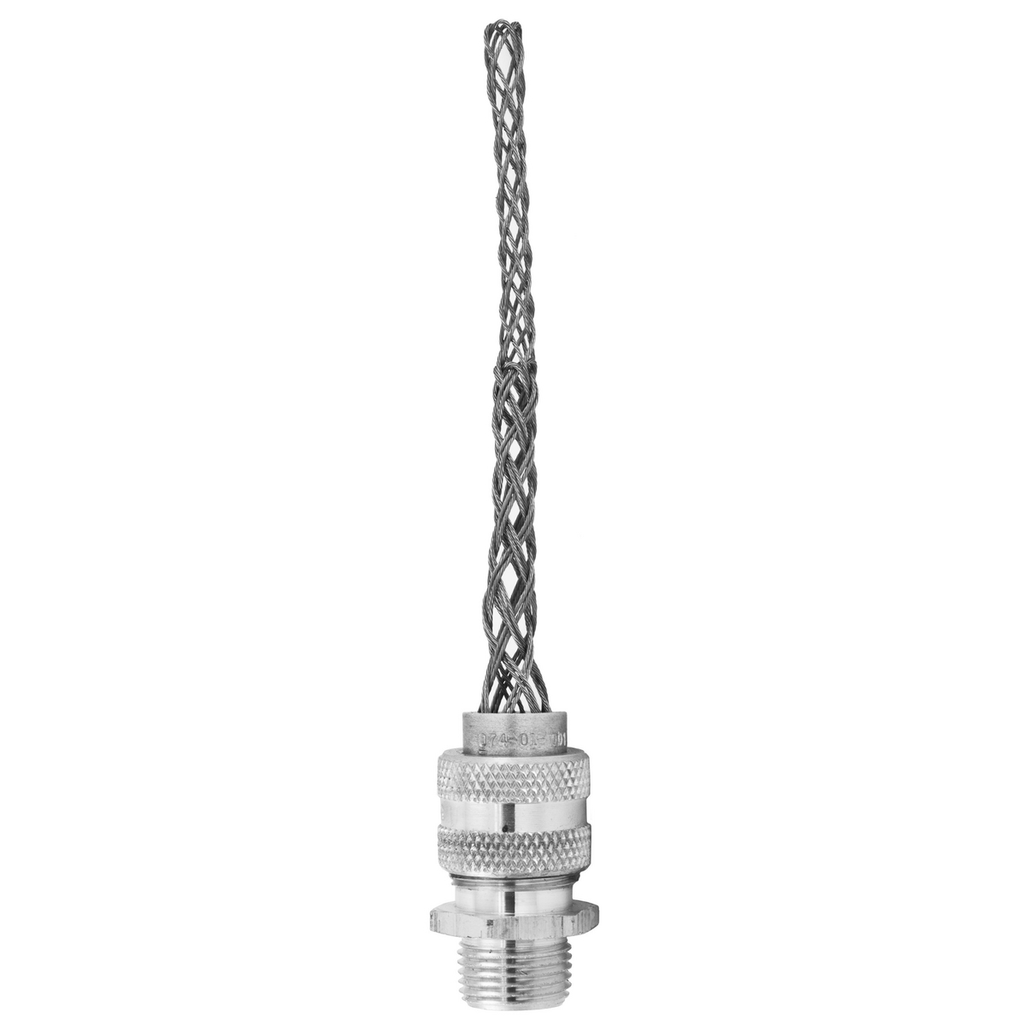

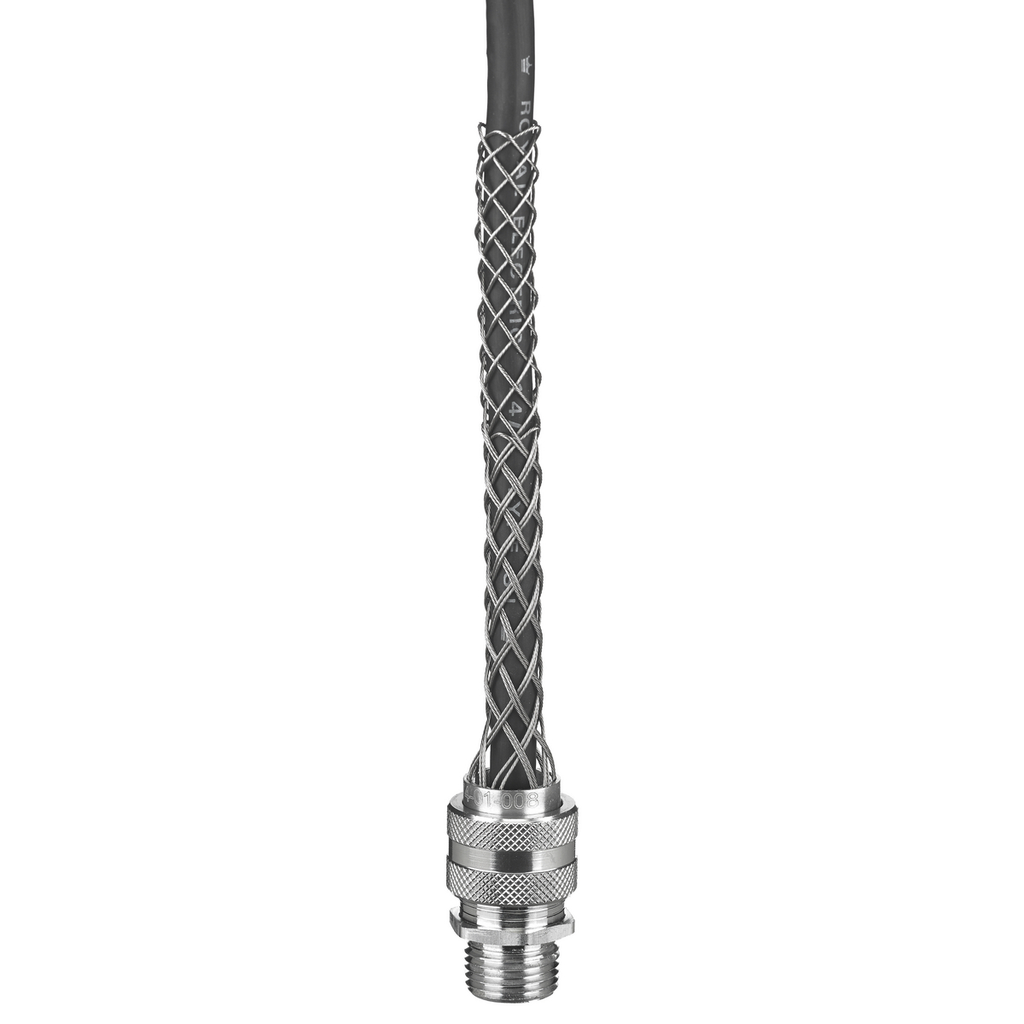

Features

• Stainless steel mesh is corrosion resistant
• Multiweave grip gives cable arc-of-bend control
• Endless weave provides easy cable/flexible conduit installation
• Standard Product

Specifications

• Country of Origin: United States
• Cable Diameter Range: 1.437 in-1.562 in
• Width: 3.270 in
• Each - Width: 3.270 in
• Industry Standard(s): UL Listed
• Performance: Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
• Standards - RoHS Compliance Status: CM
• Application: Straight Male- Form 6
• Conductor Range: 1.437-1.562 in (3.65-3.97 mm)
• Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
• Number of Conductors: Single
• Special Features: Standard Product
• Standard: UL Listed
• Temperature Rating: Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
• Type: Straight Male Thread
• Cable Size: 1.437"-1.562" (3.65-3.97)
• Display Size: 2" NPT
• Number Of Conductors: Single
• Style: For Insulated Cables
• Thread Size: 2" NPT
• Class Code: A52
• Description - Invoice: STR MALE, DCG, 1.4-1.5"; 2" W/MESH
• Freight Class Code: 06168002
• Harmonization Code: 7326200090
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A52A480
• Material - Mounting Hardware: Locknut or Tapped Opening
• Material: Aluminum Fittings, Stainless Steel Mesh
• Series: Deluxe Cord Grips
• Base Unit of Measure: EA
• BOX SIZE: 3.600x18.300x6.400 (in)
• Carton - Gross Weight per Pack: 1.900 lb.
• Carton - Number of Sub Packs: 2
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00783585322148
• Carton - Total Units: 2 EA
• Case - Total Units: 30 EA
• Case Weight: 44.310 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: Yes
