Kellems Wire Management, Deluxe Cord Grips, Straight Male, 1.125-1.250", 1" with Mesh
SKU: #135508
Part: #074011028
UPC: 783585322827
Kellems Wire Management, Deluxe Cord Grips, Straight Male, 1.125-1.250", 1" with Mesh
SKU: #135508
Part: #074011028
UPC: 783585322827
Description

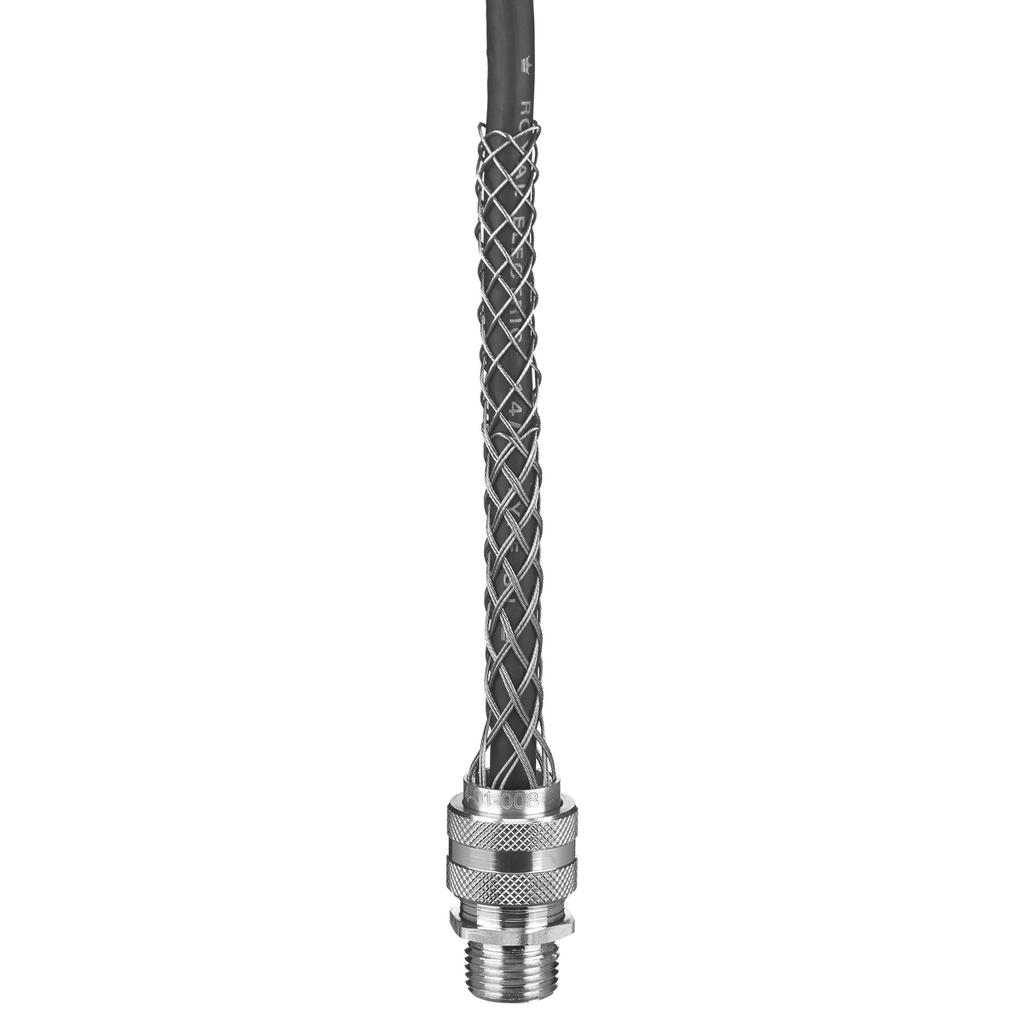

Kellems Wire Management Deluxe Cord Grips - Straight Male, 1.125-1.250" with Mesh
This Kellems Deluxe Cord Grip by Hubbell Wiring Device-Kellems is designed for secure wire management in electrical installations. It is a straight male form 5 cord grip suitable for wire and cable applications requiring reliable strain relief and protection. Ideal for electrical distributors and switchgear suppliers, it supports insulated cables in demanding environments including wet locations when used with a listed sealing ring. The product combines aluminum fittings with stainless steel mesh for durability and corrosion resistance.
Specifications
- Application: Straight Male - Form 5
- Conductor Range: 1.125-1.25 in (2.86-3.17 mm)
- Material: Aluminum Fittings, Stainless Steel Mesh
- Color: Metallic
- Width: 2.310 in
- Mounting: Locknut or Tapped Opening
- Number of Conductors: Single
- Product Weight: 0.4500 lbs
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: 074011028
- Country of Origin: United States
- Made in USA: Yes
- Environmental Conditions: Suitable for use in wet locations when used with a listed sealing ring between box and fitting
Features
- Deluxe cord grip provides arc of bend control to reduce tension on cables
- Prevents damage from bending, twisting, or vibration
- Liquidtight design suitable for insulated cables
- Constructed with corrosion-resistant aluminum and stainless steel mesh
- Compatible with locknut or tapped opening mounting methods
- Suitable for hazardous locations per National Electric Code classifications
