Features

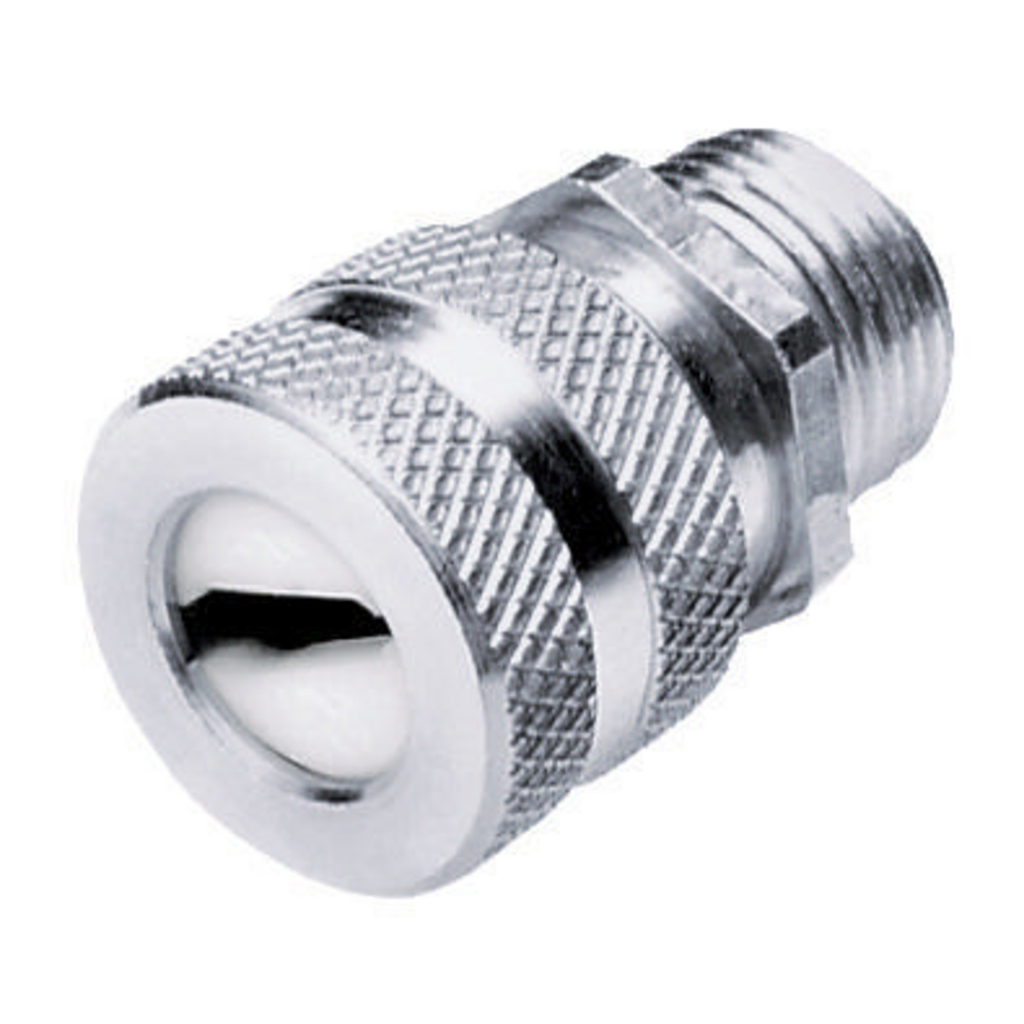

• Machined aluminum underground feeder connector
• Standard Product

Specifications

• Country of Origin: United States
• Width: 5.600 in
• Each - Width: 5.600 in
• Hub Size: 1/2 "
• Industry Standard(s): UL Listed
• Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
• Standards - RoHS Compliance Status: CM
• Application: Straight Male
• Conductor Range: 0.2 x .4 in Min, 0.25 in x 0.55 in Max
• Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
• NEMA Rating: IP66
• Number of Conductors: Single
• Special Features: Standard Product
• Standard: UL Listed
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Type: Underground Feeder
• Display Size: 1/2" NPT
• Nema Rating: IP66
• Number Of Conductors: Single
• Class Code: A52
• Description - Invoice: UGRD FEED CONN, .20"-.40"; 1/2"; ALU
• Freight Class Code: 06168002
• Harmonization Code: 7616995190
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A52A490
• Material - Mounting Hardware: Locknut or Tapped Opening
• Cord Diameter: 0.2x0.4 - 0.25x0.55 in
• Material: Aluminum
• Series: Standard Duty
• Base Unit of Measure: EA
• BOX SIZE: 5.000x8.300x5.500 (in)
• Carton - Gross Weight per Pack: 4 lb.
• Carton - Number of Sub Packs: 50
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585207513
• Carton - Total Units: 50 EA
• Case - Total Units: 450 EA
• Case Weight: 13.572 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 43.500 in
• Pallet Length: 48.000 in
• Pallet Weight: 1373.750 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
