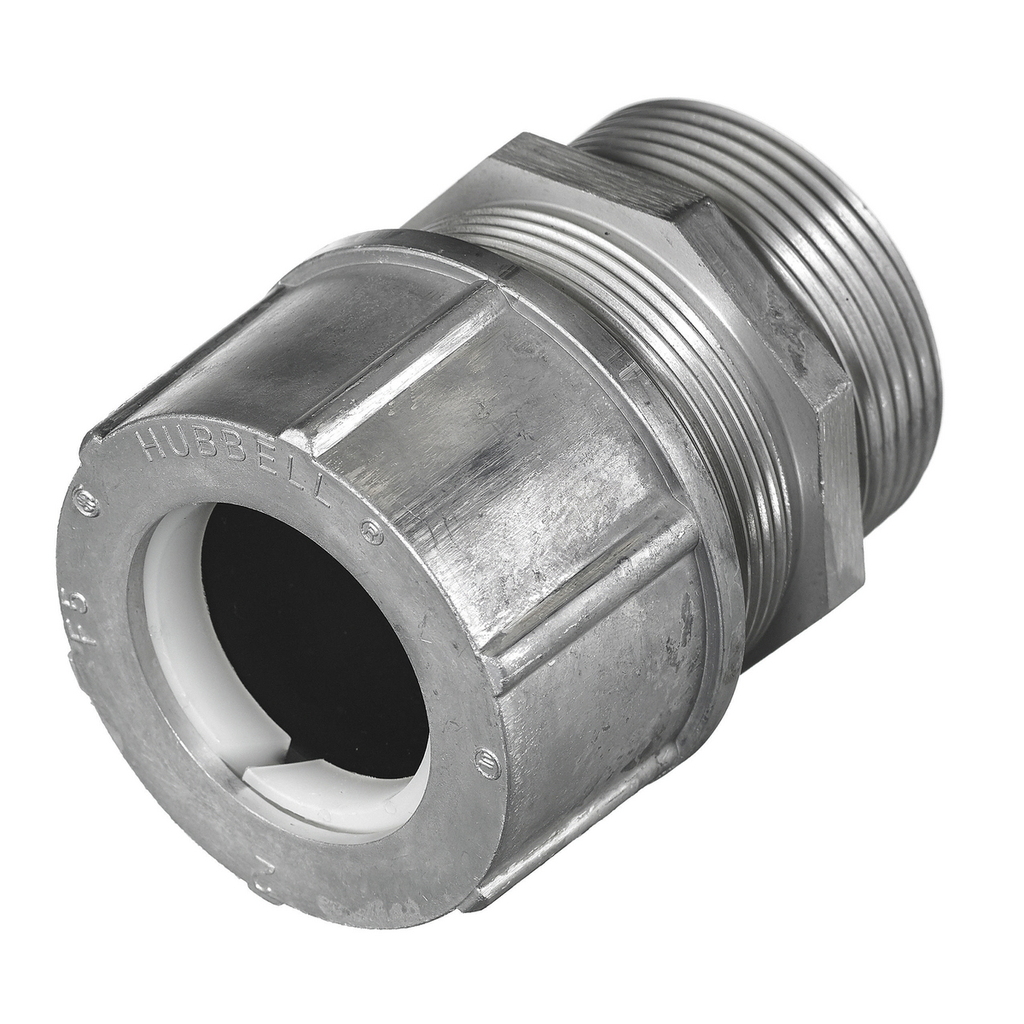

Kellems Wire Management Cord Connectors - Straight Male Aluminum

This Kellems Wire Management cord connector is a straight male type designed for wire and cable applications requiring secure and reliable connections. Manufactured by Hubbell Wiring Device-Kellems, it is suitable for electrical distributors and lighting solutions needing durable cord connectors with precise fit and environmental protection. The connector features a cast aluminum construction with machined threads and is compatible with locknut or tapped opening mounting methods.

Specifications

• Application: Straight Male - Form 5
• Material: Cast Aluminum
• Finish: Machined
• Color: Metallic
• Hub Size: 1 1/2 inches
• Conductor Range: 1.25-1.38 in (31.7-34.9 mm)
• Number of Conductors: Single
• Width: 2.220 in
• Product Weight: 1.3160 lbs
• NEMA Rating: NEMA Type 4, 4X, 12 and 13
• Mounting: Locknut or Tapped Opening
• Environmental Conditions: Suitable for use in wet locations when used with a listed nylon washer between box and fitting
• Temperature Rating: -30°F to +225°F (-34°C to +107°C)
• Standards: UL Listed, RoHS Compliant
• Country of Origin: China
• Manufacturer Part #: SHC1059

Features

• One-piece cast aluminum construction with machined threads for durability and precision
• Compatible with locknuts sold separately for secure installation
• UL514B tray cable rated for dry locations
• Suitable for hazardous locations per NEC Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
