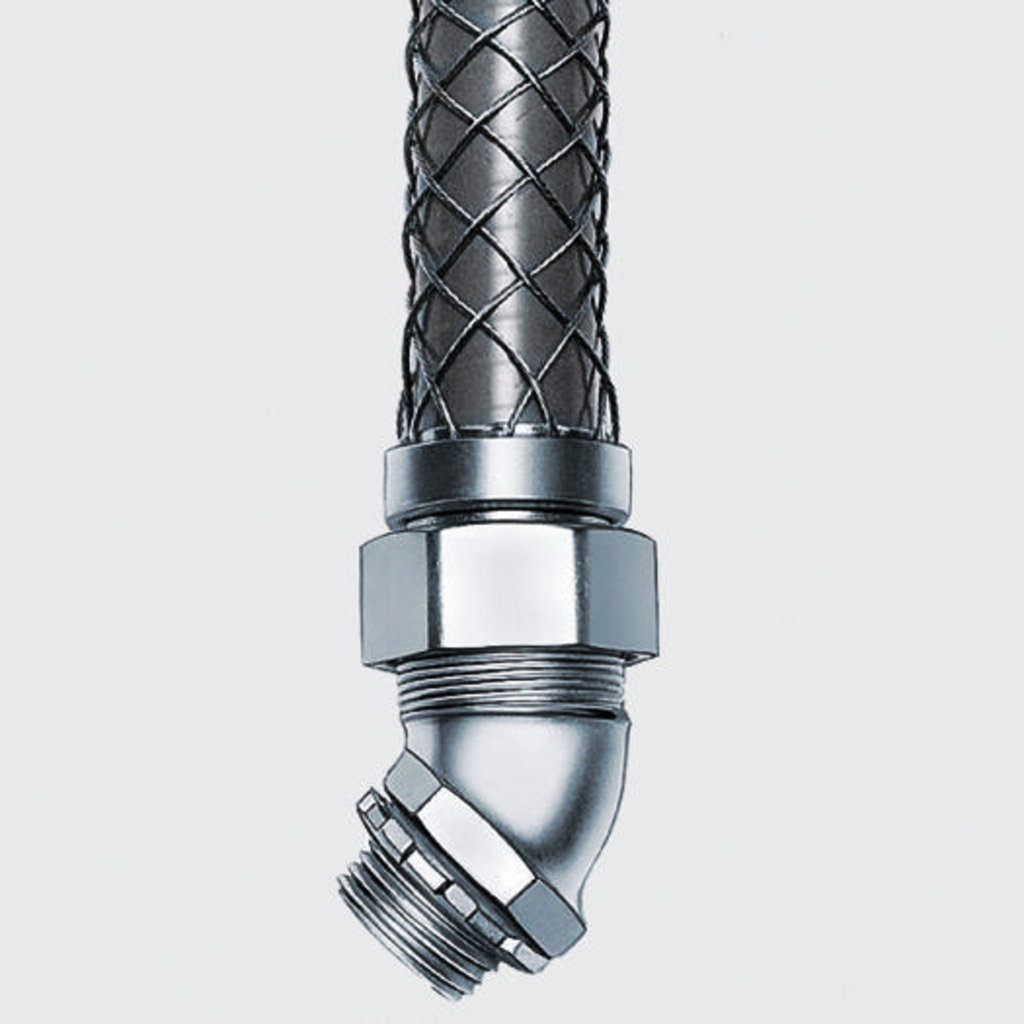

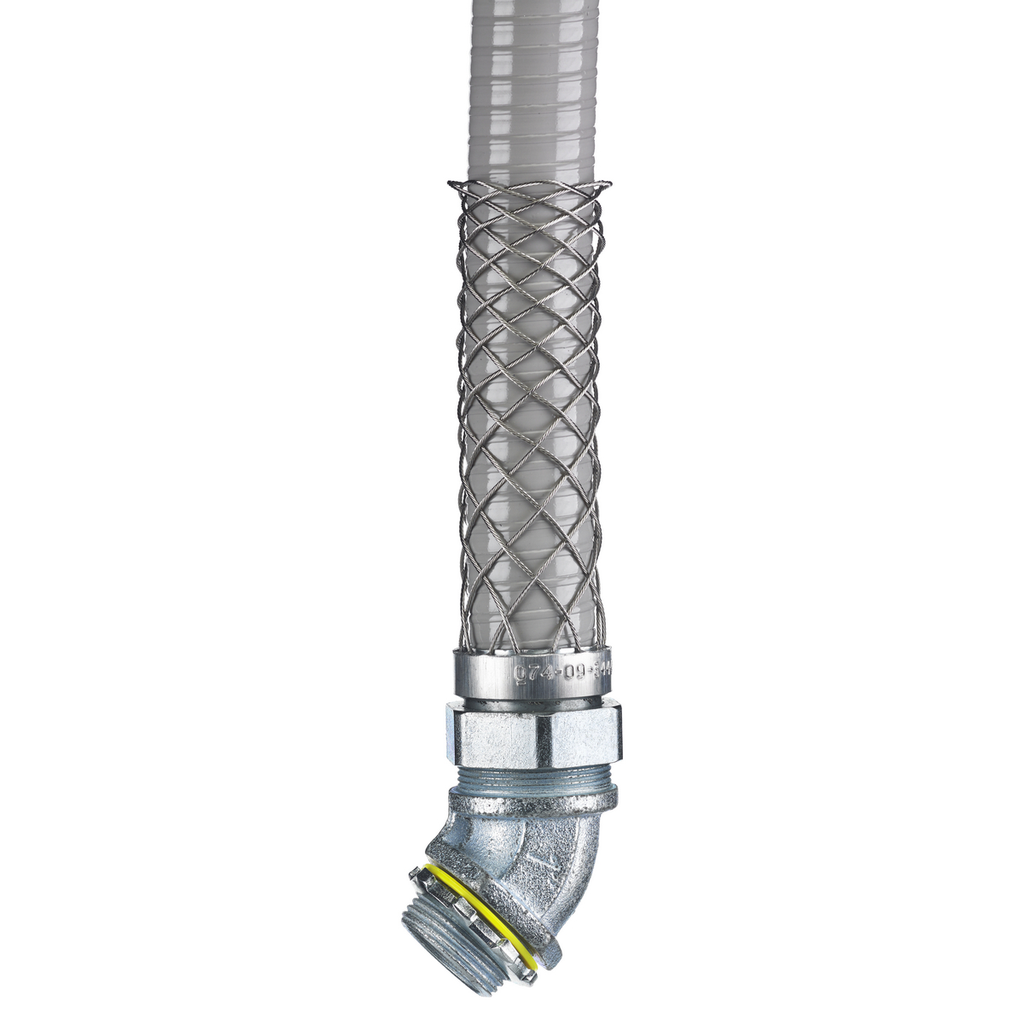

Kellems® Liquidtight System, 45°, 1" Non-Insulated with Mesh – Wire Management Solutions

The Kellems® Liquidtight System, 45°, 1" Non-Insulated with Mesh is a robust wire management fitting designed for use between enclosure and conduit. Manufactured by Hubbell Wiring Device-Kellems, this steel fitting with stainless steel mesh provides mechanical protection and strain relief for flexible conduits in demanding electrical applications. It is suitable for electrical distributors and wire and cable management in industrial environments requiring reliable liquidtight connections, including hazardous and wet locations.

Specifications

• Application: 45 Degree Male
• Material: Steel Fitting, Stainless Steel Mesh
• Color: Metallic
• Connection: Cap Nut
• Width: 3.000 in
• Product Weight: 0.6000 lbs
• Mounting: Between Enclosure and Conduit
• NEMA Rating: Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
• Environmental Conditions: Suitable for use in wet locations when a listed sealing ring is used between box and fitting
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: 074093444
• UPC: 783585331836

Features

• Prevents conduit pullout and damage at fittings
• Provides strain relief with stainless steel mesh for durability and corrosion resistance
• Designed to maintain liquidtight integrity in wet and hazardous environments
• Constructed to withstand temperatures from -30°F to +225°F (-34°C to +107°C)
• Complies with UL 94-HB and UL 94-V2 flammability standards
• Suitable for use in Class I, Division 2; Class II, Division 1 & 2; and Class III, Division 1 & 2 hazardous locations
