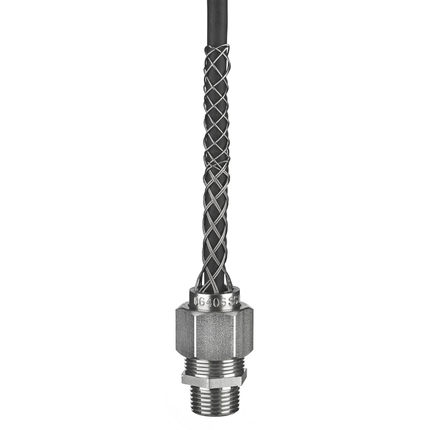

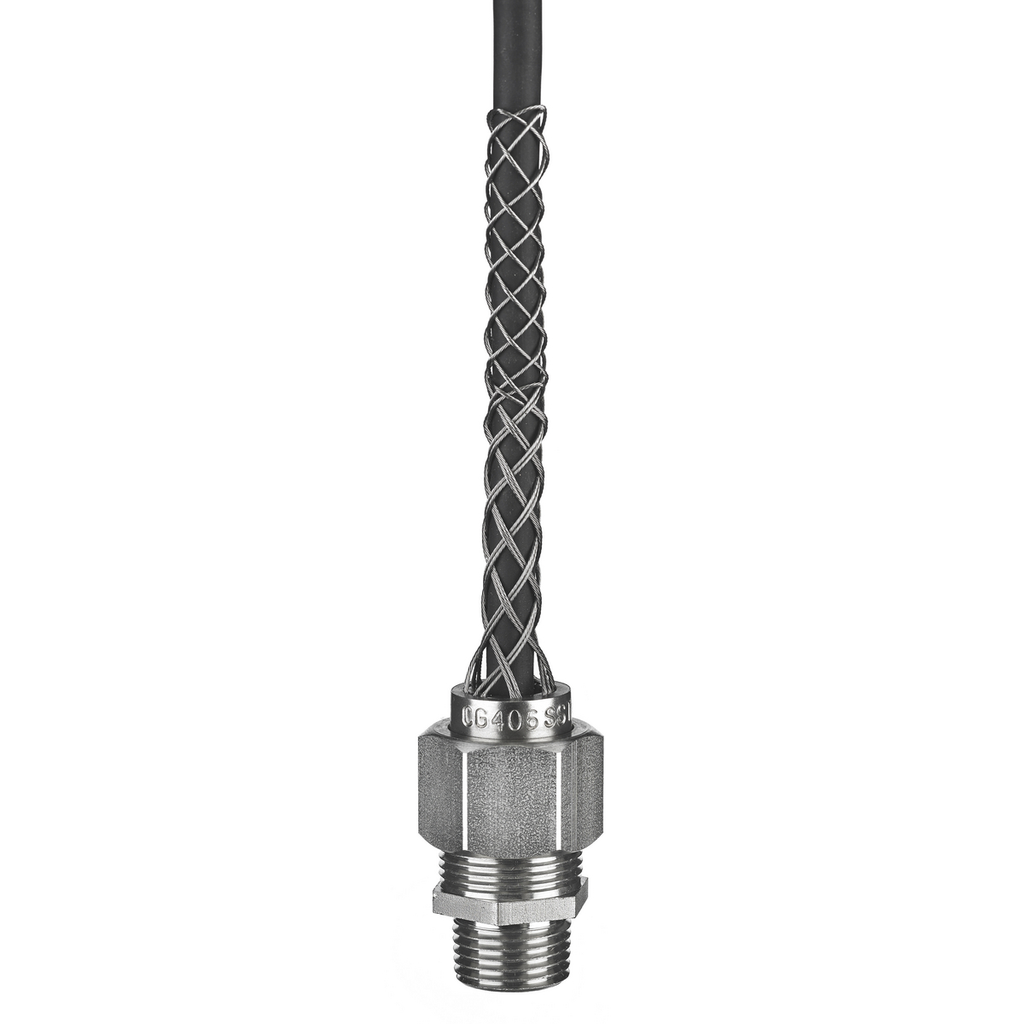

Kellems® Deluxe Cord Grip, Straight Male, .500-.625" with Mesh – Stainless Steel Wire and Cable Solutions

The Kellems® Deluxe Cord Grip, model CG810SST, is a straight male cord grip designed for secure wire and cable management in industrial and hazardous environments. Constructed with stainless steel fittings and mesh, it offers corrosion resistance and durability suitable for electrical distributors and switchgear suppliers requiring reliable strain relief solutions. This product is intended for use with single conductors within a .500 to .625 inch (1.27-1.59 mm) conductor range and can be mounted via locknut or tapped opening.

Specifications

• Application: Straight Male - Form 4
• Material: Stainless Steel Fittings, Stainless Steel Mesh
• Color: Metallic
• Width: 2.5 in
• Conductor Range: 0.5-0.625 in (1.27-1.59 mm)
• Number of Conductors: Single
• Mounting: Locknut or Tapped Opening
• Product Weight: 0.75 lb
• Environmental Conditions: Suitable for use in wet locations when used with a listed sealing ring between box and fitting
• Operating Temperature Range: –30°F to +240°F (–34°C to +115°C)
• Country of Origin: Puerto Rico
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part Number: CG810SST

Features

• Nylon fitting for secure attachment
• Corrosion-resistant stainless steel mesh
• Oil and watertight neoprene bushing
• UL Listed and CSA Certified for hazardous locations per NEC Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
• Suitable for indoor/outdoor use
