Kellems® Deluxe Cord Grip, Straight Male, .375-.500", ½" with Mesh
SKU: #138481
Part: #CG408SST
UPC: 783585334530
Kellems® Deluxe Cord Grip, Straight Male, .375-.500", ½" with Mesh
SKU: #138481
Part: #CG408SST
UPC: 783585334530
Description

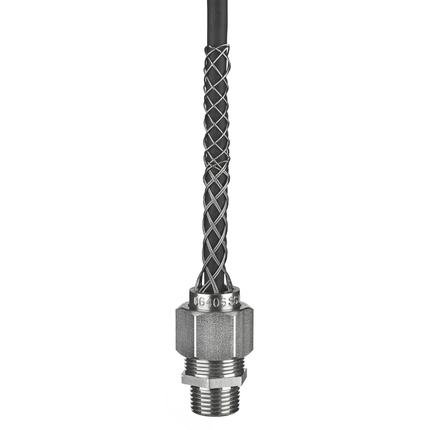

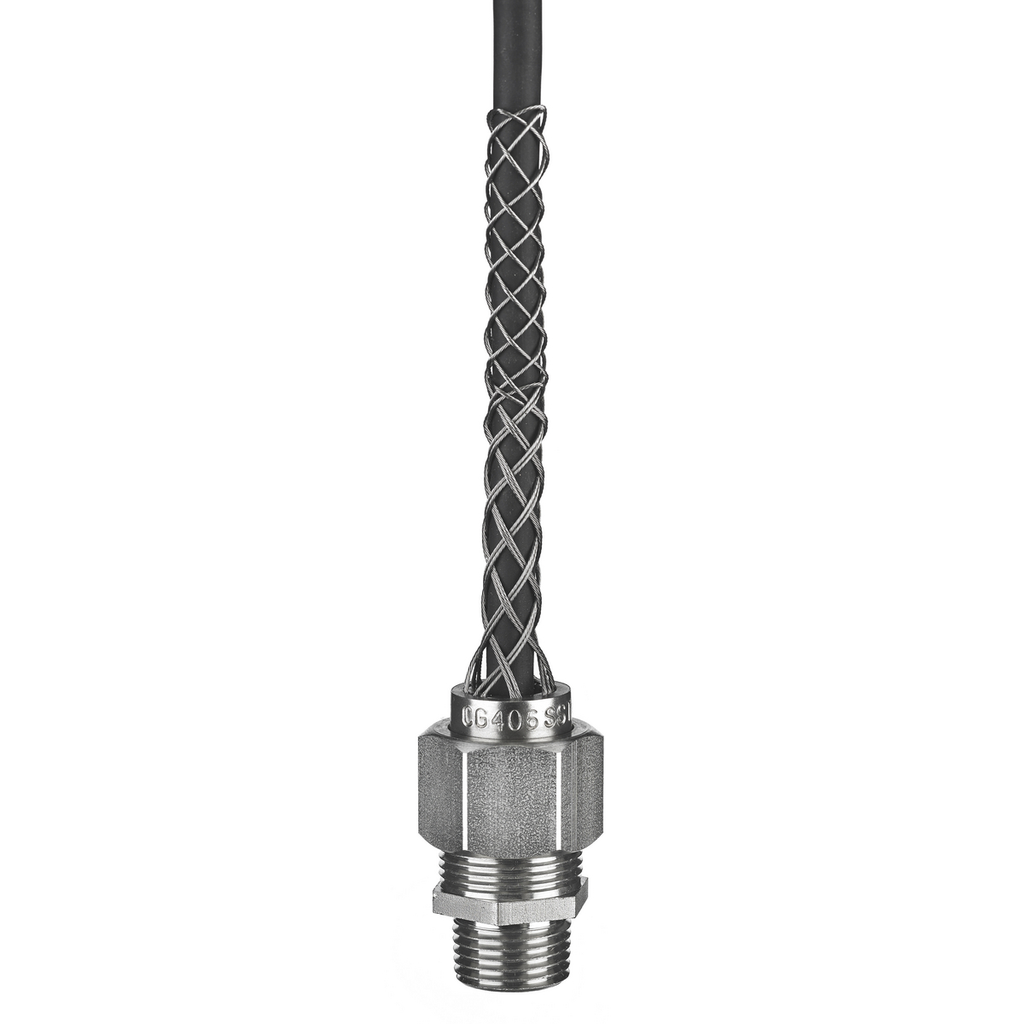

Kellems® Deluxe Cord Grip, Straight Male, .375-.500" with Mesh – Stainless Steel Cord Grip
The Kellems® Deluxe Cord Grip, Straight Male, .375-.500" with Mesh is designed for secure wire and cable management in electrical installations. Manufactured by Hubbell Wiring Device-Kellems, this stainless steel cord grip provides reliable strain relief and protection for insulated cables. It is suitable for use by electrical distributors and switchgear suppliers requiring durable fittings for wet and hazardous locations when installed with a listed sealing ring. The product supports single conductor cables within the specified conductor range and is ideal for applications requiring corrosion resistance and environmental protection.
Specifications
- Application: Straight Male- Form 2
- Conductor Range: 0.375-0.5 in (.95-1.27 mm)
- Material: Stainless Steel Fittings, Stainless Steel Mesh
- Color: Metallic
- Width: 1.300 in
- Mounting: Locknut or Tapped Opening
- Number of Conductors: Single
- Product Weight: 0.2500 lbs
- Country of Origin: Puerto Rico
- Manufacturer Part #: CG408SST
- Environmental Conditions: Suitable for use in wet locations when used with a listed sealing ring between box and fitting
Features
- Nylon fitting for secure installation
- Corrosion-resistant stainless steel mesh
- Oil and watertight neoprene bushing
- UL Listed for indoor and outdoor use
- Suitable for hazardous locations per NEC Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
- Operating temperature range: –30°F to +240°F (–34°C to +115°C)
